Sumake ADPN48 Original Instructions Manual

Sumake ADPN48 Original Instructions Manual

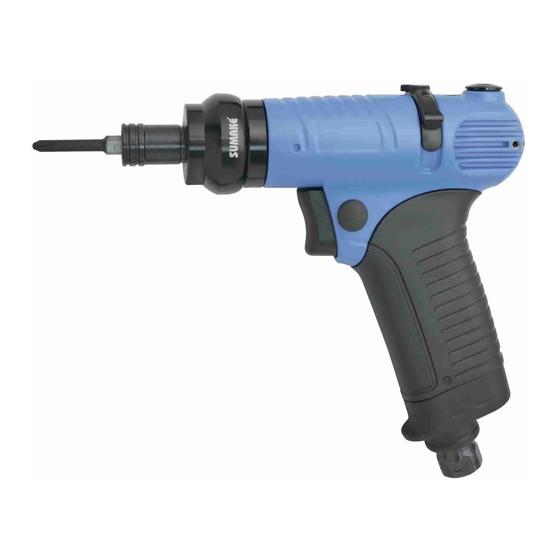

Trigger start direct air screwdriver (alu.)

Advertisement

Quick Links

SUMAKE

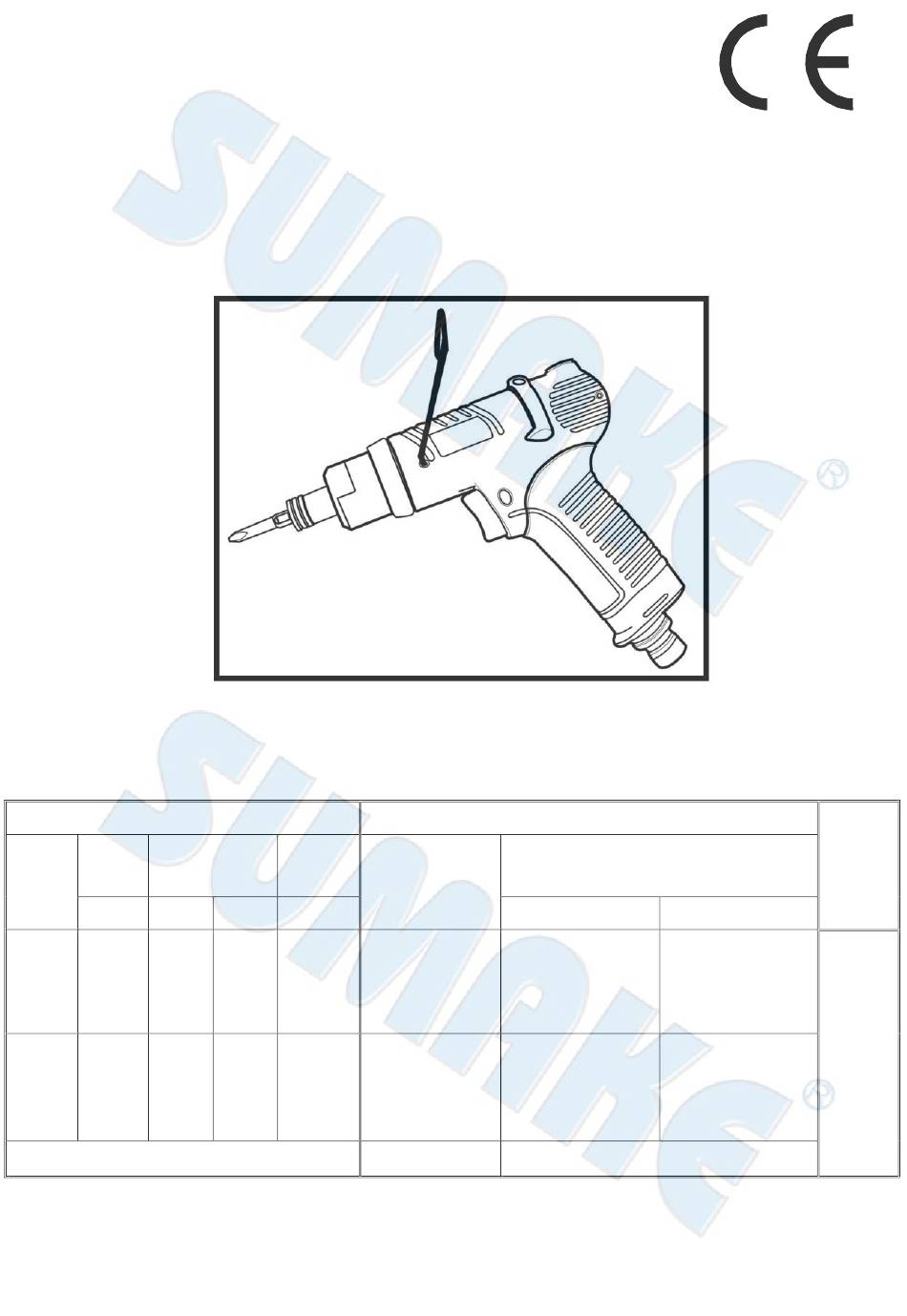

Trigger Start Direct Air Screwdriver (Alu.)
Specification:
Free
Torque range
Speed
(Hard Joint)
MODEL
r/min
Nm
ADPN48
1700
7.0
ADPN58
750
13.0
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Min. air
Vibration
hose bore
EN ISO 28927-2
Ft-lb
mm
5.0
8.0
No Load: 0.8 m/s² No Load: 76.0 dB(A) No Load: 87.0 dB(A)
9.6
8.0
No Load: 1.0 m/s² No Load: 76.0 dB(A) No Load: 87.0 dB(A)
Uncertainty K= 1.5 m/s²
Noise and Vibration:
Noise
EN ISO 15744
Sound pressure level
Sound power level
Uncertainty K= 3Db
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
ADPN48(58)-S-2111E-MIF

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADPN48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ADPN48

  • Page 1 No Load: 1.0 m/s² No Load: 76.0 dB(A) No Load: 87.0 dB(A) to risk of impaired hearing! Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 1.5 m/s² Uncertainty K= 3Db ADPN48(58)-S-2111E-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) Model/ Serial No.: ADPN48(58) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
  • Page 4 ADPN58 TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) ADPN58-P-2012C-MI...
  • Page 5: Parts List

    ADPN58 TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2034 Pistol Housing (Sky Blue) 1S2061 Internal Gear 7Q2008 O Ring 7S2010 Ball Bearing 2C2003 Blank Cap 35-1 7S2008 Ball Bearing 7Q2007 O Ring 5A5355 Clutch Housing 7Q6112...
  • Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
  • Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
