Sumake CS39 Operation Manual

Sumake CS39 Operation Manual

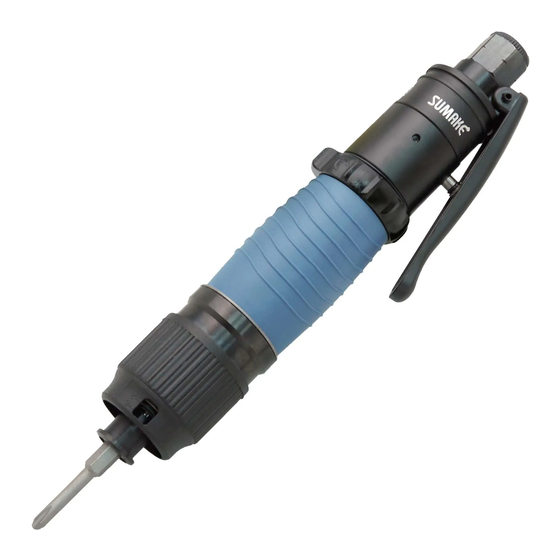

Straight-cushion type air screwdriver

Advertisement

Quick Links

SUMAKE
Straight-Cushion Type Air Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
No Load: 1.4 m/s 2
CS39
No Load: 1.4 m/s 2
CS45
No Load: 1.7 m/s 2
CS48
No Load: 1.7 m/s 2
CS58
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 72.0 dB(A)
No Load: 72.0 dB(A)
No Load: 73.8 dB(A)
No Load: 73.8 dB(A)
Uncertainty K= 3dB
Sound power level
No Load: 83.0 dB(A)
No Load: 83.0 dB(A)
No Load: 84.8 dB(A)
No Load: 84.8 dB(A)
Safety Instructions
Warning
Read this manual and
1-
understand all safety
instructions before
operation the tool.
Wear an approved
2-
ear-protector and gloves
while operating tool.
CS39(45)(48)(58)-S-2301H-MIF

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake CS39

  • Page 1 No Load: 73.8 dB(A) No Load: 84.8 dB(A) while operating tool. No Load: 1.7 m/s 2 CS58 No Load: 73.8 dB(A) No Load: 84.8 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CS39(45)(48)(58)-S-2301H-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 2: Ec Declaration Of Conformity

    4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: STRAIGHT-CUSHION TYPE AIR SCREWDRIVER Model/ Serial No.: CS39(45)(48)(58) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3: Air Supply

    Model Free Weight O.A.L Dia. Fastening Min. air Max. Torque Speed Capacity hose bore Consumption (Hard Joint) r.p.m. m³/min CS39 1,600 2.5-5 0.28 CS45 2.5-7 0.28 CS48 1,700 0.84 0.55 CS58 0.84 0.55 OPERATIONS 1. Precision adjustment has been made around case, gear and rotating section.
  • Page 4 CS48 STRAIGHT-CUSHION TYPE AIR SCREWDRIVER (PULL) CS48-P-2110B5-MI...
  • Page 5: Parts List

    CS48 STRAIGHT-CUSHION TYPE AIR SCREWDRIVER (PULL) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 1P6062 Front Plate 5A2002 Lever Set 7S2102 Ball 7S2202 Roll pin 7S2011 Ball Bearing 5L6102 Lever 1S3050 Connect 6N2105 Spring 1P2271 21T Main Gear 7S2103 Ball 1P2102...
  • Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
  • Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.

This manual is also suitable for:

Cs45Cs48Cs58
