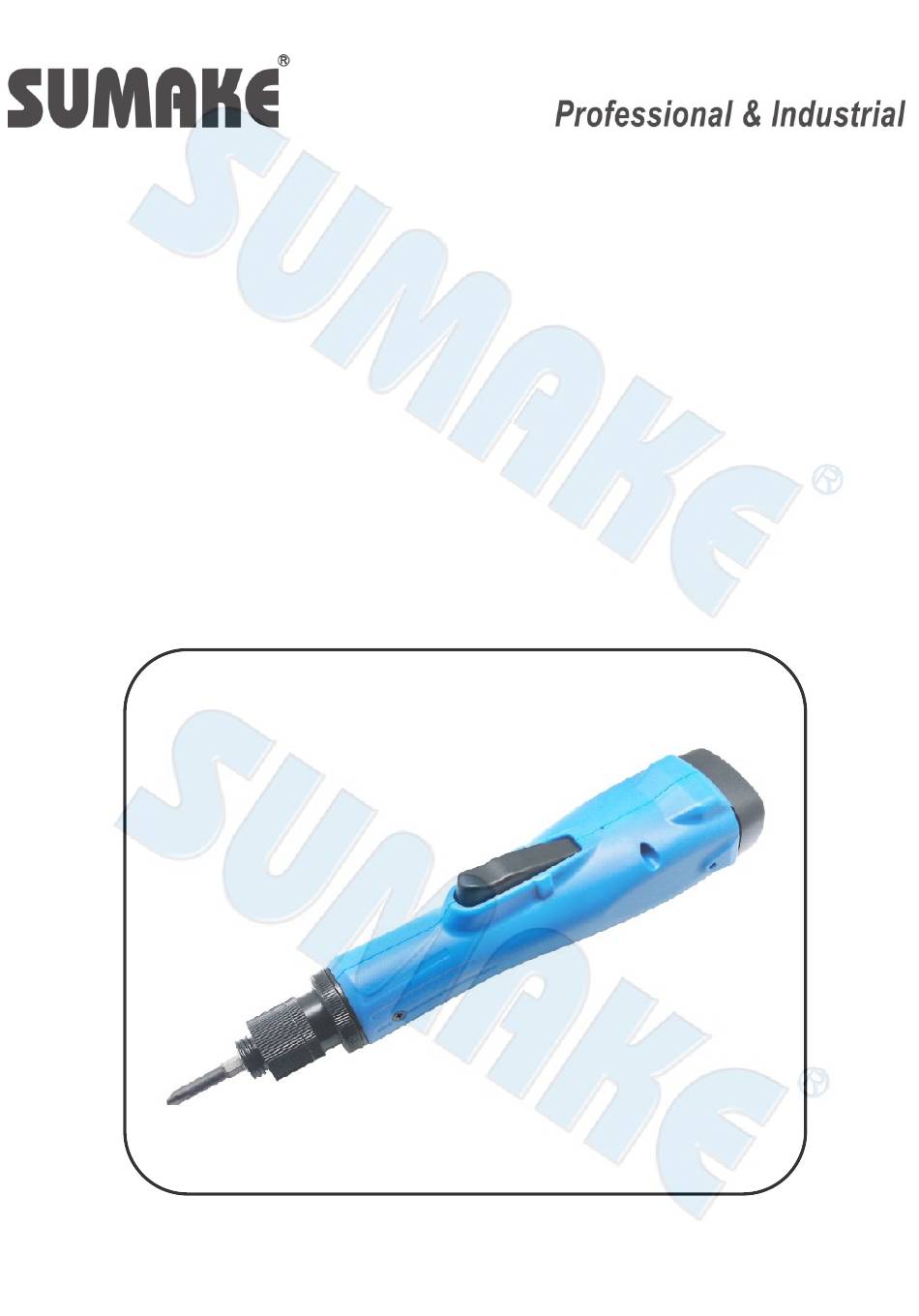

- Page 1 OPERATION AND MAINTENANCE MANUAL ES-BS0705 ITEM NO.: ES-BS0712 ES-BS0712LS1 7.2V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-BS07-I-I-2207B-K2...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance Icon Instructions 1. - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. SUMAKE is not responsible for any personal injury that might cause of disobeying the safety advices.
- Page 4 Operating Instructions Charge the battery in the charging station before first use to make sure operates at its highest capacity. To ensure operators against injuries, release the Forward/Reverse lever as arrow showing below into a center position to have trigger locked before start or disassemble the device. Forward / Reverse Follow belw steps to correctly install &...
-
Page 5: Function / Operating Introduction
Function / Operating Introduction Function Name Table Description Description Trigger Switch Torque Fixing Ring/Coupler Forward/Reverse Lever S Waist Hook Bit Sleeve OK/NG/Power/Hi&Lo Indicating Light Torque Fixing Ring battery... -
Page 6: Manual / Function
Lo for slowest rotation. It's possible that the uncompleted shut-off occurs when the switch is setup to Lo and the presetting torque is more than 50% of torque range. Please refer to the following table. Lo Switch Shut-off ES-BS0705 ES-BS0712 ES-BS0712LS1 0.25( N.m )↓... - Page 7 (5) Coupler 5-1 Coupler: Fixed upside-underside housing and clutch. Coupler (6) Driver Hook It is convenient for the production lines efficiently to have spring balancers to work together with the tools to be more. (7) OK/NG/Power/Hi&Lo Indicating Light Explanation Protection Explanation: The indicating LEDS will show Hi/Lo when push Forward/Reverse lever to the middle position.
-
Page 8: Other Cautions
SUMAKE is not responsible for any poor performance or damage caused by customers own modification of the tool. It is necessary for the management to have every operator to read and follow all instructions in this manual. Do not attempt to repair or disassemble this cordless screwdriver themselves. -
Page 9: Specifications
Specifications ES-BS0712 ES-BS0712LS1 ES-BS0705 MODEL DC 10.8V INPUT VOLTAGE(DC) 0.2-1.2 0.2-1.2 0.1-0.5 hard joints TORQUE (N.m) 0.2-0.96 0.2-0.96 0.1-0.4 soft joints 80%↓ ±3% Torque accuracy (%) Stepless Torque adjustment 1.0s ON 3.0s OFF Duty cycle 1000 1000 Unloaded Speed (min )±10%... -
Page 10: Torque Adjustment Operation
Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows : Determine the torque output of the tool by checking a tightened fastener with a torque wrench. Increase or decrease the torque by rotating torque Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output. -
Page 11: Eu Declaration Of Conformity (Doc)
EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER Model/ Serial No.： ES-BS0712, ES-BS0712LS1 The object of the declaration described above is in conformity with the relevant union harmonization legislation: ... - Page 12 ES-BS0705 BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-BS0705-P-2302A-K2...
- Page 13 Gear Housing For Hex. 6.35mm-B9.5 EPCBB00019 Housing-Underside EPGK20247 "C" Ring EPCBB00019-3 Housing-Underside (ESD) EPGI20252 Iron Washer EPCI50212-15 Forward/Reverse Lever For ES-BS0705 EPGH20241 Planet Gear For ES-BS0705 EPEG31421-10F Pcb-Changeover EPGG20271 Gear Seat For ES-BS0705 EPC50220-1 Led Light Cover (Limpid) EPG20101 Central Gear EPEG31438-9 Indication Light P.C.B.
- Page 14 ES-BS0712, ES-BS0712LS1 BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-BS0712(LS1)-P-2302A-K2...
- Page 15 ES-BS0712, ES-BS0712LS1 BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty EPCJ20012-3 Suspension Hook EPGZPTA12002-3B Gear Housing For ES-BS0712LS1 Hex. 6.35mm (Opt.) EPCBB00019 Housing-Underside EPGZPTA12002-3B9.5 Gear Housing For ES-BS0712LS1 Hex. 6.35mm-B9.5 EPCBB00019-3 Housing-Underside (ESD) EPGK20247 "C"...
- Page 16 NOTE www.SUMAKE.com www.aircompressors.com.tw...
