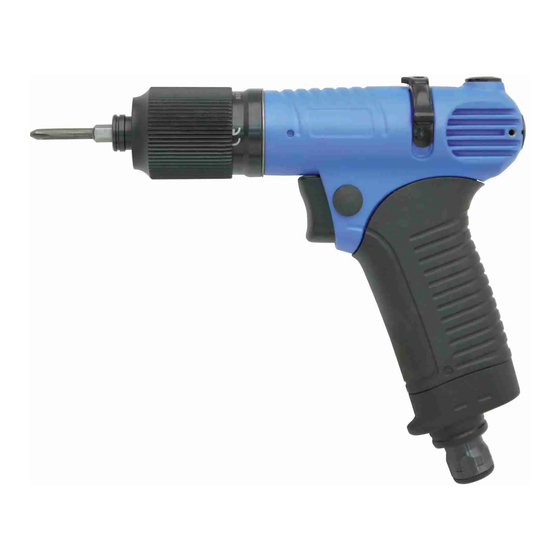

Push Or Push And Trigger To Start Cushion

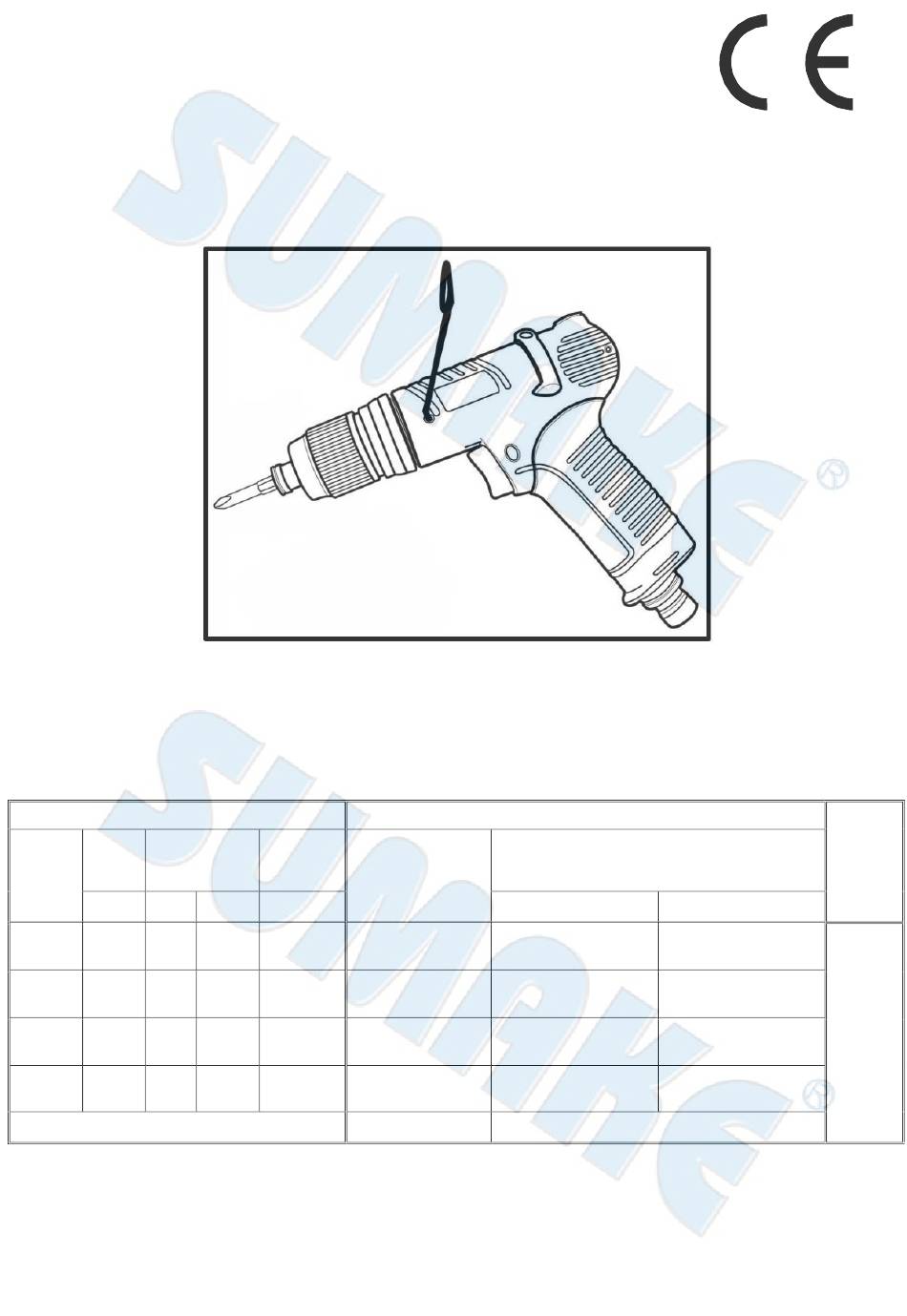

Specification:
Free
Torque range
(Hard Joint)
Speed
MODEL
r/min
Nm
1700
7.0
ACPN48
750
13
ACPN58
350
9
ACPN62
750
13
ACPN158
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
Air Screwdriver (Alu.)
Min. air
hose bore
EN ISO 28927-2
Kgf-cm
mm
70
5.0
No Load: 0.5 m/s²
130
5.0
No Load: 0.5 m/s²
90
5.0
No Load: 0.2 m/s²
130
5.0
No Load: 0.2 m/s²
Uncertainty K= 1.5 m/s²
Noise and Vibration:
Vibration
Sound pressure level
No Load: 76.5 dB(A)
No Load: 77.7 dB(A)
No Load: 77.7 dB(A)
No Load: 78.7 dB(A)
Noise
EN ISO 15744
Sound power level
No Load: 87.5 dB(A)
No Load: 88.7 dB(A)
No Load: 88.7 dB(A)
No Load: 89.7 dB(A)
Uncertainty K= 3dB
ACPN48(58)(62)(158)-S-2111H-MIF
Remark
Please
always wear
ear protector
at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
