SUMAKE
Push Or Push And Trigger To

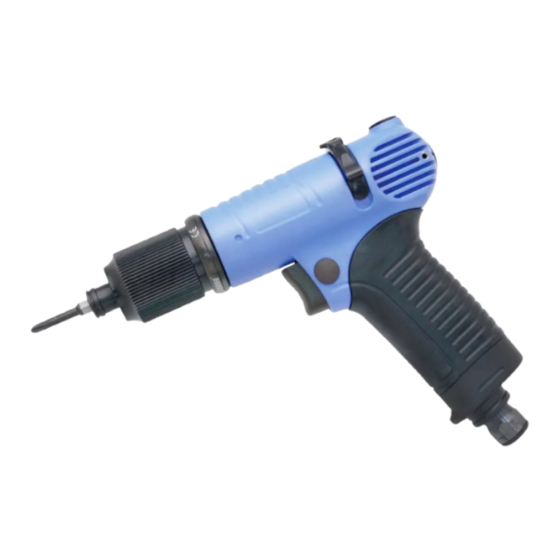

Start Cushion Air Screwdriver (Alu.)
Specification:
Free
Torque range
(Hard Joint)
Speed
MODEL
r/min
Nm
1700
7.0
ACP48
750
13
ACP58
350
9
ACP62
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
Min. air
hose bore
EN ISO 28927-2
Kgf-cm
mm
70
5.0
No Load: 0.5 m/s²
130
5.0
No Load: 0.5 m/s²
90
5.0
No Load: 0.2 m/s²
Uncertainty K= 1.5 m/s²
Noise and Vibration:
Vibration
Sound pressure level
No Load: 76.5 dB(A)
No Load: 77.7 dB(A)
No Load: 77.7 dB(A)
Noise
EN ISO 15744
Sound power level
No Load: 87.5 dB(A)
No Load: 88.7 dB(A)
No Load: 88.7 dB(A)
Uncertainty K= 3dB
ACP48(58)(62)-S-2111F-MIF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ACP48
Summary of Contents for Sumake ACP48
- Page 1 No Load: 0.2 m/s² No Load: 77.7 dB(A) No Load: 88.7 dB(A) ACP62 impaired hearing! Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 1.5 m/s² Uncertainty K= 3dB ACP48(58)(62)-S-2111F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：PUSH OR PUSH AND TRIGGER TO START CUSHION AIR SCREWDRIVER (ALU.) Model/ Serial No.： ACP48(58)(62) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
- Page 4 ACP58 PUSH OR PUSH AND TRIGGER TO START CUSHION AIR SCREWDRIVER (ALU.) ACP58-P-2207A-MI...
-
Page 5: Parts List
ACP58 PUSH OR PUSH AND TRIGGER TO START CUSHION AIR SCREWDRIVER (ALU.) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2034 Pistol Housing [Sky Blue] 3S5040-1 Anvil 7Q2008 O Ring 37-1 3S2130 Bushing 2C2003 Blank Cap 6N2081 C Ring 7S2106 Screw 7S2105... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
