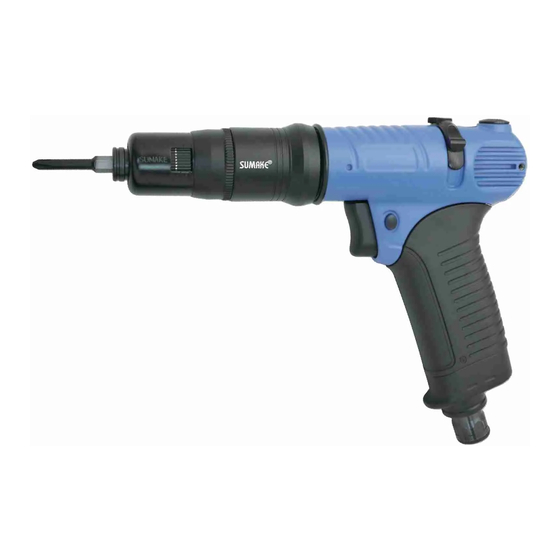

Trigger Start-Shut Off Air Screwdriver (Alu.)
Specification:
Free
Torque range
Speed
MODEL
r/min
Nm
ABP48
2200
1-6
ABP50
1400
1-6
ABP55
1000
1.2-7.5
ABP60
550
3-11
ABP65
300
3-18
ABP68
250
5-28
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
Min. air
hose bore
(±3%)
Kgf-cm
mm
10-60
8.0
10-60
8.0
12-75
8.0
30-110
8.0
30-180
8.0
50-280
8.0
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound pressure level
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A)
Uncertainty K= 1.5 m/s²
Noise
EN ISO 15744
Sound power level
Uncertainty K= 3dB
ABP48(50)(55)(60)(65)(68)-S-2111G-MI
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ABP48
Summary of Contents for Sumake ABP48

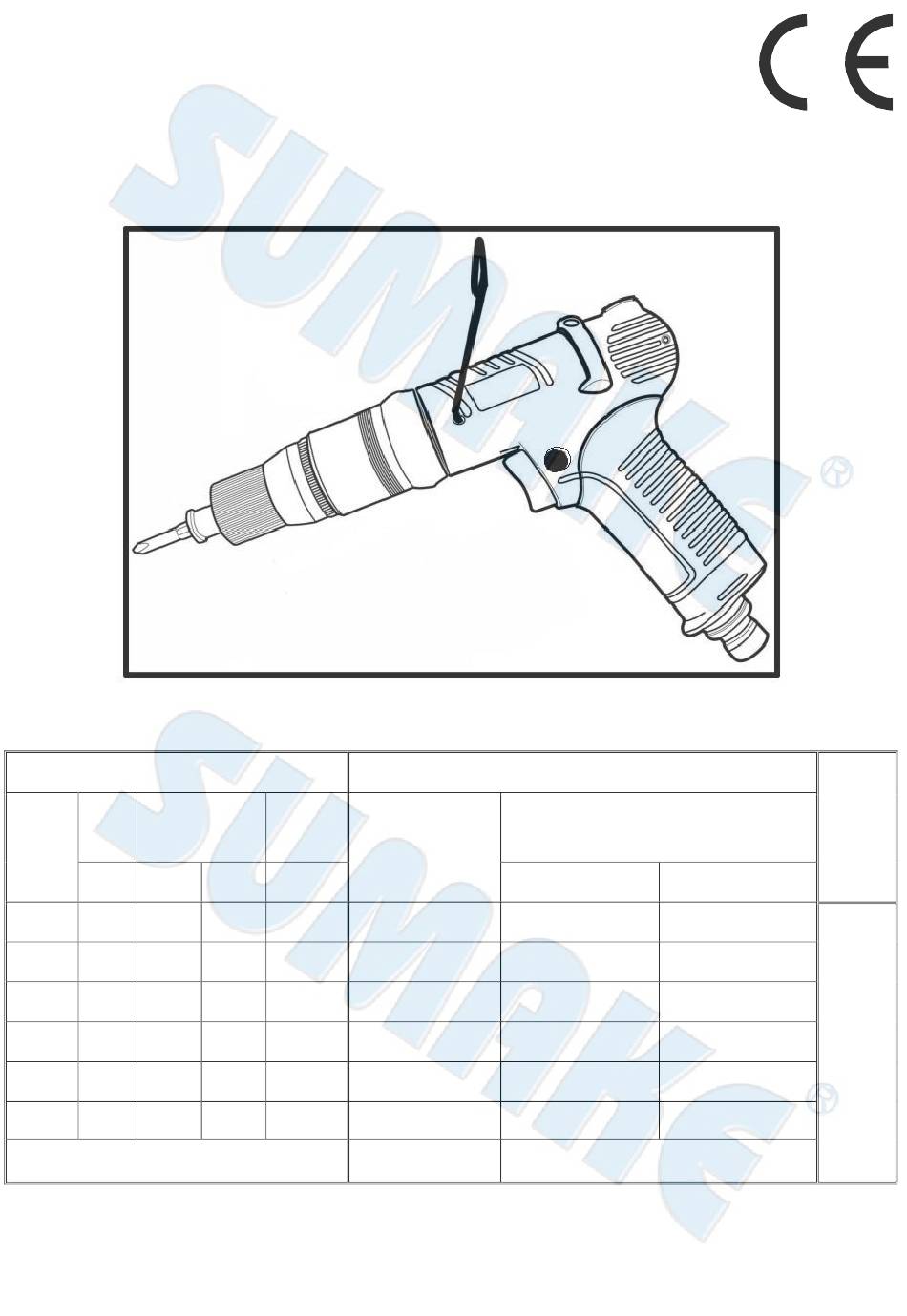

- Page 1 ABP68 5-28 50-280 No Load: 0.434 m/s² No Load: 81.84 dB(A) No Load: 92.84 dB(A) Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 1.5 m/s² Uncertainty K= 3dB ABP48(50)(55)(60)(65)(68)-S-2111G-MI SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) Model/ Serial No.：ABP48(49)(50)(55)(60)(65)(68) to which this declaration applies, complies with these normative documents: ... - Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
- Page 4 ABP55 TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) ABP55-P-2203B6-MI...
-
Page 5: Parts List
ABP55 TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5L2034 Pistol Housing (Sky Blue) 6N5110 Spring 2C2002 Blank Cap 3S2227 Slide Base 7Q2008 O Ring 6N3051 Torque Spring 7S2106-1 Screw 2S5121 Washer 7Q2007... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
