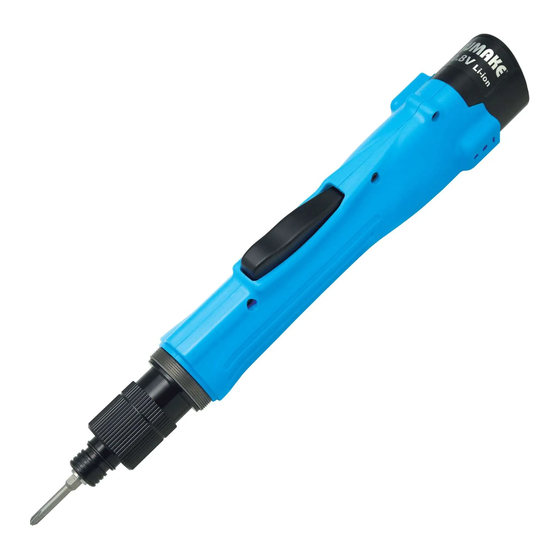

Pistol handle push start- shut off composite screwdriver (10 pages)
Summary of Contents for Sumake ES-BS1002
Page 1
OPERATION AND MAINTENANCE MANUAL ES-BS1002 ITEM NO.: ES-BS1003 ES-BS1004 BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER CAUTION!! ES-BS Series Is Advancement In High Torque Motors Design. To Be More Safty, Assemble The Auxiliary Handle Before Operation ES-BS1002(3)(4)-I-2307E-K2...
Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows: Determine the torque output of the tool by checking a tightened Fastener with a torque wrench. Increase or decrease the torque by rotating the Spring Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output.
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.
Page 5
WARNING Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. (1) Mess and dark areas may cause of accidents.
Page 6
16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. SUMAKE is not responsible for any personal injury that might cause of disobeying the safety advices.
Page 7
2. Below illustration is showing the process of correct install & disassemble the rechargeable battery. Insert Battery Steps Remove Battery Steps (1) Press the release button and take it out of the (1) Take screwdriver and battery. Device. Battery Release Button (2) Insert the rechargeable battery into the device follow (2) Follow the arrow direction.
Function / Operating Introduction Function Name Table Description Description Trigger Switch Driver Hook Forward/Reverse Lever S waist Screw Hole Bit Sleeve S Waist Hook Torque Fixing Ring OK/NG/Power/Hi&Lo Indicating Light Torque Fixing Ring/Coupler...
Lo for slowest rotation. It's possible that the uncompleted shut-off occurs when the switch is setup to Lo and the presetting torque is more than 50% of torque range. Please refer to the following table. Lo Switch Shut-off ES-BS1002 ES-BS1003 ES-BS1004 1 (N.m)↓...
Page 10
(3) Bit Sleeve Switch the screw bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. Pull the bit holder Insert the bit into (4) Torque Adjustment Ring: Turn torque adjust ring counter clock wise to increase torque output, on the other hand decrease torque...
Page 11
(9) OK/NG/Power/Hi&Lo Indicating Light Explanation Current Release switch Screw reaches Start Screw NG to stop running set torque Protection Signal Indicator Sound Judgment Signal Indicator Running green green lights lights Stop blue blue blue blue blue lights lights lights lights lights Beep Sound 1 short...
2. Do not attempt to repair or disassemble this cordless screwdriver without authorization. Always have the device serviced by assigned factory or qualified person in order to have the warranty effective continually. 3. SUMAKE is not responsible for any poor performance or damage caused by customers own modification of the tool.
EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER Model/ Serial No.: ES-BS1002, ES-BS1003, ES-BS1004 The object of the declaration described above is in conformity with the relevant union harmonization legislation: ...
Page 14
ES-BS1002(3)(4) BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-BS1002(3)(4)-P-2303C-K2...
Page 15
Motor Assembly For ES-BS1004 EPG21305-5 Washer EPM11317-1 Drive Pinion For ES-BS1002, ES-BS1003 EPG20213 Clutch Case EPGZPTA2000-1A Gear Housing For ES-BS1002 Hex. 5mm (Opt.) EPGL21371 Torque Adjust Pin EPGZPTA2000-1B Gear Housing For ES-BS1002 Hex. 6.35mm (Opt.) EPGM21381 Torque Adjust Ring EPGZPTA2000-2B Gear Housing For ES-BS1002 Hex.
Page 16
UK DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER Model/ Serial No.: ES-BS1002, ES-BS1003, ES-BS1004 The object of the declaration described above is in conformity with the relevant union...
