SUMAKE

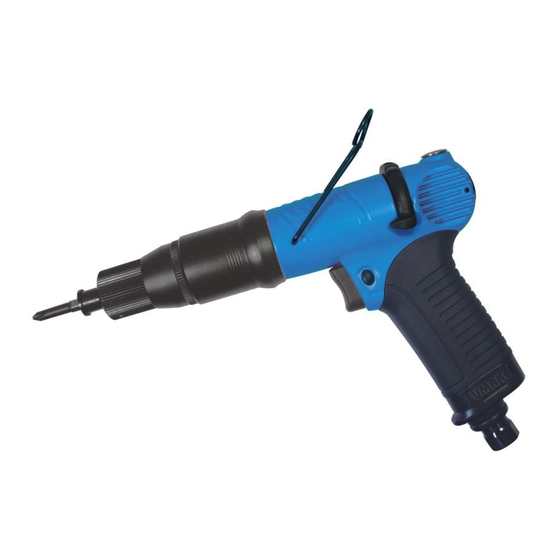

Push Or Push And Trigger To
Start-Shuf Off Air Screwdriver (Alu.)
Test result according to EN ISO 11148-6:2012
Vibration
MODEL
EN ISO 28927-2
No Load: 1.0 m/s 2
APP35
No Load: 1.0 m/s 2
APP38
No Load: 1.0 m/s 2
APP41
No Load: 1.0 m/s 2
APP47
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
Noise : EN ISO 15744
Sound pressure level
No Load: 73 dB(A)
No Load: 73 dB(A)
No Load: 73 dB(A)
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1- Read this manual and understand
No Load: 84 dB(A)
No Load: 84 dB(A)
2- Wear an approved ear-protector
No Load: 84 dB(A)
No Load: 84 dB(A)
Safety Instructions
Warning
all safety instructions before
operation the tool.
and gloves while operating tool.
APP35(38)(41)(47)-S-2310E-MIF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake APP35
Summary of Contents for Sumake APP35
- Page 1 No Load: 73 dB(A) No Load: 84 dB(A) No Load: 1.0 m/s 2 APP47 No Load: 73 dB(A) No Load: 84 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB APP35(38)(41)(47)-S-2310E-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： PUSH OR PUSH AND TRIGGER TO START-SHUT OFF AIR SCREWDRIVER (ALU.) Model/ Serial No.： APP35(38)(41)(47) to which this declaration applies, complies with these normative documents: ... -
Page 3: Air Supply
Speed Pressure Consumption range Deviation ISO5393 Machine Tapping bore request) Screw Dia. Screw Dia. Kg/cm² m³/min r.p.m. Kgf-cm ±3 APP35 2200 0.28 3-20 M2.2-M4.5 M1.7-M3.5 ±3 APP38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 APP41 1000 0.28 5-35 M2.8-M5.2 M2.2-M4.2 ±3 APP47 0.28... - Page 6 APP38 PUSH OR PUSH AND TRIGGER TO START-SHUF OFF AIR SCREWDRIVER (ALU.) APP38-P-2209B1-MI...
- Page 7 APP38 PUSH OR PUSH AND TRIGGER TO START-SHUF OFF AIR SCREWDRIVER (ALU.) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2035 Pistol Housing [Sky Blue] 3S2231 Ball Race 2C2003-A Blank Cap 6N3100 C Ring 7Q2008 O Ring 3S7120 Anvil [PULL] 7S2106 Set Screw...
- Page 8 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 9 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 10 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 11 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
