SUMAKE

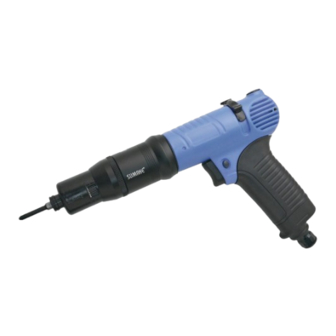

Push Or Push And Trigger To
Start-Shuf Off Air Screwdriver (Alu.)
Test result according to
Vibration
MODEL
EN ISO 28927-2
No Load: 0.5 m/s 2
APP48
No Load: 0.9 m/s 2
APP50
No Load: 0.3 m/s 2
APP55
No Load: 0.3 m/s 2
APP60
No Load: 0.4 m/s 2
APP65
No Load: 0.4 m/s 2
APP68
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 73.9 dB(A)
No Load: 75.1 dB(A)
No Load: 73.0 dB(A)
No Load: 73.9 dB(A)
No Load: 76.4 dB(A)
No Load: 76.4 dB(A)
Uncertainty K= 3dB
Sound power level
No Load: 84.9 dB(A)
No Load: 86.1 dB(A)
No Load: 84.0 dB(A)
No Load: 84.9 dB(A)
No Load: 87.4 dB(A)
No Load: 87.4 dB(A)
APP48(50)(55)(60)(65)(68)-S-2310E-MIF
Safety Instructions
Warning
Read this manual and
1-
understand all safety
instructions before operation
the tool.
Wear an approved
2-
ear-protector and gloves while
operating tool.
Advertisement
Related Manuals for Sumake APP48
Summary of Contents for Sumake APP48
- Page 1 No Load: 76.4 dB(A) No Load: 87.4 dB(A) No Load: 0.4 m/s 2 APP68 No Load: 76.4 dB(A) No Load: 87.4 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB APP48(50)(55)(60)(65)(68)-S-2310E-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： PUSH OR PUSH AND TRIGGER TO START-SHUT OFF AIR SCREWDRIVER (ALU.) Model/ Serial No.： APP48(50)(55)(60)(65)(68) to which this declaration applies, complies with these normative documents: ... -
Page 3: Air Supply
APP38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 APP41 1000 0.28 5-35 M2.8-M5.2 M2.2-M4.2 ±3 APP47 0.28 10-50 M3.6-M6.0 M2.8-M4.7 ±3 APP48 2200 1030 0.55 10-60 M2.9-M6.0 M2.6-M4.9 ±3 APP50 1400 1030 0.55 10-60 M3.6-M6.2 M2.8-M5.1 ±3 APP55 1000 1030 0.55 12-75 M3.8-M6.6 M3.0-M5.6... - Page 6 APP48 PUSH OR PUSH AND TRIGGER TO START-SHUF OFF AIR SCREWDRIVER (ALU.) APP48-P-2207B2-MI...
- Page 7 APP48 PUSH OR PUSH AND TRIGGER TO START-SHUF OFF AIR SCREWDRIVER (ALU.) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2030 Pistol Housing (Sky Blue) 3S7067 Anvil [Pull] 2C2003 Blank Cap 7S2105 Ball 7Q2008 O Ring 6N5110 Spring...
- Page 8 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 9 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 10 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 11 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
