SUMAKE

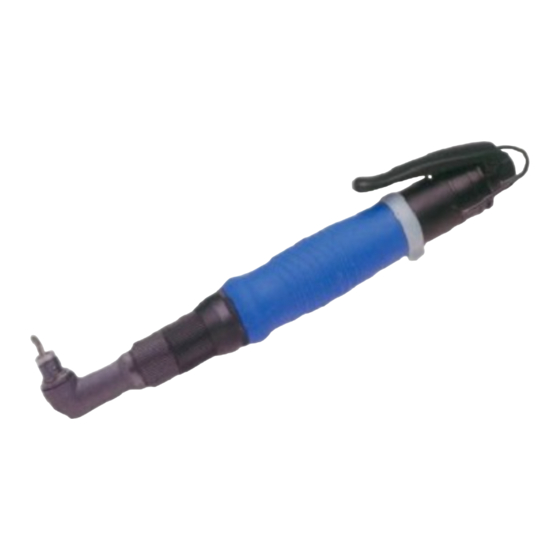

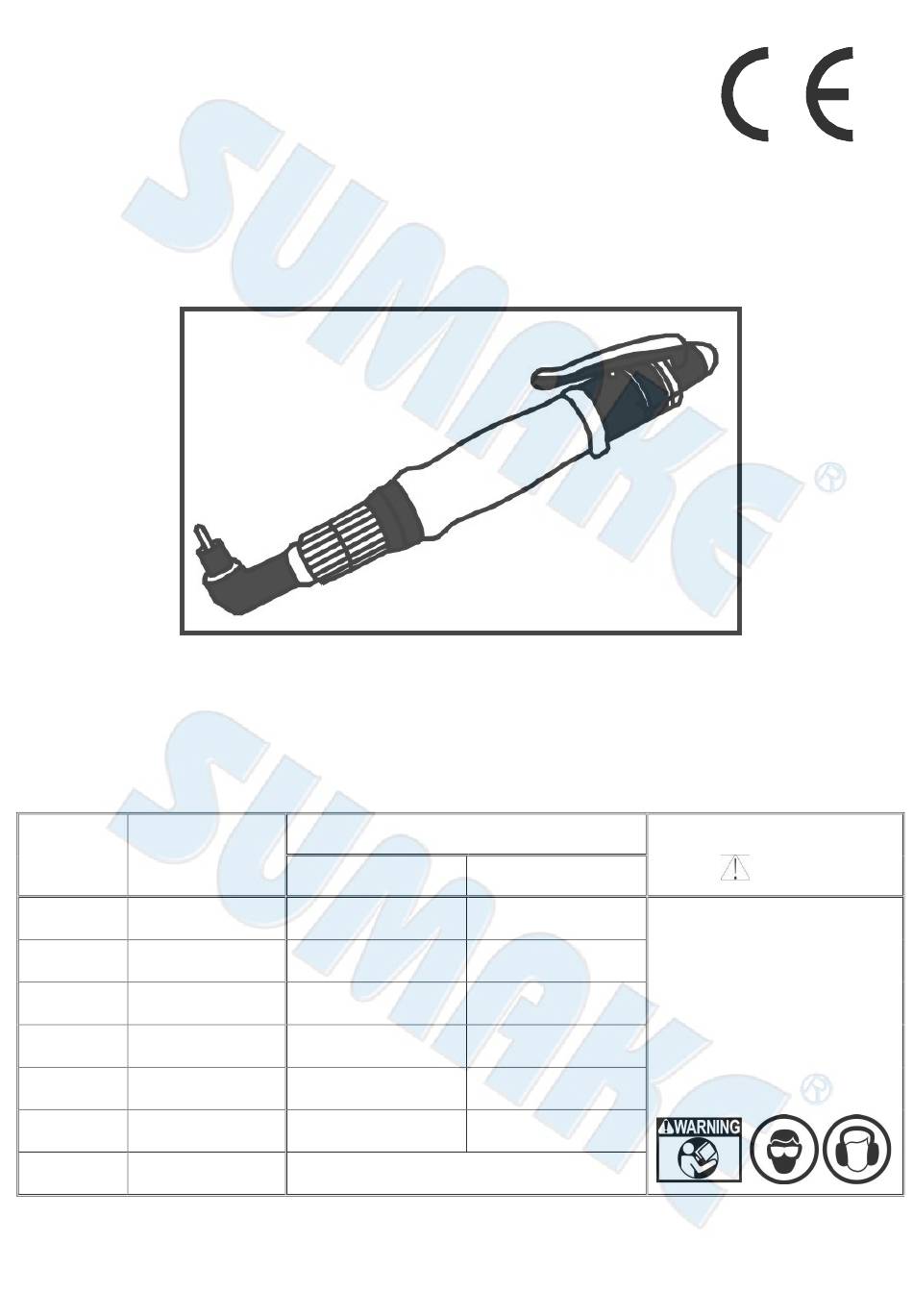

Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CA48
No Load: 0.8 m/s2
CA50
No Load: 0.8 m/s2
CA55
No Load: 1.0 m/s2
CA60
No Load: 0.9 m/s2
CA65
No Load: 0.9 m/s2
CA68
No Load: 0.9 m/s2
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Angle Type-Lever Start)
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 77 dB(A)
No Load: 77 dB(A)
No Load: 76 dB(A)
No Load: 77 dB(A)
No Load: 77 dB(A)
No Load: 77 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 88 dB(A)
No Load: 88 dB(A)
No Load: 87 dB(A)
2-
No Load: 88 dB(A)
No Load: 88 dB(A)
No Load: 88 dB(A)
CA48(50)(55)(60)(65)(68)-S-2301I-MIF
