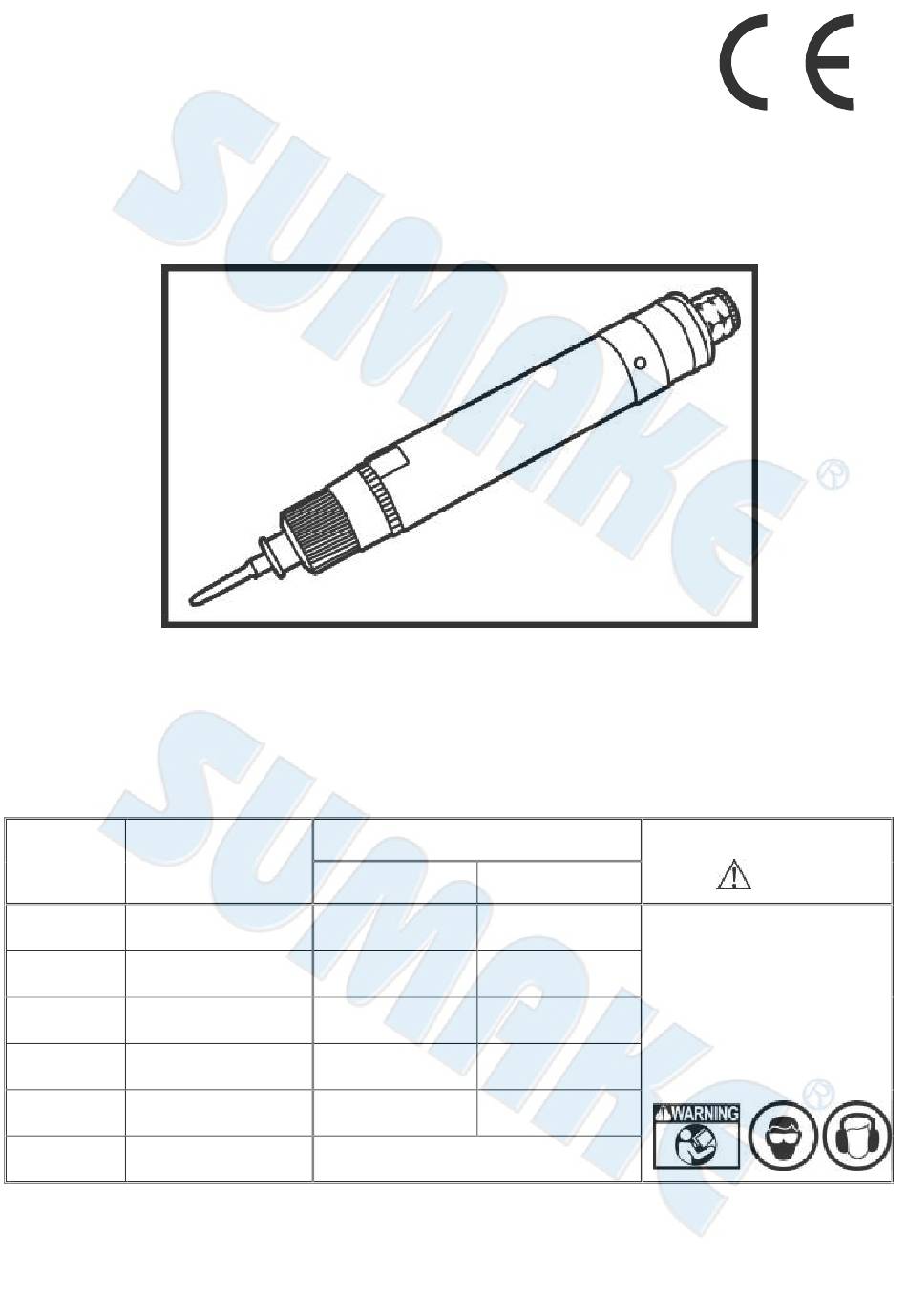

SUMAKE

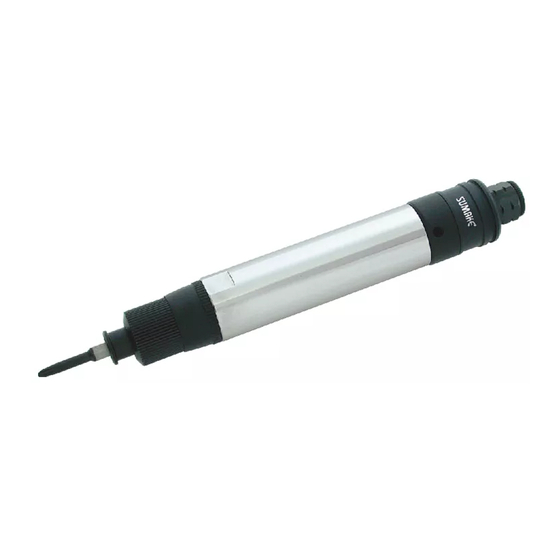

Air Start-Shut Off Air Screwdriver
Test result according to
MODEL
EN ISO 28927-2
SM10
No Load: 0.4 m/s2
SM20
No Load: 0.9 m/s2
SM30
No Load: 0.9 m/s2
SM40
No Load: 0.9 m/s2
SM45
No Load: 1.1 m/s2
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
-Forward Type-
EN ISO 11148-6:2012
Vibration
Sound pressure level
No Load: 68 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 73 dB(A)
PNEUMATIC TOOLS
Noise : EN ISO 15744
Sound power level
No Load: 79 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 84 dB(A)
Uncertainty K= 3dB
Safety Instructions
Warning
Read this manual and
1-
understand all safety
instructions before
operation the tool.
Wear an approved
2-
ear-protector and gloves
while operating tool.
SM10(20)(30)(40)(45)-S-2306F-MIF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake SM10
Summary of Contents for Sumake SM10
- Page 1 No Load: 75 dB(A) No Load: 86 dB(A) while operating tool. SM45 No Load: 1.1 m/s2 No Load: 73 dB(A) No Load: 84 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB SM10(20)(30)(40)(45)-S-2306F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR START-SHUT OFF AIR SCREWDRIVER -FORWARD TYPE- Model/ Serial No.： SM10(20)(30)(40)(45) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 Standard Weight O.A.L. Dia. Air hose bore Speed Consumption range Deviation Machine Screw Tapping Screw Model No. r.p.m. m³ /min Kgf-cm Kg/cm² Kg/cm² SM10 1000 6.35 0.05-0.2 0.5-2 ±3 M1.0-M2.2 M1.1-M1.7 SM20 1000 6.35 0.1-0.8 ±3 M1.7-M3.3 M1.3-M2.7 SM30 1800 6.35...
- Page 4 Air Nutrunner (Air Start) M5 Signal Port – Automation Installation Diagram ⚫ To configure pipeline, the required equipment include filter, pressure regulator, oil fog lubricator, etc. ⚫ Please refer to air screwdriver specification chart for air tube’s diameter and working pressure selection. ⚫...
- Page 5 SM45 AIR START-SHUT OFF AIR SCREWDRIVER SM45-P-1512A1-MI...
-
Page 6: Parts List
SM45 AIR START-SHUT OFF AIR SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5A3105 End Housing (Black) 3S2001 Pilot Pin 7Q2005 O Ring 3S2211 Rear Clutch 2P3040 Valve 6N2006 C Ring 7S2111 Set Screw And Washer 3S2215 Center Clutch 7S2001 Ball Bearing... - Page 7 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 8 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 9 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 10 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
