2.4 Install Mounting Part

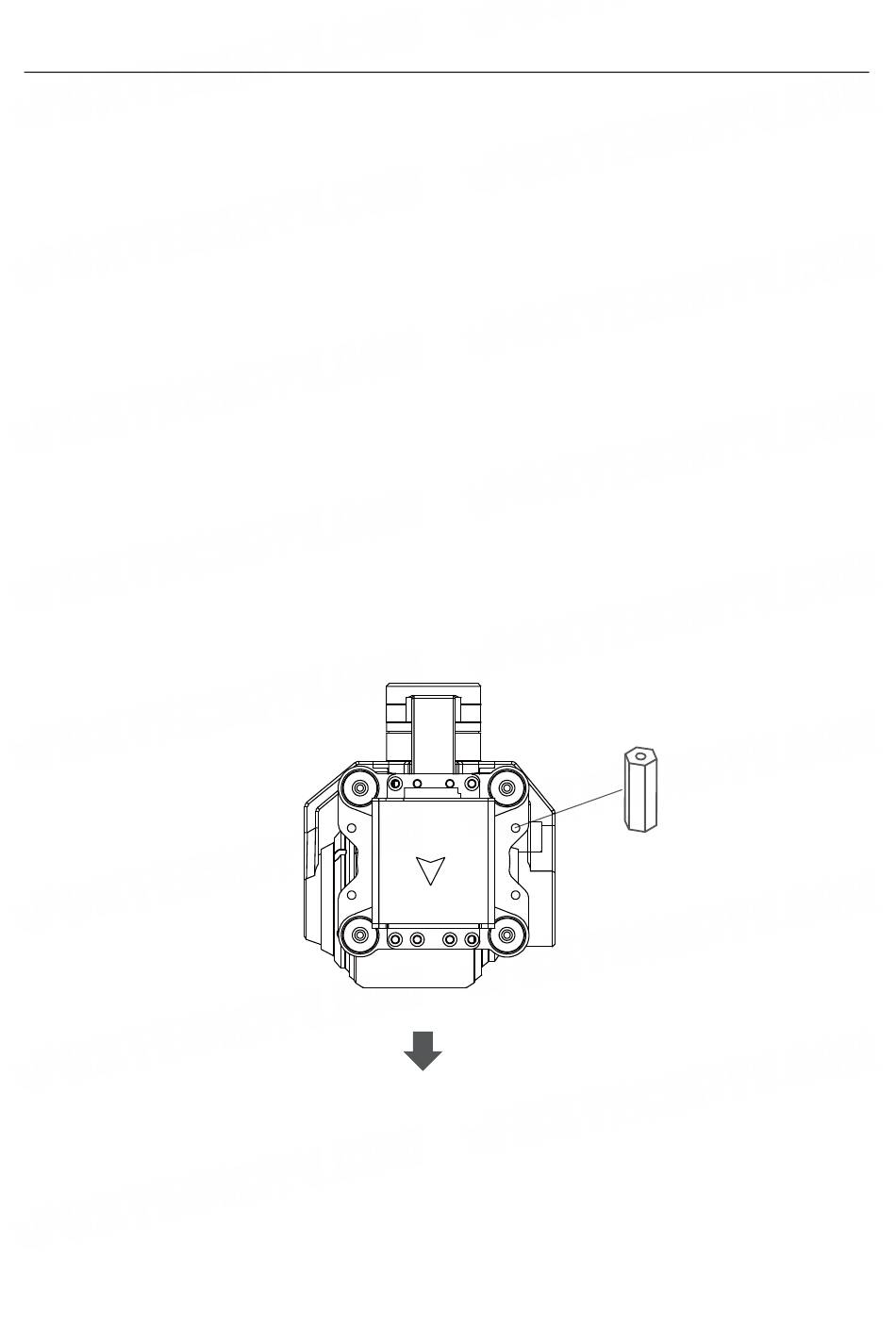

Find out the arrow on the gimbal which indicating the yaw
(1)
heading of the payload (i.e. the lens direction when the camera
power on), and synchronize with the direction specified by the UAV.
Fix one end of the copper cylinder on the screw hole of
(2)
lower damping board, and use M3 screw to fasten it.
According to the provided screw hole dimension you can
(3)
make suitable mounting holes on the UAV mounting board, and
fixes the other end of the copper cylinder on the mounting board of
the UAV (Quick-mount version is the same).
