5) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary
knob or 3-gear switch on remote control are optional. 3-gear switch as
example.)

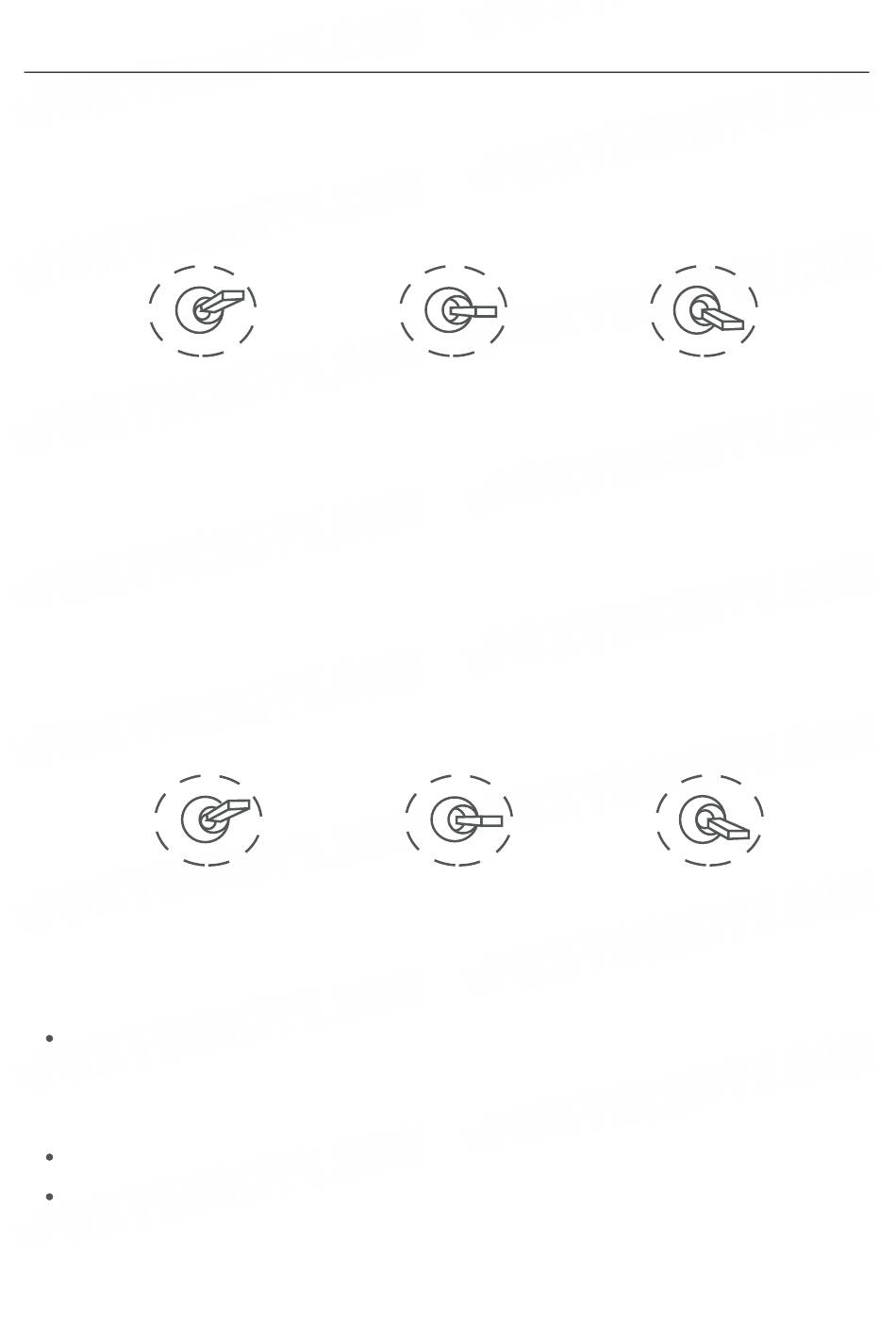

Position 1
Low Gear
Zoom Out
6) Focus ( not functional for this channel)
7) Pic/Rec (PWM Pic/Rec channel in to control take picture and
record. Joystick, rotary knob or 3-gear switch on remote control are
optional. 3-gear switch as example.)
Position 1
Low Gear
Switch from Position 2 to 1: Take a picture
OSD display 'REC IMG' a second.
Switch from Position 2 to 3: Start record / repeat operation to stop
record
Start record, the OSD display rec hh:mm:ss.
Stop record, the OSD display STBY.
EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera
Position 2
Middle Gear
Stop Zoom
Position 2
Middle Gear
Position 3
High Gear
Zoom In
Position 3
High Gear
@2022 FOXTECH All Rights Reserved 15
