Summary of Contents for Foxtech 3DM V3

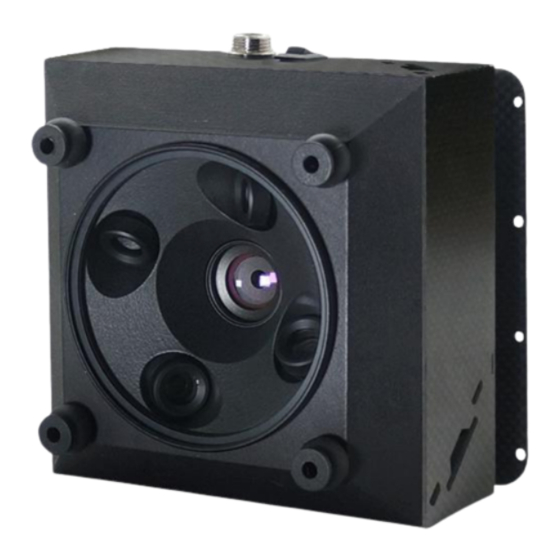

- Page 1 3DM V3 Oblique Camera User Manual V1.0 2021.12...
-
Page 2: Table Of Contents
Contents Description.................... 1 Disclaimer..................1 Intellectual Property................ 1 Specification..................2 Interface Definition................3 Operating Instructions..............6 Camera Shutter Setting..............7 Triggered by Relay................7 Triggered by PWM signal...............7... -
Page 3: Description
Please read the instruction manual carefully and strictly follow the instructions in this manual to use this product. Foxtech will not be liable for any result or loss caused by improper use, installation, assembly or modification of users. -
Page 4: Specification
3DM V3 Oblique Camera User Manual Specification Product 3DM V3 Single pixels 24 mega pixels Total pixels 120 mega pixels Minimum exposure time 0.6s Sensor size 23.5 * 15.6mm (APS-C) Hot shoes for PPK Support Resolution 6000*4000 Shutter speed 30—1/8000... -
Page 5: Interface Definition
3DM V3 Oblique Camera User Manual Interface Definition Description Description Orthographic camera shell Upper damping ball Power, shooting and hot shoe for PPK all-in-one Button Port cable Power on/off SD card Micro-USB Micro-HDMI Shooting indicator Lower damping ball Notes Notes 25.2mm lens... - Page 6 3DM V3 Oblique Camera User Manual Relay module PWM module Power module HDMI wire and acquisition Button HDMI cable Manually shooting Power Module Power out+ Power in+ Power Input Power Module 7.2-8.6V Hot Shoe for PPK shutter release cable GND...
- Page 7 3DM V3 Oblique Camera User Manual PWM Module Power in+(5V) PWM Module PWM input Relay Module PPK(Insert into the flight controller) Relay Module PWM input ©2021 FOXTECH All Rights Reserved...
-
Page 8: Operating Instructions
3DM V3 Oblique Camera User Manual Operating Instructions Please connect the power cable correctly, or reverse connection and over-voltage will damage the camera! 1. Press the Power Switch to “I” to turn it on( you can power down the camera when the power supply is normal, without Pressing the Power Switch. -
Page 9: Camera Shutter Setting
3DM V3 Oblique Camera User Manual Camera Shutter Setting Triggered by Relay 1. Connect the shutter release cable to AUX OUT 5 on flight controller. If there is no PPK module, connect the PPK cable to AUX OUT 6 on flight controller. - Page 10 3DM V3 Oblique Camera User Manual 6. Locate the CAM_FEEDBACK_PIN parameter in the same category, and set it to “55”, which means the PPK module connects to flight controller via AUX OUT 6. Android APP for HDMI acquisition card https://www.foxtechfpv.com/product/cameras/3DM-V3/Android APP.apk PC software for HDMI acquisition card https://www.foxtechfpv.com/product/cameras/3DM-V3/PC Software.exe...
