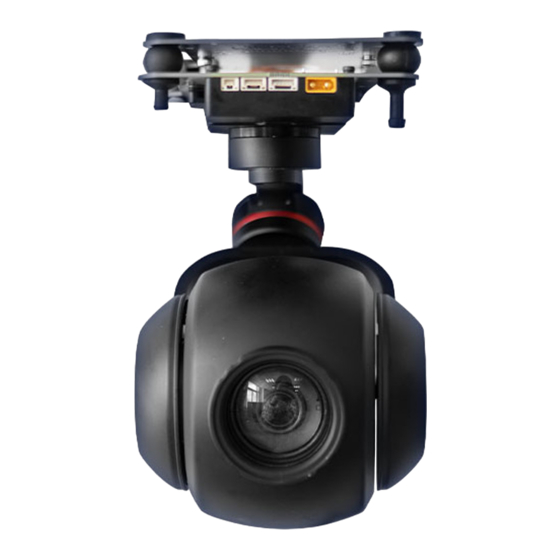

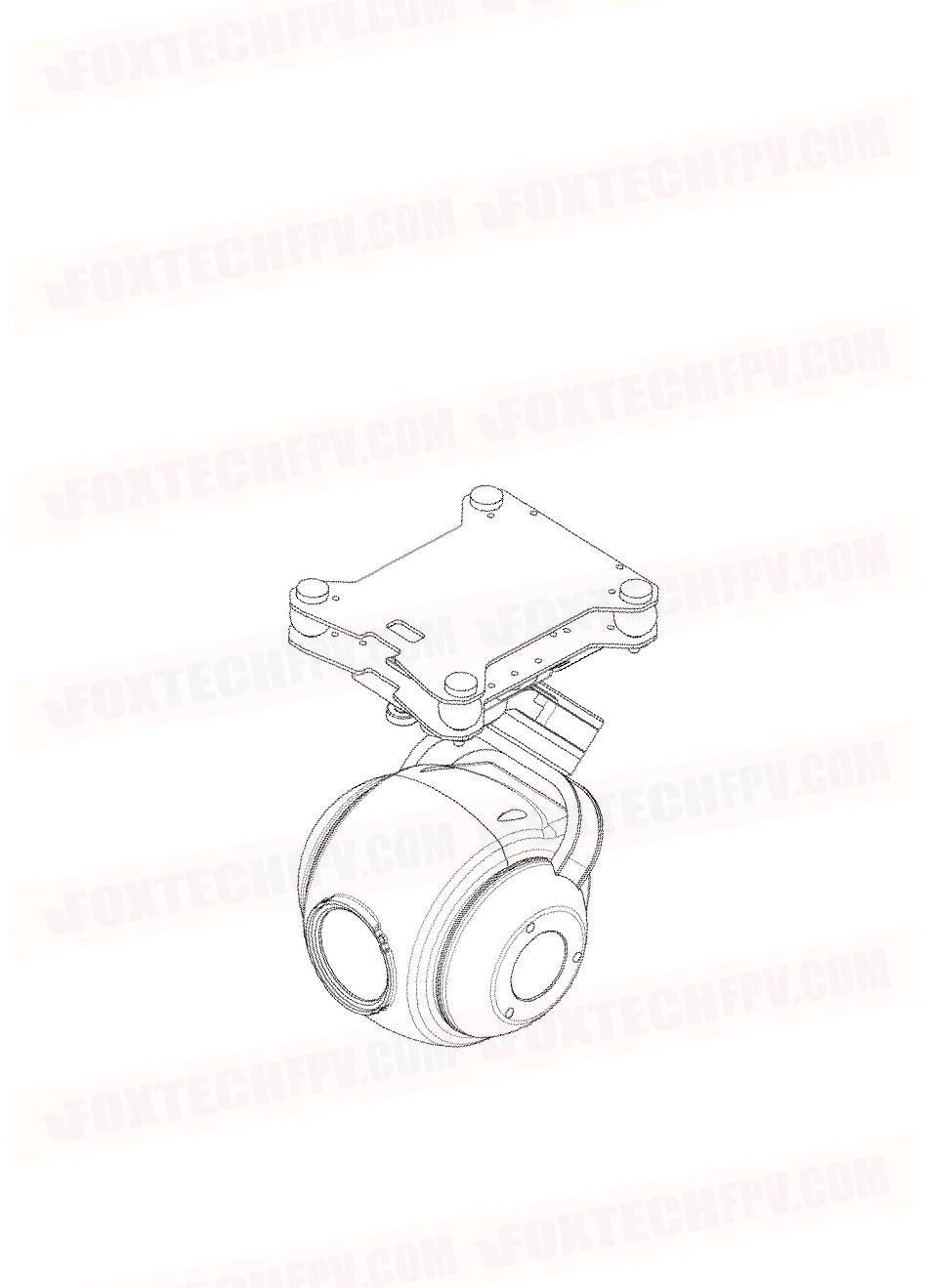

- Page 1 EH26 26X Optical Zoom Camera with 3-axis Gimbal User Manual 2023.2 V1.1...
- Page 3 Disclaimers This product shall not be used for any illegal actions such as military, terrorist or anti-personnel activities! The buyer should comply with the relevant laws and regulations of each country, and once purchased, is considered to agree to the statement.
-
Page 4: Table Of Contents
Install the Gimbal Camera................6 Three views .....................6 Software ......................7 Download and Install..................7 TGA Settings Upgrade Software..............7 Software Installation ..................7 Connection to Serial Port................7 SBUS Settings ....................8 Maximum Speed Configuration..............9 © 2022 EH26 All rights reserved. - Page 5 Camera Network Segment Modification..........13 TGA Display Control Software..............15 Windows ....................15 QGC ......................17 Android ....................17 Polar Wing Ground Station................1 Decoding Software ..................18 Specification ....................19 Frequently Asked Questions ................20 © 202２ EH26 Ａｌｌｒｉghts reserved.
-
Page 6: Brief Ｄｅｓｃｒｉｐｔｉｏｎ
In the industry application, in order to prevent the risk of accidental loss of memory card and consequent leakage of stored data, EH26 adopts the data encryption storage method. The videos and photos stored on the Micro SD card in the gimbal camera need to be decoded by special PC data software before they can be read and used normally. -
Page 7: List Of Ｉｔｅｍｓ
EH２６ Ｇｉｍｂａｌ ｃamera Power supply quick release board XT30 Power Cord ４Ｐ ｔｏ ５Ｐ Ｎｅｔｗｏｒｋ Ｐｏｒｔ Ｃａｂｌｅ 4P to RJ45 network port cable 2P SBUS cable CAN, serial port adapter cable Memory Card Wiring Definition © 2022 EH26 All rights reserved. -
Page 8: Description
Micro SD card to encrypted format by TGA setting upgrade software .The specific operationprocess is described in the software settings. We strongly recommend that you use one memory card for one EH26 device and do not use the same storage card for multiple EH26 devices simultaneously. -
Page 9: Three Views
For optimal use, please keep the gimbal camera relatively still for 20 seconds just after power on, without moving the gimbal or drone. EH26 will complete sensor calibration within this time period. Please make sure that there is no obstruction within the range of motion of the head camera and that the rotation is smooth and smooth. -
Page 10: Software
TGA.EXE program. Connection to Serial Port: Please power on the EH26 first, and after the gimbal camera self-test is completed, use the TYPE-C data cable to connect the gimbal to the computer. ©... -
Page 11: Sbus Settings
Click Search Serial Port, and click Open Serial Port when the serial port number is displayed corresponding to EH26 serial port. If the connection is successful, the IMU interface on the right side of the software will have data jumping and you can proceed to the next step. - Page 12 Taking pictures and video: two independent channels can be used, two-position switch and button control. Can also be configured in the same control channel, through a three-position switch to achieve the control of photography, video. © 2022 EH26 All rights reserved...
-
Page 13: Sd Card Formatting (Encryption Format Conversion)
TGA. Web page formatting After the SD card is inserted into EH26 , please connect the 4p to rj45 cable to the pod and set the computer network port correctly. Power up the pod and after the pod completes the self-test action, the computer will recognize the new wired network. - Page 14 Configuration - Storage Settings - Storage Management - Disk Management to check the disk information and then click Format. You can adjust the allocation ratio of photo and video storage in the disk quota according to your actual usage needs. © 2022 EH26 All rights reserved...
-
Page 15: Tga Formatting
TGA Formatting After inserting the SD card into the EH26, power on the gimbal and connect it to the computer using a USB cable. Once the TGA has correctly identified the S33 port and successfully connected, click "Format SD Card". The software in the upper right corner will show a message that it is formatting the card. -
Page 16: Communication Serial Port Setting
Please strictly follow the steps and corresponding firmware to write when upgrading the firmware of EH26. Incorrect firmware upgrade may cause EH26 to malfunction. Communication serial port settings To complete the connection steps, refer to Connecting Serial Ports. PIX open source flight control settings:... -
Page 17: Display Control
115200, mavlink2 protocol. Display Control Camera rtsp video stream address for EH26 : rtsp://admin:sgz888888@192.168.144.68:554/Stream/Live /101 This video stream is 1080p 25 fps 2Mbps, please fill in the correct address of this stream to the corresponding location of the desired software according to your needs. - Page 18 Modify the camera network segment according to your needs, enter the administrator password: sgz888888 after the modification is completed, and then click Modify. © 2022 EH26 All rights reserved...
-
Page 19: Tga Display Control Software
TCP connection: Select the corresponding gimbal according to your needs, fill in the correct IP address, and click "Connect" to automatically enter the video display interface. The default address for EH26 is as follows. © 2022 EH26 All rights reserved... -
Page 20: Qgc
EH26 supports computer keyboard control specific key operations are as follows: ↑↓←→ control the gimbal movement, ＜＞ control the lens zoom, K photo , L video, N one-click downward, B back-to-center, M follow mode / free mo de switching. For MAVlink serial port configuration, see Communication Serial Port Settings. -
Page 21: Android
After registering your user information, enter the ground station and enter the following RTSP streaming address: rtsp://admin:sgz888888@192.168.144.68:554/Stream/Live /101 Note: If the camera network segment is modified, the network segment in the rtsp video stream address should be modified accordingly. Keep the network segment consistent © 2022 EH26 All rights reserved... -
Page 22: Decoding Software
The decoding software is free to install. After unpacking the software, open the SD card conversion tool. To access the photos and videos stored on the memory card of EH26, remove the memory card and insert it into the computer. The original address is the path of the memory card, and the destination address is the path where the converted files will be saved. -
Page 23: Specification
Storage TF Car GH1.25 interface: 4 core (network port), Output Interface 5 core (serial port, can), 2 core (sbus) XT30 (power supply) power suppl Direction lock; course follow; one Working Ｍｏｄｅ button dow Camera © 2022 EH26 All rights reserved... - Page 24 1/2.8 CMOS 2 Mega Pixels 1. TGA upgrade software cannot recognize the COM port. Reasons: - EH26 has no power or the voltage is below 13V, so EH26 cannot start working properly. - Some slimmed-down systems may lack the corresponding USB serial port driver program.
- Page 25 Reason: EH26's encrypted storage method defines the number of videos/photos first, and then fills the content in order. The memory card is bound to EH26 one by one. Therefore, if one card is used on multiple EH26 gimbals, please perform the memory card encryption format conversion (on the webpage or TGA) before use.
