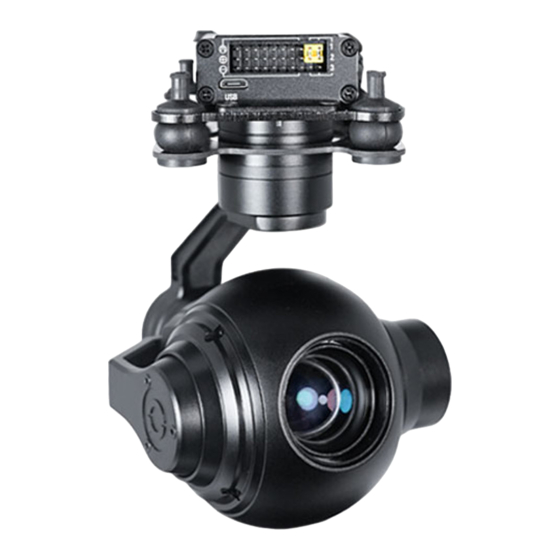

Foxtech EH10 10X User Manual

Optical zoom camera with 3-axis gimbal
Hide thumbs

Advertisement

Quick Links

Download this manual
EH10 10X
Optical Zoom Camera With 3-axis Gimbal
User Manual
V1.0 2022.4
Standard Version
Quick-mount Version

Advertisement

loading
Need help?

Need help?

Do you have a question about the EH10 10X and is the answer not in the manual?

Questions and answers

Related Manuals for Foxtech EH10 10X

Summary of Contents for Foxtech EH10 10X

  • Page 1 EH10 10X Optical Zoom Camera With 3-axis Gimbal User Manual V1.0 2022.4 Standard Version Quick-mount Version...
  • Page 2 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 1. In the Box A. . Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs...

  • Page 3: Installation Instruction

    EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [10] [11] [12] Control Box Back Side...
  • Page 4 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera [1] Control box TF card slot [2] Upper damping board Roll axis motor [3] Lower damping board Pitch axis motor [4] FHD zoom camera 3-6S power interface [10]...
  • Page 5 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.2.2 Control Box Printing (Quick-mount Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side @2022 FOXTECH All Rights Reserved 4...
  • Page 6 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.3 Device Dimensions (Standard Version) Unit: mm 111.4 91.6 @2022 FOXTECH All Rights Reserved 5...
  • Page 7 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.3 Device Dimensions (Quick-mount Version) Unit: mm Control Box 91.6 111.4 @2022 FOXTECH All Rights Reserved 6...
  • Page 8 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.4 Install Mounting Part Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV.
  • Page 9 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.5 Quick-mount Version Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other,...
  • Page 10 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the plate completely and then rotate the gimbal camera anticlockwise.
  • Page 11 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format.

  • Page 12: Signal Control

    EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.1.2 (choose the last byte among 2~254, can not be 160 same as the gimbal), subnet mask: 255.255.255.0,...
  • Page 13 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera PWM IN 5V OUTPUT Remote Controller Receiver Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Quick-mount Version) @2022 FOXTECH All Rights Reserved 12...
  • Page 14 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.)
  • Page 15 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at...
  • Page 16 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 5) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2...
  • Page 17 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 8) Multi: Backup channel Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive.
  • Page 18 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera USB to TTL Cable Quick-mount Version Control Box Connection Diagram (Quick-mount Version) Diagram of USB to TTL Cable: Connect the camera to the upper computer by USB to TTL cable...

  • Page 19: S.bus Control

    EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 3.3 S.BUS Control Control the gimbal camera functions by one combining signals. Connect the external S.Bus to S.Bus port on the control box, and the external S.bus signal GND connect to the GND interface of the control box.
  • Page 20 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera Receiver Remote Control Wiring Diagram (Quick-mount Version) S.Bus control mode: default S.Bus signal channel 9-15 to control gimbal camera functions (the function of channel is consistent with corresponding channel in PWM function description)
  • Page 21 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera User can set the channels by setting serial command according to the actual requirement. The S.Bus channel position can be arranged in any sequence within channel 1-15 to connect with the flight controller or remote control.

  • Page 22: Specification

    EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 4. Specification Hardware Parameter Working voltage Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 450~700mA @ 12V Idle current 450mA @ 12V Working environment -20℃...
  • Page 23 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera One-key to center √ Camera spec Imager Sensor 1/3" Panasonic CMOS Sensor Total pixel 2.48M Picture quality Full HD 1080 (1920*1080) Optical zoom 10x, f = 5.1mm ~ 51mm Digital zoom D: 68°(Wide end) ~ 6.7°...
  • Page 24 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera White balance Auto / One Push / Manual / Indoor / Outdoor Shutter speed 1/30(25) ~ 1/30,000 sec Focus Auto / One Push / Manual Iris 0 ~ 20 steps...
  • Page 25 EH10 10X Optical Zoom Camera User Manual EH10 10X Optical Zoom Camera 5. FAQ 1. 1.How to modify the IP address of EH10? A: Enter “192.168.1.168” at IE web, and go into the IP CAMERA interface -- download the activeX control and login the control as an administrator.
