8) Multi: Backup channel
Position 1
Low Gear
3.2 Serial Port / TTL Control
TTL communication requirements: TTL signal is 3.3V, baud rate:
115200, data bit 8, stop bit 1, no parity, HEX send and receive.

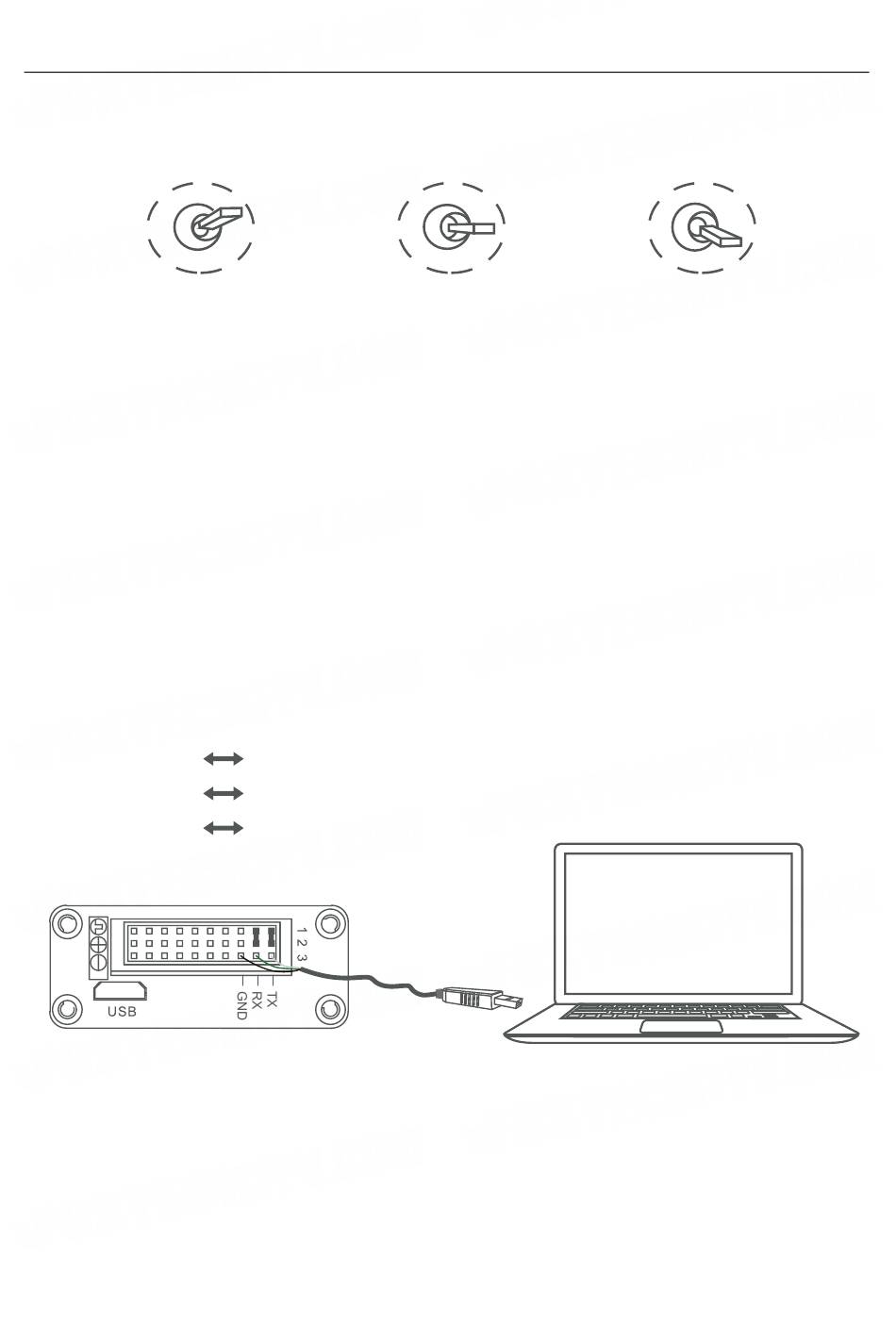

Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as
example):
Gimbal Camera
TX
RX
GND
Control Box
Connection Diagram (Standard Version)
Position 2
Middle Gear
Cable
RX (White)
TX (Green)
GND (Black)
USB to TTL Cable
