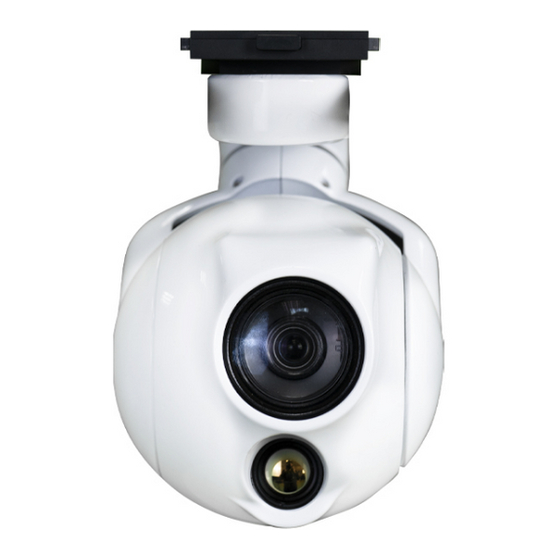

- Page 1 EH30-M TIR Dual Sensor 30X Optical Zoom Camera with 3-axis Gimbal User Manual 2022.02 V1.0...
-
Page 2: Note
Please read the instruction manual carefully and strictly follow the requirements of this manual to install and use this product. Foxtech will not bear any legal responsibility for any results or losses caused by improper use, installation, final assembly and modification by users. -
Page 3: Table Of Contents
Contents Note Disclaimer Intellectual Property Rights System Composition Product System Atlas Installation Installation and setup methods of third-party videolink GCS Software Usage Instructions Operating Pods Frequently Asked Questions Parameter 2020 FOXTECH All Rights Reserved ©... -
Page 4: System Composition
System Composition Product System Atlas Product Wiring Diagram 2020 FOXTECH All Rights Reserved ©... - Page 5 Foxtech EH30-MTIR Dual Sensor 30X Optical Zoom Camera User Manual © 2020 FOXTECH All Rights Reserved...
-
Page 6: Installation And Setup Methods Of Third-Party Videolink
192 168 42 255 255 255 0 192 108 42 3. Use GCS ground station for gateway setting Click to search device, then double-click the pop-up IP bar, save it after modification, and restart the gimbal. 2020 FOXTECH All Rights Reserved ©... - Page 7 4. Camera IP modification Open any browser, enter 192.168.42.108 After entering the following interface, username, password are admin Confirmation 2020 FOXTECH All Rights Reserved ©...
- Page 8 Do not modify the password, otherwise the software will not working properly. After entering the setup interface, click Settings Network Settings General Settings Change the IP address and default gateway “42” to “1”, then click Save. 2020 FOXTECH All Rights Reserved ©...
- Page 9 Secondary stream 1 rtsp ://admin: admin @< ip >:554/cam/realmonito? Channel =1& subtype =1 Secondary stream 2 rtsp ://admin: admin @< ip >:554/cam/realmonito? Channel=1& subtype=2 usually uses secondary stream 2 for preview RTSP ://admin: admin @192.168.42.108:554/cam/realmonito? Channel=1& subtype=2 2020 FOXTECH All Rights Reserved ©...
-
Page 10: Gcs Software Usage Instructions
One key forward Yaw following Manual focus+ Auto focus Manual focus- Target following Camera setting Operating Pods GCS pod software through the mouse, virtual keys, USB joystick to achieve the full operation of the pod. 2020 FOXTECH All Rights Reserved ©... - Page 11 1. Operational steps view → download interface (as shown below) can download video (MP4 style), photo (jpg) offline. And the photos support real-time preview. Download type switch Photo preview window 2020 FOXTECH All Rights Reserved ©...
-
Page 12: Frequently Asked Questions
The computer is not connected to any network other than the data link. Software network IP address is incorrect :(when the gimbal, camera IP address changes, need to synchronously modify this software IP) Open GCS software → network settings Modify the IP address. 2020 FOXTECH All Rights Reserved ©... - Page 13 Pitch: 7 5 to - 100 degrees; Yaw: 360° Mechanical range Smart Target tracking Support Camera parameters visible light sensor CMOS:1/2.8″; Total pixels 2.16 Mega 30x optical zoom lens F: 4.7 to 141mm lens 2020 FOXTECH All Rights Reserved ©...
- Page 14 Secondary streams: 25fps (1920×1080, 1280×720, 704× 576, 352×288） 2D noise reduction Support (auto-on) 3D noise reduction Support (auto-on) Electronic shutter 1/3 to 1/30000 seconds exposure Automatic mode; Info Video Overlay (OSD) Support Point to zoom Support 2020 FOXTECH All Rights Reserved ©...
- Page 15 ± 3℃ or 3% of the ± readings (take larger) and measurement accuracy the ambient temperature is -20 ℃ to 60 ℃ Temperature Point, line, area analysis measurement tool focal length 19mm fixed focus 2020 FOXTECH All Rights Reserved ©...
- Page 16 Secondary stream: 25fps The encoding resolution (704×576 , 640x512) This content is subject to change. Download the latest version from https://www.foxtechfpv.com/eh30-m-tir-gimbal-camera.html For everyday updates, please follow Foxtech facebook page"Foxtechhobby". YouTube Channel: Foxtech 2020 FOXTECH All Rights Reserved ©...
