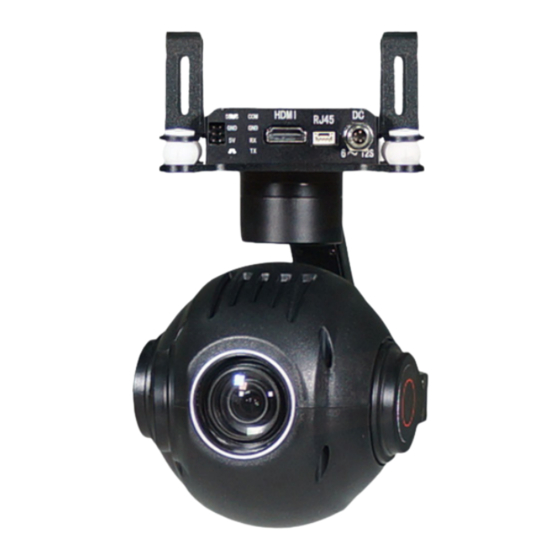

- Page 1 SEEKER 20-360 20X Optical Zoom Camera with 3-Axis Gimbal User Manual 2019.08 V1.0...
-
Page 2: Packing List
2.0 Megapixel. It adopts advanced 3-axis stabilization, which can keep the camera steady under any states, like high speed and intense shaking status. SEEKER 20-360 can be applied in many fields: Power line inspection, emergency monitoring, searching, rescue and other fields. -
Page 3: Installation
When the DuPont plug of the SBUS port is plugged in, make sure that the side of the DuPont plug exposed terminal does not touch the junction box, for avoiding the touching of the terminal and the metal case by the reverse insertion. 2019 FOXTECH All Rights Reserved ©... - Page 4 Yaw Control: pause, standby RC_CH5 Lens straight down middle Tracking mode down Gimbals lock mode RC_CH6 middle–> up Taking photo middle–> down shooting middle standby RC_CH7 RC_CH8 down standby down–> up One key back to center 2019 FOXTECH All Rights Reserved ©...
- Page 5 Direction lock; Yam following; One button down Camera focal length 4.7 84.6mm Zoom factor 20X optical zoom Focusing speed Video output format 1080P 25 1080P 60 frame Video storage format 1080P 25 frame sensor 1/3” 2.0Megapixel CMOS 2019 FOXTECH All Rights Reserved ©...
- Page 6 Seeker 20-360 User Manual 1. Please close the firewall ! 2. Open "Control Panel" "Network and Sharing Center". 3. Click the "Local Area Connection" icon "Properties" double-click "Internet Protocol Version 4 (TCP/ IPv4)" 2019 FOXTECH All Rights Reserved ©...
- Page 7 Seeker 20-360 User Manual 2019 FOXTECH All Rights Reserved ©...
- Page 8 (The video effect is best when input 300ms,) Easy player just fill in the IP link of the movement in any address bar +/main (example: 192.168.1.69/ main), cancel the "TCP" option, and keep the "hard solution" option. Finally click play. 2019 FOXTECH All Rights Reserved ©...
- Page 9 Seeker 20-360 User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/seeker-20-20x-optical-zoom-camera-with-3-axis-gimbal.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscriber 2019 FOXTECH All Rights Reserved ©...
