- Page 1 HDMI 2.0 Extender over Fiber 4KEX300-F User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................2 Panel .............................. 3 Installation ......................5 RS232 Pass Through ....................6 Specification ......................7 Warranty ......................... 8 www.avaccess.com info@avaccess.com... -
Page 3: Introduction

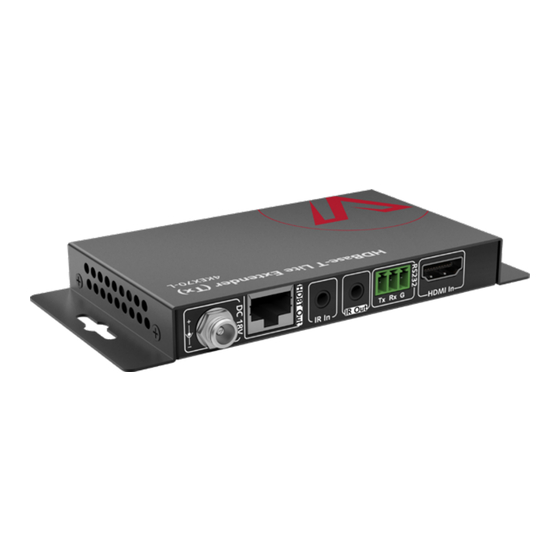

Introduction Introduction Overview This product is a slim HDMI transmitter receiver set. It supports resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2, transporting HDMI signals up to 300m/1000ft over a duplex OM3 multi-mode optical fiber cable. The kit supports bi-directional IR/RS232 pass through via DIP Switch settings, enabling users to control the source or display devices at either the transmitter or receiver side with ease. -
Page 4: Panel
Introduction Panel Front Panel Transmitter/Receiver Name Description On: The device is powered on. Power LED Off: The device is powered off. Blinking: The device is working properly. Status LED Off: The device is not working properly. On: HDCP protected content is being transmitted. Blinking: Non-HDCP protected content is being HDCP LED transmitted. - Page 5 Introduction Name Description Connect to the supplied IR receiver. Secure the IR IR In receiver with adhesive. Connect to the supplied IR emitter. Secure the IR IR Out emitter on the IR receiving sensor of source device with adhesive. Switch to RS232 or IR mode. RS232: For RS232 pass through.
-
Page 6: Installation
Installation Installation Note: Ensure the fiber cable length is within 300m/1000ft. Power Supply Connect the IR emitter to IR Out port of transmitte r. Connect to the HDMI source. Connect to the power supply. Transmitter Connect the transmitter Switch to IR mode and receiver via a duplex OM3 fiber cable. -
Page 7: Rs232 Pass Through
RS232 Pass Through RS232 Pass Through The RS232 ports provide a channel to pass through protocol commands to control third party devices such as your source or display. Switch the panel DIP Switch to RS232, and then connect RS232-enabled devices (such as a computer and a projector) to the transmitter and receiver respectively via RS232 cables. -
Page 8: Specification
Specification Specification Technical Video Signal Type HDMI 2.0, HDCP2.2 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 , 1366x768 1440x900 , 1600x900 , 1600x1200 Input/Output 1680x1050 , 1920x1080 , 1920x1200 Resolution Supported 3840x2160P 2,3,5,6,8 4096x2160P 2,3,5,6,8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz Audio Format... -
Page 9: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
