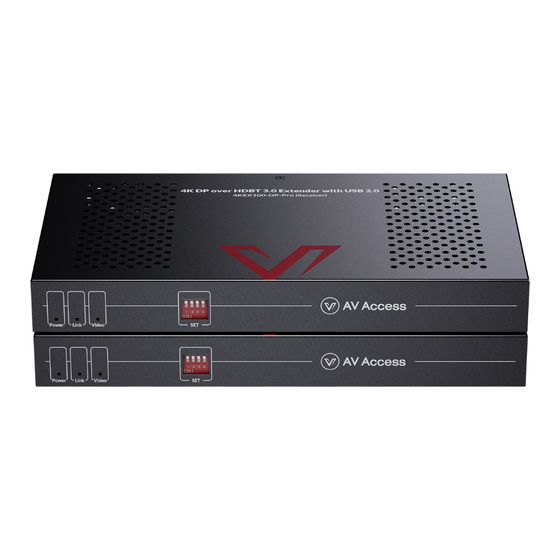

- Page 1 4K DP over HDBT 3.0 Extender with USB 2.0 4KEX100-DP-Pro User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................ 2 Overview ............................2 Features .............................. 2 Package Contents..........................2 Panel ..............................3 Front Panel ..........................3 Rear Panel ..........................3 Installation and Application ..................4 Brackets Installation ........................4 Application ............................5 DIP Switch Settings ..................... 6 RS232 Pass-Through .................... -
Page 3: Introduction
Introduction Introduction Overview This product is a 100m DisplayPort HDBT 3.0 Extender. It supports DP 1.2a up to 4K@60Hz 4:4:4 8bit and compatible with HDCP 2.2, and also features USB 2.0, audio, and RS232 pass-through. It offers the distribution of uncompressed 4K@60Hz UHD video, audio, power, RS232 and USB 2.0 together up to 100m/330ft over a single Cat 6A cable. -
Page 4: Panel
Introduction Panel Front Panel Transmitter & Receiver (take transmitter as the example) Name Description On: The device is powered on. Power LED Off: The device is powered off. On: The HDBT link is normal. Link LED Blinking/Off: No HDBT link or link error. On: Video is being transmitted. -
Page 5: Installation And Application
Installation and Application Name Description DP In Connect to a DP source. USB Host Connect to a host device. Receiver Name Description Connect to the power adapter provided. With one-way PoH function supported, one power adapter is needed to be connected to the receiver to power both units. Audio In Connect to an audio source for audio pass-through. -
Page 6: Application
Installation and Application Attach the brackets to the surface you want to hold the unit against using the screws (not included). Application AUDIO IN USB HOST DP IN Transmitter HDBT Receiver DP OUT AUDIO OUT USB DEVICE Speaker Camera Keyboard Mouse Display Additional connection options:... -
Page 7: Dip Switch Settings
DIP Switch Settings the receiver/transmitter. RS232 pass-through: Set both the DIP switches of the transmitter and receiver to “X, X, up, up” position. Connect a RS232 master/slave device to RS232 port of the transmitter/receiver, and connect a RS232 slave/master device to RS232 port of the receiver/transmitter. -
Page 8: Rs232 Pass-Through
RS232 Pass-Through transmitter/receiver to “X, X, up, down”. Connect a PC to RS232 port of the transmitter/receiver, and connect the transmitter and receiver, users can upgrade Valens firmware of transmitter and receiver through the RS232 port of the transmitter/receiver. RS232 Pass-Through RS232 ports can be used for bi-directional RS232 signal pass-through between the transmitter and receiver. -
Page 9: Specifications
Specifications Specifications Technical Input/Output Video Signal DP 1.2a with 4K@60 YUV 4:4:4, HDCP 2.2 VESA: 800 x 600 , 1024 x 768 , 1280 x 768 , 1280 x 800 , 1280 x , 1280 x 1024 , 1360 x 768 , 1366 x 768 1440 x 900 , 1600 x 900... - Page 10 Specifications Cable Type Range Supported Video 4K@60Hz 4:2:0 36bpp 70m/230ft 4K@30Hz Cat 5e/6 1080P@60Hz 4K@60Hz 4:4:4 24bpp 40m/131ft 4K@60Hz 4:2:2 36bpp 4K@60Hz Cat 6A (U/FTP) 100m/330ft 4K@30Hz 1080P@60Hz Use Patched Cable Note: Patches may be used in the installation, and the patches will obviously affect the transmission distance.
-
Page 11: Warranty
