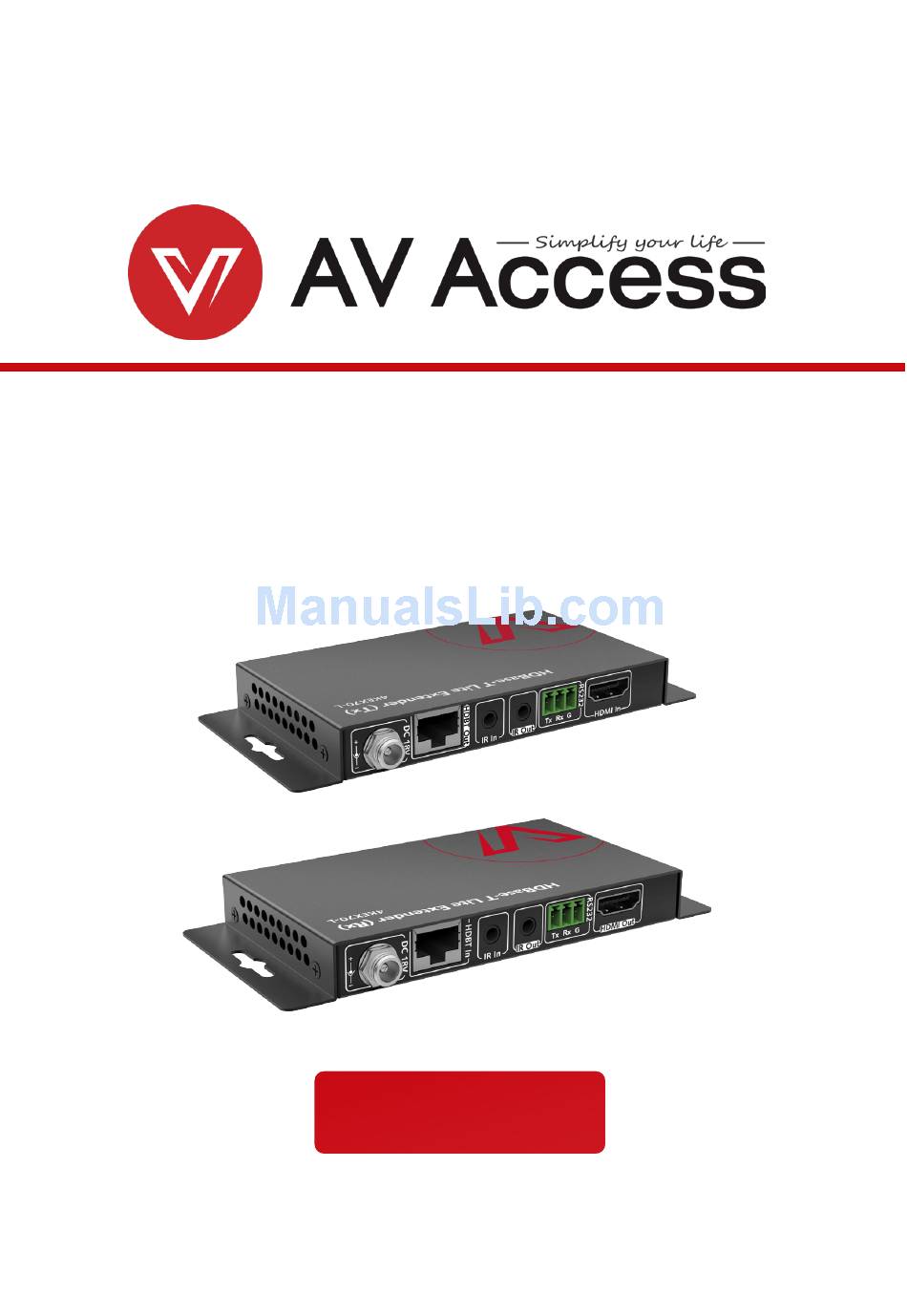

- Page 1 4KEX70-L HDBase-T Lite Extender User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Overview ........................2 Package Contents ........................3 Panel ............................... 4 Installation Instructions ..................7 Trouble Shooting ..................... 9 Specification ......................13 Warranty ....................... 15 www.avaccess.com... -
Page 6: Overview

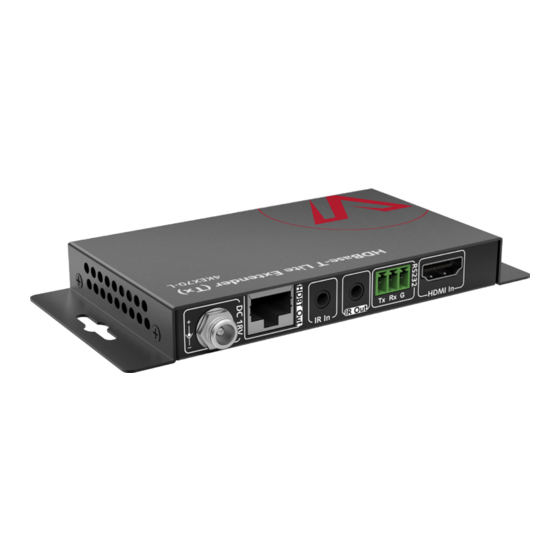

Overview Overview The 4KEX70-L HDMI extender is a slim transmitter receiver pair which is designed to extend HDMI 1080P@60Hz signals up to 70 meters and 4K@60Hz signals up to 40m via a single Cat 6a/7 cable. The transmitter and receiver can supply power to each other reciprocally. -
Page 7: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: Transmitter 4KEX70-L x1 Receiver 4KEX70-L x1 DC 18V1A Power Adapter x1 IR Emitter Cable x1 IR Receiver Cable x1 ... -
Page 8: Panel
Overview Panel Front Panel Transmitter/Receiver Name Description On: The device is powered on. Power LED (Red) Off: The device is powered off. Blinking: The device is working properly. Status LED (Green) Off: The device is not working properly. On: Audio and Video signal is HDCP protected. Blinking: Audio and Video signal is not HDCP HDCP LED protected. - Page 9 Overview Rear Panel Transmitter Name Description Connects to a DC 18V 1A power adapter. DC 18V Note: If transmitter is connected to a power supply, the receiver is adapter free. HDBT Out Connects to the receiver via a Cat5e/6 cable. Connects to an IR receiver cable.
- Page 10 Overview Receiver Name Description Connects to a DC 18V 1A power adapter. DC 18V Note: If receiver is connected to a power supply, transmitter is adapter free. HDBT In Connects to the transmitter via a Cat5e/6 cable. Connects to an IR receiver cable. Secure the IR receiver IR In with adhesive.
-
Page 11: Installation Instructions
Make sure CatX cable is less than 230ft for 1080p, 130ft for 4K resolution. Receiver Connect IR Connect the receiver cable HDMI display IR Emitter IR Receiver HDMI CatX Cable Power Control the DVD at TV side by DVD remote control. (4KEX70-L) www.avaccess.com... - Page 12 Connect the IR Emitter HDMI display Note: The IR emitter head IR Receiver should be secured over HDMI the center of the TV IR window. CatX Cable Power Control the TV at DVD side by TV remote control. (4KEX70-L) www.avaccess.com...
-
Page 13: Trouble Shooting
Compatibility: Please test other source and display devices to determine whether it is a compatibility issue. There may be potential incompatibility between source devices and 4KEX70-L(like Roku 4, Amazon Fire TV and Cisco cable box). For more compatible extenders, we recommend 4KEX70-R (Amazon ASIN: B01M3QVXS0). - Page 14 Trouble Shooting Typical questions How to deal with video flash or cut off during the installation? Power indicator should be solid on and status indicator should be blinking. If not, please check if the power adapter is well connected. Link indicator should be solid on, if it is blinking or off, it is likely a ...
- Page 15 Please make sure the third party device follows our pin definition as below: You can purchase a AV Access universal IR cable that will be compliant with any third party device.(Amazon ASIN: "B01MYX46IC") How to use the RS232 port in the extender? The RS232 port provides a channel to pass through protocol commands to control third party devices such as your source or display.
- Page 16 Trouble Shooting www.avaccess.com...
-
Page 17: Specification
Specification Specification Technical Video Signal Type HDMI 1.4, HDCP2.2 Audio Format Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through SMPTE: 1280x720P , 1920x1080I 1,2,3,4,5,6,7,8 1920x1080P , 3840x2160 1,2,3,4,5,6,7,8 2,3,5,6,8 4096x2160 2,3,5,6,8 VESA: 800x600 , 1024x768 , 1280x768 1280x800 , 1280x960 , 1280x1024 1360x768 , 1366x768 , 1400x1050... - Page 18 (W x H x D) 4.29'' x 0.59'' x 2.52'' Transmitter: 0.18kg Product Weight Receiver: 0.18kg Cable Specifications: Note: AV Access recommends the use of T568B straight-through Category cables. Cable Type Range Supported Video Up to 15m 1080P@60 Hz HDMI Cable...
-
Page 19: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.6...
