Summary of Contents for AV Access 4KEX300-F
Page 1
4KEX300-F HDMI2.0 Extender over Fiber User Manual...
Page 3
AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
Important Safety Instructions • Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. • Do not install or place this unit in a bookcase, built-in cabinet, or in another confined space.
Page 5
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 4 Front Panel ........................... 4 Rear Panel ..........................5 Installation Instructions ..................7 RS232 Pass Through ..................... 9 Specification ....................... 10 Trouble Shooting ....................12 Steps of Regular Troubleshooting Routine ............12 Typical Questions ......................12 Warranty ......................
Introduction Introduction Overview 4KEX300-F is a slim HDMI transmitter receiver set. It supports resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2, transporting HDMI signals up to 1000ft/300m over a duplex OM3 multi-mode optical fiber cable. 4KEX300-F supports bi-directional IR/RS232 pass through via DIP Switch settings, enabling users to control the source or display devices at either the transmitter or receiver side with ease.
Introduction Package Contents Before you start the installation of the product, please check the package contents: • Transmitter 4KEX300-F x 1 • Receiver 4KEX300-F x 1 • 10Gbps 850nm MM SFP+ Module x 2 • Power Supply (DC 12V 0.5A) x 2 •...
Introduction Panel Front Panel Transmitter/Receiver Name Description On: The device is powered on. Power LED Off: The device is powered off. Blinking: The device is working properly. Status LED Off: The device is not working properly. On: HDCP protected content is being transmitted. Blinking: Non-HDCP protected content is being HDCP LED transmitted.

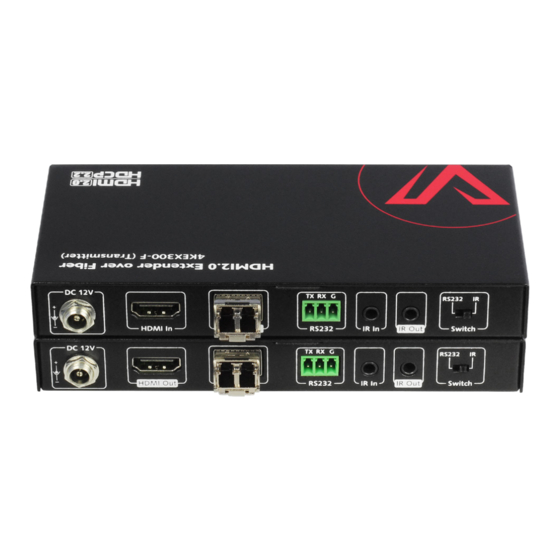

Introduction Rear Panel Transmitter Name Description DC 12V DC 12V power input HDMI In Connect to an HDMI source device. Connect to the Optical In port of the receiver via a Optical Out duplex OM3 multimode optical fiber cable. RS232 For RS232 pass through Connect to the supplied IR receiver.
Page 10
Introduction Receiver Name Description DC 12V DC 12V power input HDMI Out Connect to an HDMI display device. Connect to the Optical Out port of the transmitter via a Optical In duplex OM3 multi-mode optical fiber cable. RS232 For RS232 pass through Connect to the supplied IR receiver.
Installation Instructions Installation Instructions The product package includes one IR emitter and one IR receiver. Please refer to the following two applied installations. Applied installation 1: Power Supply The IR emitter head should be secured over the center of the DVD IR window. Connect the Connect the Connect the IR emitter...
Page 12
Installation Instructions Applied installation 2: Power Supply TV Remote Connect the Connect the Connect the power supply HDMI source IR Receiver Transmitter Connect the transmitter and receiver via a duplex Switch to IR mode OM3 fiber cable. Ensure its length is within 1000ft/300m. Receiver Connect the Connect the...
RS232 Pass Through RS232 Pass Through The RS232 ports provide a channel to pass through protocol commands to control third party devices such as your source or display. Switch the panel DIP Switch to RS232, and then connect RS232-enabled devices (such as a computer and a projector) to the transmitter and receiver respectively via RS232 cables.
Page 15
Specification Power Consumption Transmitter: 3.9W (Maximum) Receiver: 3.5W Device Dimensions 5.91'' x 0.79'' x 2.93'' (W x H x D) (150 mm ×20 mm × 74.4 mm) Transmitter: 0.66lb (0.30kg) Product Net Weight Receiver: 0.66lb (0.30kg) Cable Specifications: Cable Type Range Supported Video Input/Output: 49ft (15m)
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on (the source, extender set and display). Indicator: Please make sure LED indicators of the transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly.
Page 17
Please make sure the third party device follows our pin definition as below: IR Receiver IR Emitter • You can purchase an AV Access universal IR cable that will be compliant with any third party device (Amazon ASIN: "B01MYX46IC") . www.avaccess.com...
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
