Description
RG-AP820(AR) LED and Button
In fit mode
Frequency
–
3 Hz
–
3 Hz
–
3 Hz
–
3 Hz
3 Hz blinking
for 2 periods
and off for 2
periods

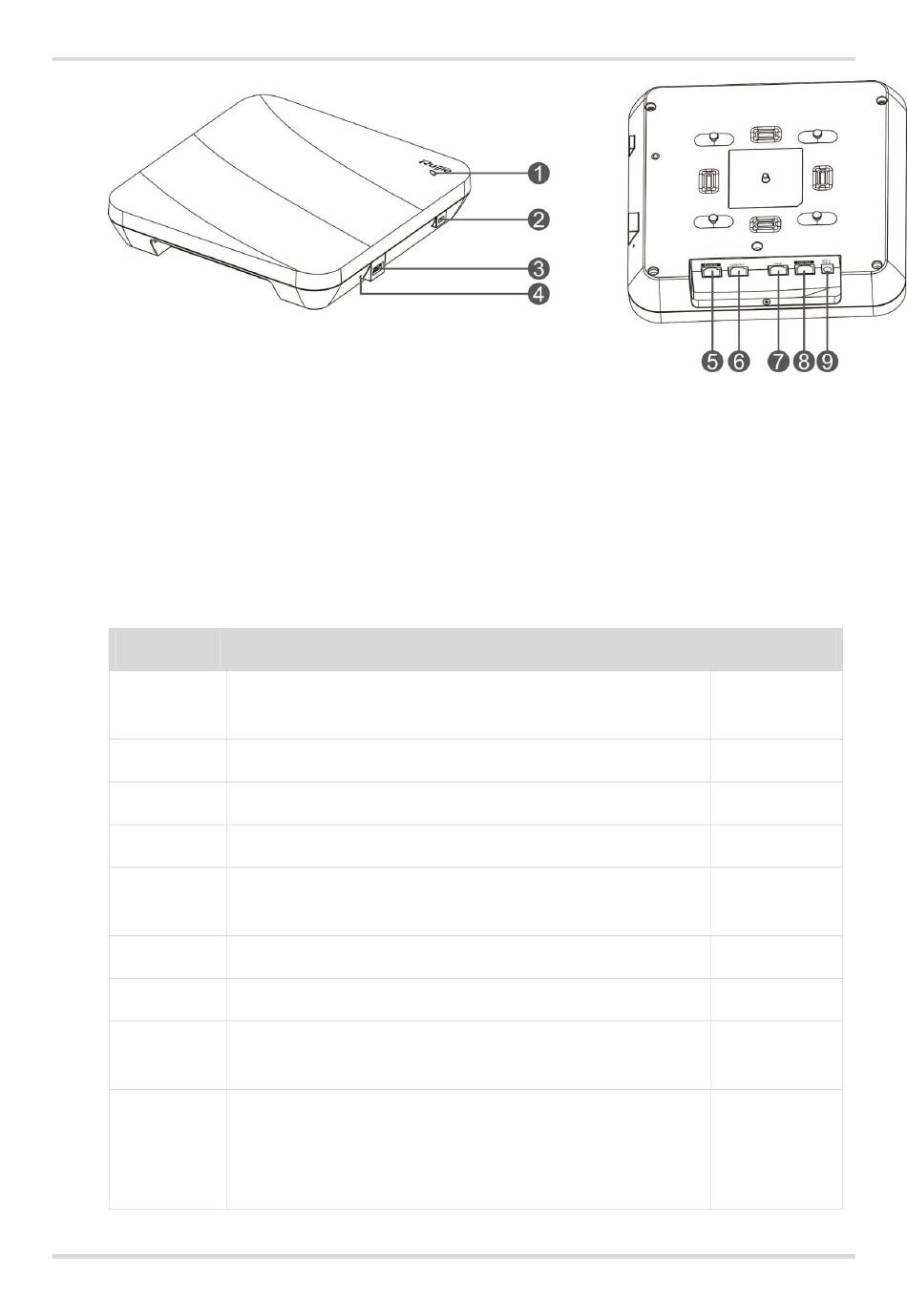

① LED
② Kensington Lock
③ USB port
④ Reset button
⑤ Console port
Meaning
The AP is NOT receiving power or the AP is in Do Not Disturb mode,
which can be disabled by software.
uBoot program initialization is in progress.
Main program initialization is in progress.
Initialization is complete, but there is no Ethernet activity.
Initialization is complete, and the AP is establishing a CAPWAP
connection with an AC.
Program upgrade is in progress. Do not power off the AP.
Normal operation, but no wireless clients are associated with the AP.
Normal operation, and at least one wireless client is associated with
the AP.
The AP is being located.
⑥ LAN 3/IoT port
⑦ LAN 2 port
⑧ LAN 1/PoE port
⑨ Input port for the 48 V DC adapter
4
Product Introduction
Status
Off
Blinking green
Steady green
Blinking red
Steady orange
Blinking orange
Steady blue
Blinking blue
Blinking red
