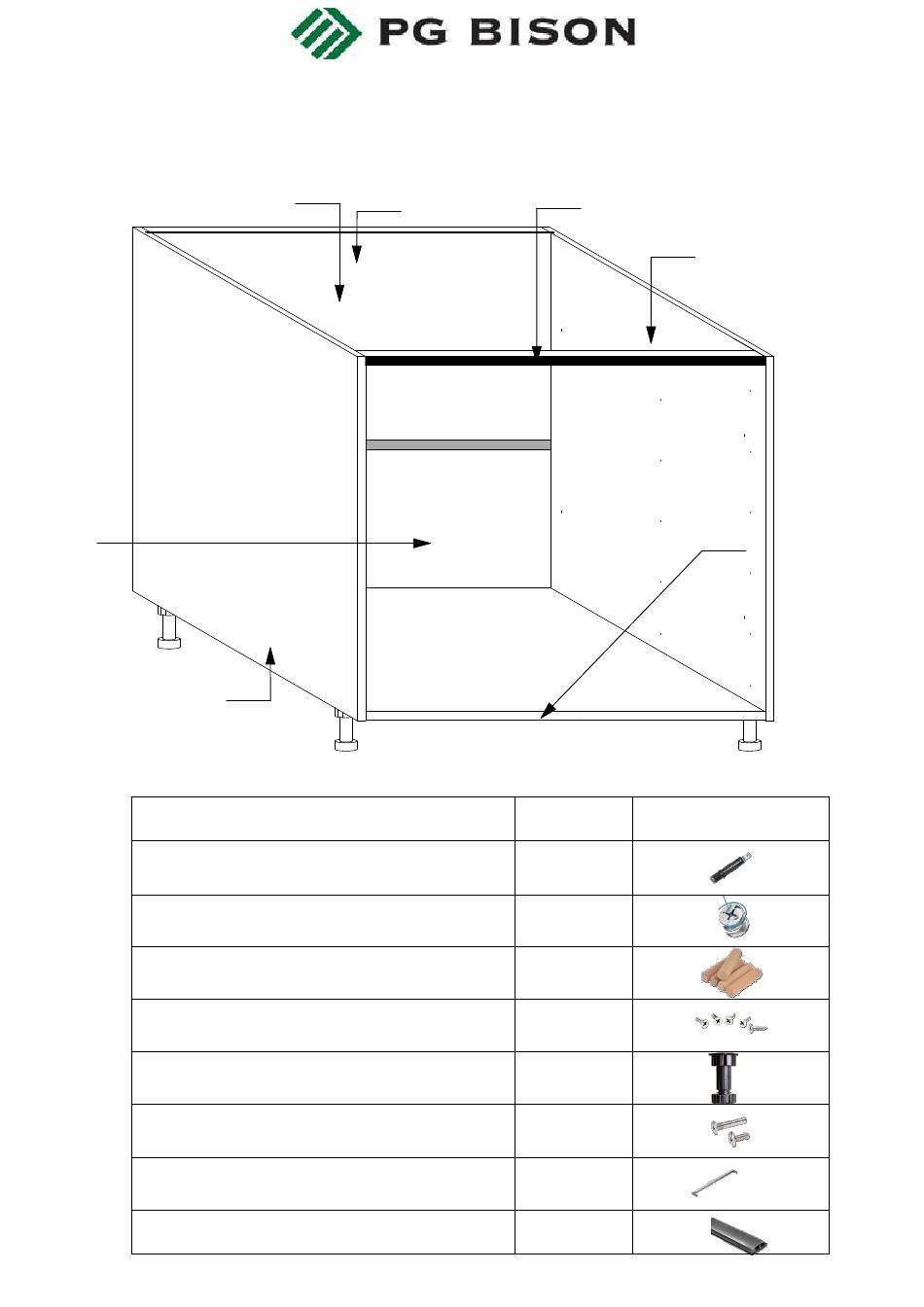

BLUM FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE
BASE CABINET DRAW 1200mm
F - Back
D - Cantenaria Profile
E - Back Rail
B - Visible Side Right
G - Back
C - Floor Bottom
A - Visible Side Left
TOTAL NUMBER OF PANELS: 7
HARDWARE
PRODUCT
QTY
8
Dufix
8
Minifix
Wooden Dowel
16
6
Screw 3.5 x 16mm
4
Plinth Leg With Base H100mm Kit
4
Cabinet Connecting Screw Kit
Cantenaria-profile_Silver
1
H Profile Backer Connector
1
1
Advertisement
Related Manuals for PG BISON BLUM FLATPAX
Summary of Contents for PG BISON BLUM FLATPAX
- Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE BASE CABINET DRAW 1200mm F - Back D - Cantenaria Profile E - Back Rail B - Visible Side Right G - Back C - Floor Bottom A - Visible Side Left TOTAL NUMBER OF PANELS: 7...
-
Page 2: Tools Required
TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F & G). 3. - Page 3 PILOT HOLES KEY FOR SIDE PANELS Holes for the Cantenaria Profile Dowel-Dufix-Dowel holes for panel connection Holes for Position 1 Legrabox/Antaro Runners Cabinet connection holes for Cabinet Holes for Connecting Screws. Position 2 Legrabox/Antaro Runners Holes for Position 3 Legrabox/Antaro Runners Holes for Position 4...
- Page 4 STEP 1 Connect panels C & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 5 STEP 3 Det. 4 Slide 3mm panel G into the groove on panels A & B with the finished side facing inside the cabinet. After, insert the H Profile Backer Connector into panel G as shown (See Det. 4). To finish this step, slide 3mm panel F through the groove on panels A &...
- Page 6 STEP 5 Fix the cantenaria profile as shown below.Step 1; Insert the end cap flush with the profile. (View Det.5). Step 2; Use the screw provided to securely fasten the end dowel to the profile and onto the panel A and panel E. (View Det.6). Step 3; Fix the cantenaria profile to the top using the special connecting plate.(View Det.7) Cantenaria Profile Fixing plate...
- Page 7 STEP 6 X 12 Screw 3.5 x 16mm Det. 4 Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Leg Adjustable Base 100mm in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det.
- Page 8 STEP 8 (T123) Fig. 2 Connect the rails on panel A as shown using Screw 3.5mm x 16mm in the predrilled pilot holes. Do the same, in similar positions, on panel E. This cabinet carries a Height 1, Height 2 and Height 3 drawer box;...
- Page 9 STEP 8 (T222) Fig. 4 Connect the rails on panel A as shown using Screw 3.5mm x 16mm in the predrilled pilot holes. Do the same, in similar positions, on panel E. Only Height 2 Drawer boxes (3) go into this cabinet. STEP 8 (T24) Fig.
- Page 10 STEP 8 (T33) Fig. 6 Connect the rails on panel A as shown using Screw 3.5mm x 16mm in the predrilled pilot holes. Do the same, in similar positions, on panel E. Only Height 3 Drawer boxes (2) go into this cabinet. STEP 9 Insert the runners on panels L &...
- Page 11 STEP 10 Fig. 7 1.5mm Det. 6 Det. 7 Fig. 8 Det. 8 First, confirm that the sizes of the drawer fronts correspond with the Drawer Configuration chosen for your Base Cabinet Draw. Then, connect the drawer fronts to panel K using Screw 4.0 x 30mm as shown in Fig. 7. Refer to Det. 6 - 8 for the correct clearances.
