A - Visible Side Left
HARDWARE
Sys5 Quickfit TL2 Dowel 8 x 34
Sys5 Cam 3000 15 x 14 mm
Wooden Dowel Titus 8 x 30 mm
APC 1 Wall Cabinet Hanger Kit
Screw Nail in Anchor 8 x 80mm Yellow
Cabinet Connecting Screw Kit
Shelf Support Flipper 14mm Kit

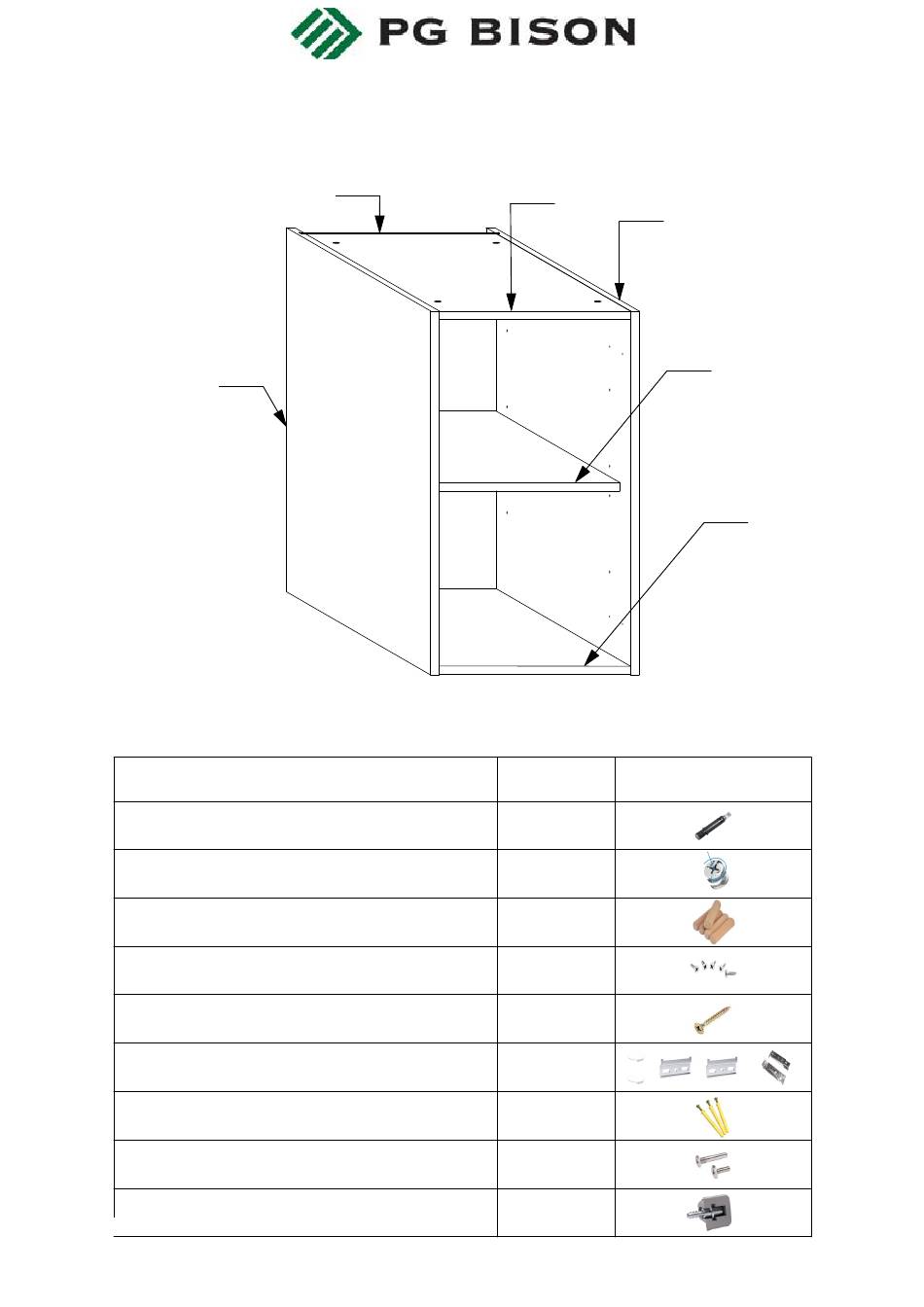

BLUM FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE
WALL CABINET 300mm
E - Back
PRODUCT
Screw 3.5 x 16mm
Screw 4.0 x 30mm
D - Top
TOTAL NUMBER OF PANELS: 6
QTY
8
8
16
8
2
1
4
4
4
1
B - Visible Side Right
F - Adjustable Shelf
C - Wall Bottom
Advertisement
Related Manuals for PG BISON BLUM FLATPAX Series
Summary of Contents for PG BISON BLUM FLATPAX Series
- Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE WALL CABINET 300mm E - Back D - Top B - Visible Side Right F - Adjustable Shelf A - Visible Side Left C - Wall Bottom TOTAL NUMBER OF PANELS: 6 HARDWARE PRODUCT IMAGE Sys5 Quickfit TL2 Dowel 8 x 34 Sys5 Cam 3000 15 x 14 mm...
-
Page 2: Tools Required
TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E & F). 3. - Page 3 PILOT HOLES KEY FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Hinge Plate Holes Cabinet connection holes for Cabinet Connecting Screws. Shelf adjustment holes for flipper euro dowels. Cabinet connection holes for Cabinet Connecting Screws. Hinge Plate Holes Dowel-Dufix-Dowel holes for panel connection...
- Page 4 STEP 1 Connect panels C & D to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C & D as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 5 STEP 3 Slide 3mm panel E through the grooves on panels A & B as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Screw 3.5 x 16mm Screw 4 x 30mm APC 1 Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the red,...
- Page 6 STEP 5 Det. 5 The broken lines indicate the outer boundaries of the wall cabinet. Mark the drill points on the wall with respect to the hanging position of the wall cabinet. Refer to Det. 5 for dimensions. Then, using an 8mm Drill Bit, drill 80mm deep holes through the marked positions on the wall ensuring that the drill bit is perpendicular to the wall surface.
- Page 7 STEP 7 In-depth Adjustment Vertical Adjustment Det. 7 Hang the wall cabinet on the wall by hooking the APC 1 Hangers onto the APC 1 wall plates. See Det. 7. Also see Det. 7 for adjustment details. STEP 8 Det. 8 After mounting and levelling the cabinet, snap in the APC 1 cover caps to conceal the holes on panel F.
- Page 8 STEP 9 Euro Dowel Det. 9 Screw in the Euro Dowels for flipper in the shown positions. Their positions can be adjusted as shown in Det. 9 to change the level of the shelves or to slant the shelves. STEP 10 Det.
- Page 9 STEP 11 Fig. 1 1. Slide in the shelf (Panel F) above the euro dowels as shown. Slide it in until it touches the back. 2. Press down the shelf lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
