PG BISON KINETIC FLATPAX RANGE Assembly Manual

Tall cabinet 600mm

Advertisement

Quick Links

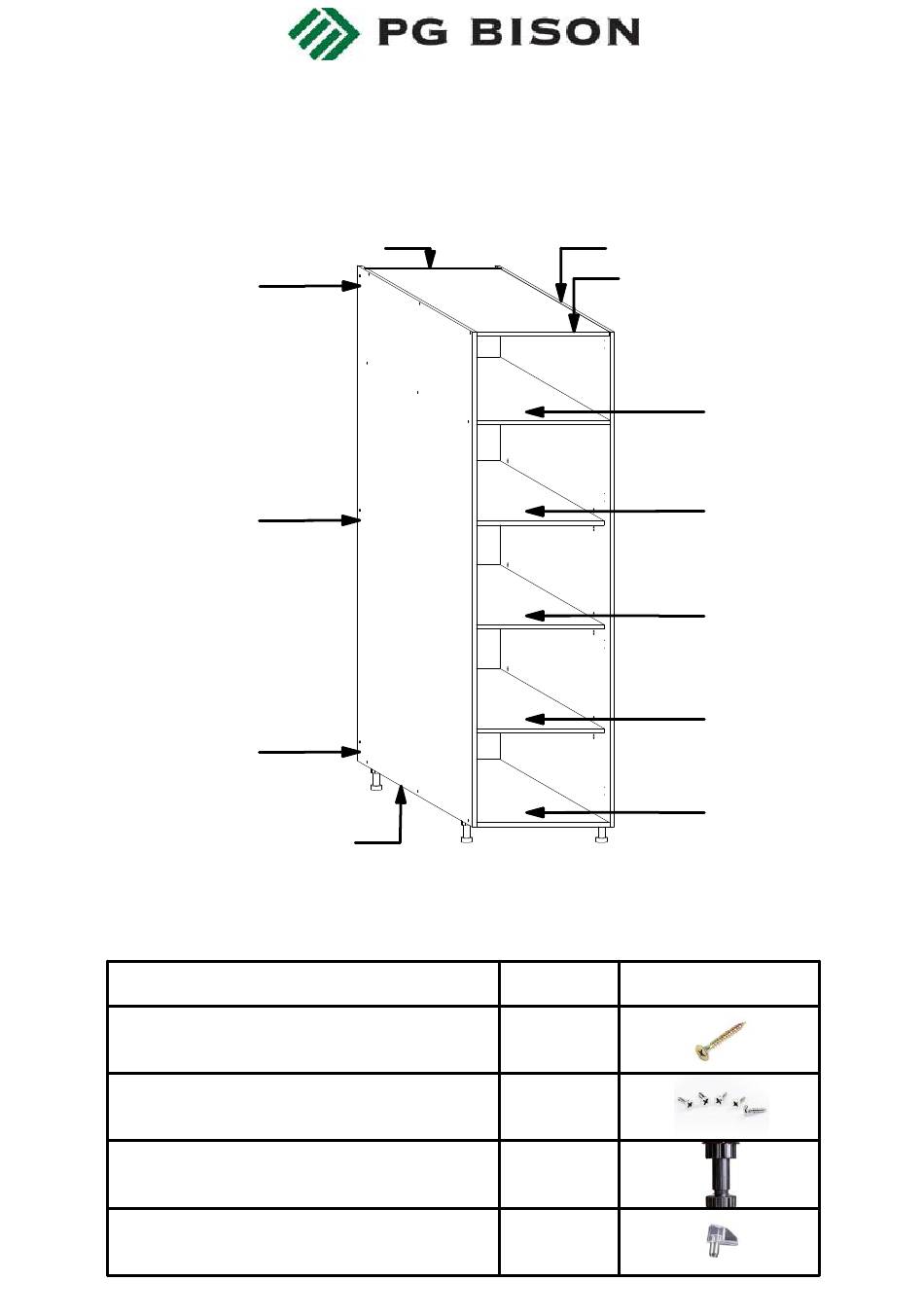

KINETIC FLATPAX RANGE
ASSEMBLY GUIDE
TALL CABINET 600mm
C1 - Back Rail
C2 - Back Rail
C3 - Back Rail
E - Visible Side Left
HARDWARE
PRODUCT
Screw 4.0 x 50mm
Screw 3.5 x 16mm
Plinth Leg With Base H100mm Kit
Shelf Studs
F - Back
TOTAL NUMBER OF PANELS: 12
1
A - Visible Side Right
B - Top
H - Fixed Shelf
G1 - Adjustable Shelf
G2 - Adjustable Shelf
G3 - Adjustable Shelf
D - Floor Bottom
QTY
30
22
4
12

Advertisement

loading
Need help?

Need help?

Do you have a question about the KINETIC FLATPAX RANGE and is the answer not in the manual?

Questions and answers

Summary of Contents for PG BISON KINETIC FLATPAX RANGE

  • Page 1 KINETIC FLATPAX RANGE ASSEMBLY GUIDE TALL CABINET 600mm A - Visible Side Right F - Back B - Top C1 - Back Rail H - Fixed Shelf G1 - Adjustable Shelf C2 - Back Rail G2 - Adjustable Shelf G3 - Adjustable Shelf...
  • Page 2: General Instructions

    GENERAL INSTRUCTIONS 1. Confirm that all panels (12) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C1, C2, C3, D, E, F, G1, G2, G3 & H). 3. Ensure that the panels are laid on a non-abrasive surface when assembling.
  • Page 3 STEP 1 X 15 Screw 4 x 50mm Connect panels B, C1, H, C2, C3 & D to panel A using Screw 4.0 X 50mm in the pre-drilled pilot holes as shown. Refer to Det 1 - 4 below before fastening the screws. STEP 2 Det.
  • Page 4 STEP 3 Slide the 3mm panel (F) into the groove on panels A & E with the finished side facing down. STEP 4 X 10 Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the red, broken lines.
  • Page 5 STEP 5 Det. 5 X 12 Screw 3.5 x 16mm Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Leg Adjustable Base 100mm in the shown positions, aligning with the pre-drilled pilot holes on panel D. Ensure that the orientation is as shown in Det.
  • Page 6 STEP 7 X 12 Shelf Studs Insert the Shelf Studs in the shown positions. STEP 8 Det. 7 Slide in panels G1, G2 & G3 as shown, such that it sits on the four shelf studs. The level of the shelf is adjustable by shifting the position of the shelf studs as shown in Det.
