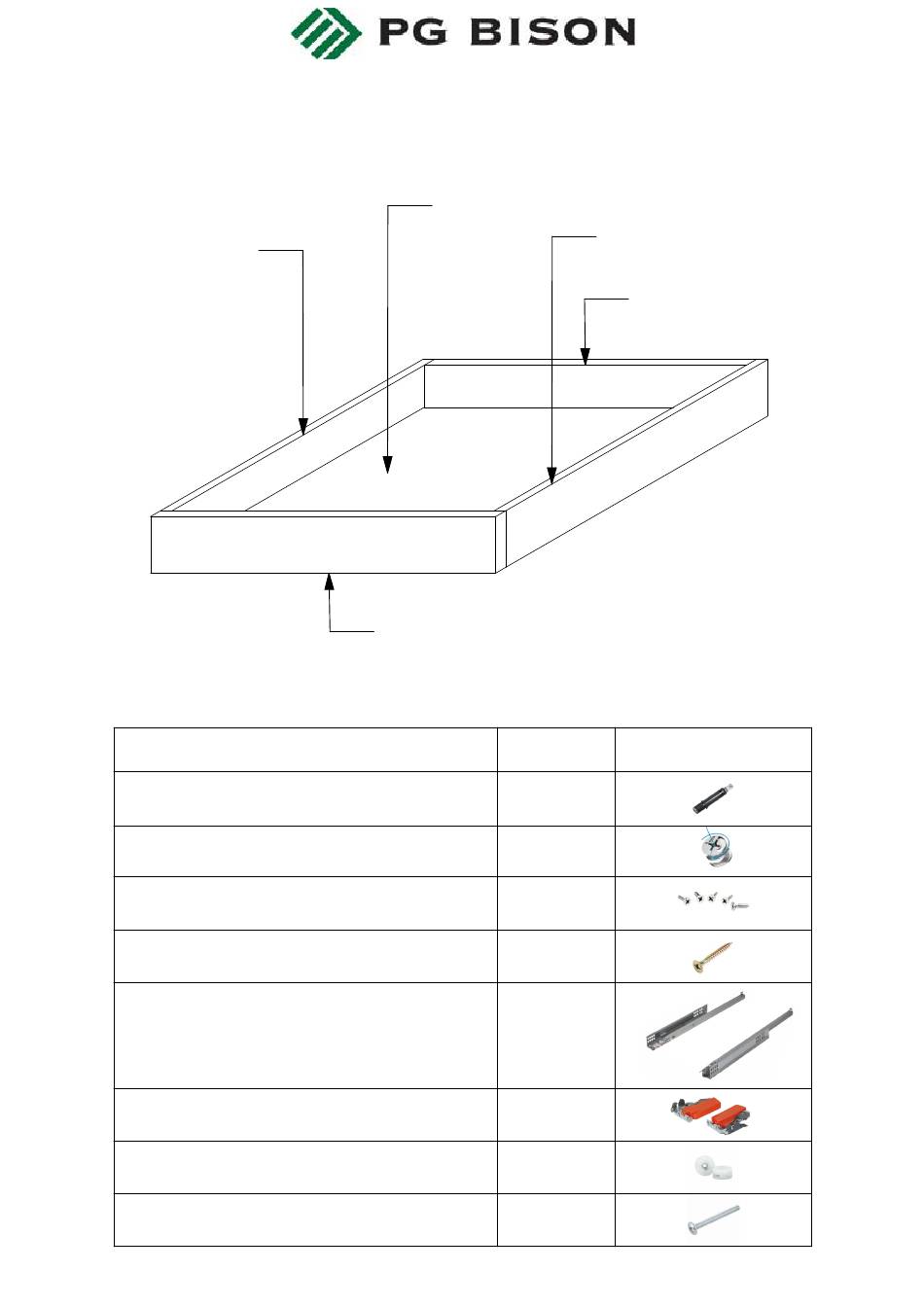

BLUM FLATPAX KITCHEN RANGE

ASSEMBLY GUIDE

TANDEM WOODEN DRAWER BOX HEIGHT 1

K - Drawer Box Bottom

H - Right Box Side

G - Left Box Side

I - Drawer Box Back

J - Drawer Box Sub Front

TOTAL NUMBER OF PANELS: 5

HARDWARE

PRODUCT

QTY


Sys5 Quickfit TL2 Dowel 8 x 34

Sys5 Cam 3000 15 x 14 mm

Screw 3.5 x 16mm

Screw 4.0 x 30mm

Tandem Blumotion Single Extension For

18mm 500mm Left&Right

Tandem Locking Device Left & Right

Front Adjustment Bracket Knock In

Dome Screw M4 x 25
