PG BISON ALULINE QUICKLOC FLATPAX TALL CABINET Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ALULINE QUICKLOC FLATPAX KITCHEN RANGE
L - Back
G - Back Rail
F - Back Rail
E - Back Rail
A - Visible Side Left
HARDWARE
Sys5 Quickfit TL2 Dowel 8 x 34
Sys5 Cam 3000 15 x 14 mm
Wooden Dowel Titus 8 x 30 mm
Screw 3.5 x 16mm
Plinth Leg With Base H100mm Kit
Cabinet Connecting Screw Kit
Shelf Support Flipper 14mm Kit
ASSEMBLY GUIDE
TALL CABINET 300mm
PRODUCT
D - Top
TOTAL NUMBER OF PANELS: 12
QTY
18
18
36
22
4
6
12
1
B - Visible Side Right
H - Fixed Shelf
I - Adjustable Shelf
J - Adjustable Shelf
K - Adjustable Shelf
C - Floor Bottom

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALULINE QUICKLOC FLATPAX TALL CABINET and is the answer not in the manual?

Questions and answers

Related Manuals for PG BISON ALULINE QUICKLOC FLATPAX TALL CABINET

Summary of Contents for PG BISON ALULINE QUICKLOC FLATPAX TALL CABINET

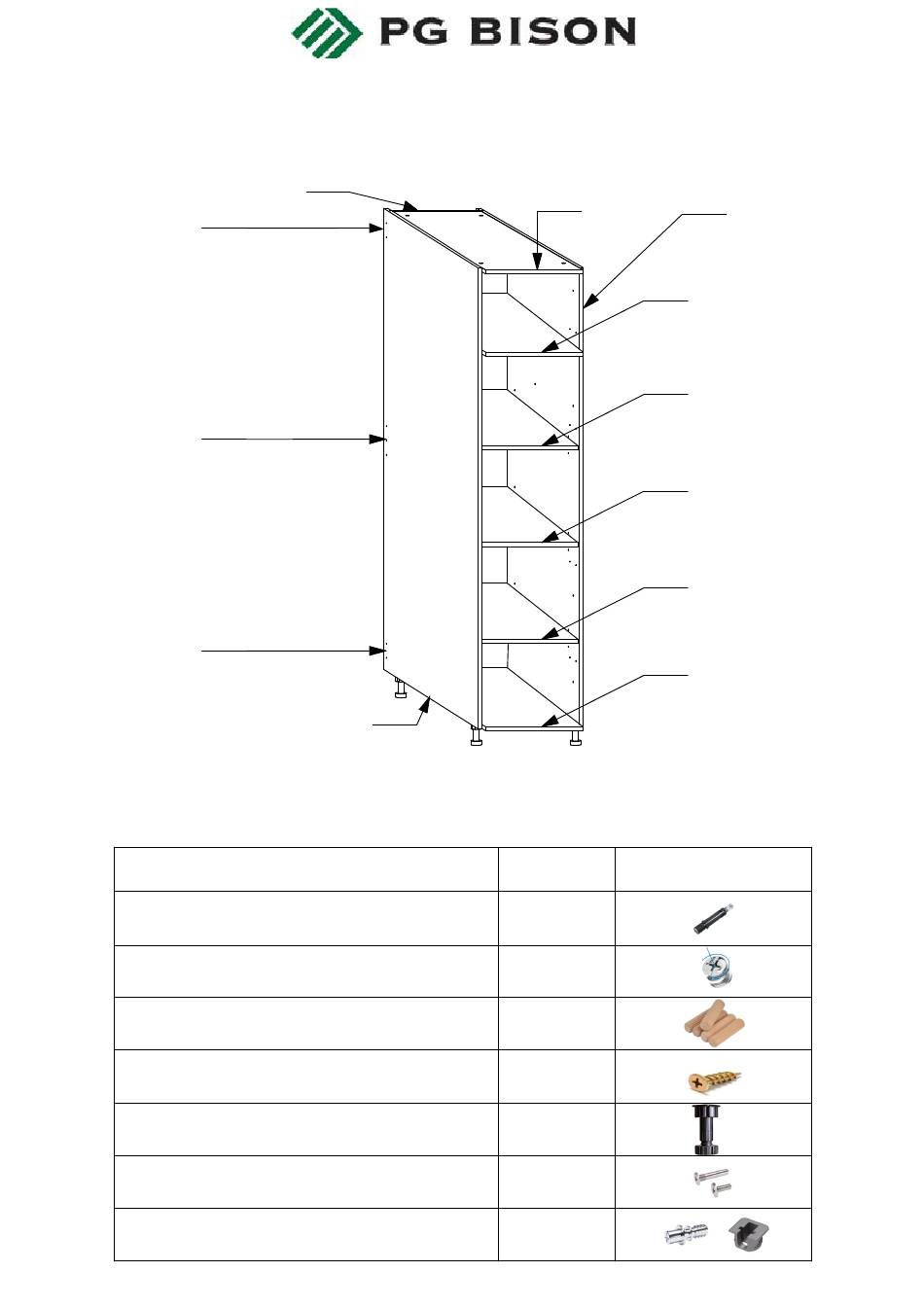

  • Page 1 ALULINE QUICKLOC FLATPAX KITCHEN RANGE ASSEMBLY GUIDE TALL CABINET 300mm L - Back D - Top B - Visible Side Right G - Back Rail H - Fixed Shelf I - Adjustable Shelf F - Back Rail J - Adjustable Shelf K - Adjustable Shelf E - Back Rail C - Floor Bottom...
  • Page 2 TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (12) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F, G, H, I, J, K & L). 3.
  • Page 3 PILOT HOLES GUIDE FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Dowel-Dufix-Dowel holes for panel Cabinet connection connection holes for Cabinet Connecting Screws. Hinge Plate Holes Cabinet connection holes for Cabinet Connecting Screws. Dowel-Dufix-Dowel holes for panel connection Cabinet connection holes for Cabinet Connecting Screws.
  • Page 4 STEP 1 Connect panels C,D, E, F, G & H to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C,D, E, F, G & H as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
  • Page 5 STEP 3 Slide the 3mm panel (L) into the groove on panels A & B with the finished side facing down. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Screw 3.5 x 16mm Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the broken lines.
  • Page 6 STEP 5 Det. 5 X 12 Screw 3.5 x 16mm Plinth Leg With Base H100mm Kit Place the four units of Plinth Leg With Base in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det. 5. Using Screw 3.5 X 16mm, secure the legs onto panel C.
  • Page 7 STEP 7 X 12 Euro Dowel Det. 6 Screw in the Euro Dowels in the shown positions. Their positions can be adjusted as shown in Det. 6 to change the level of the shelves or to slant the shelves. STEP 8 Det.
  • Page 8 STEP 9 Fig. 1 1. Slide in the shelves (Panels I, J & K) above the euro dowels as shown. Slide them in until they touch the back. 2. Press down the shelves lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
  • Page 9 GOLA INSTALLATION GUIDE DOUBLE VERTICAL GOLA STEP 1 Det. 1 Det. 2 For two adjoining Tall Cabinets, connect the provided steel brackets in the shown positions using the provided screws. Use the pre- drilled pilot holes as a guide. See Det. 1 & Det. 2. GSPublisherVersion 288.1.7.100...
  • Page 10 GOLA INSTALLATION GUIDE DOUBLE VERTICAL GOLA STEP 2 Det. 3 Det. 4 PLAN VIEW PLAN VIEW Connect the adjoining cabinets such that the steel brackets interlock. See Det. 3 & Det. 4. GSPublisherVersion 288.1.7.100...
  • Page 11 GOLA INSTALLATION GUIDE DOUBLE VERTICAL GOLA STEP 3 Det. 5 Det. 6 With the steel brackets interlocked, connect the Double Vertical Gola Snap-on brackets in the shown positions using the provided screws. See Det. 5 & Det. 6 for measurements. GSPublisherVersion 288.1.7.100...
  • Page 12 GOLA INSTALLATION GUIDE DOUBLE VERTICAL GOLA STEP 4 Det. 7 Fig. 1 Snap the Double Vertical Gola Profile into the Double Vertical Gola Snap-on brackets. See Det. 7 & Fig. 1. GSPublisherVersion 288.1.7.100...
  • Page 13 GOLA INSTALLATION GUIDE SINGLE VERTICAL GOLA STEP 1 Det. 1 Det. 2 For an end panel connecting to a Tall Cabinet, connect the provided steel brackets in the shown positions using the provided screws. Use the pre-drilled pilot holes as a guide. See Det. 1 & Det. 2. GSPublisherVersion 288.1.7.100...
  • Page 14 GOLA INSTALLATION GUIDE SINGLE VERTICAL GOLA STEP 2 Det. 3 Det. 4 Det. 5 Det. 6 On the end panel, connect the provided steel brackets and Single Vertical Gola Snap-on brackets in the shown positions using the provided screws. See Det. 3 - Det. 6 for measurements. GSPublisherVersion 288.1.7.100...
  • Page 15 GOLA INSTALLATION GUIDE SINGLE VERTICAL GOLA STEP 3 Fig. 1 PLAN VIEW Connect the end panel to the tall cabinet as shown. See Fig. 1 for details. GSPublisherVersion 288.1.7.100...
  • Page 16 GOLA INSTALLATION GUIDE SINGLE VERTICAL GOLA STEP 4 Det. 6 Det. 5 With the steel brackets interlocked and the Single Vertical Gola Snap-on brackets in position, add the provided screws for the Single Vertical Gola Snap-on brackets in the shown positions. See Det. 5 & Det. 6. GSPublisherVersion 288.1.7.100...
  • Page 17 GOLA INSTALLATION GUIDE SINGLE VERTICAL GOLA STEP 5 Det. 7 Fig. 1 Snap the Single Vertical Gola Profile into the Single Vertical Gola Snap-on brackets. See Det. 7 & Fig. 1. GSPublisherVersion 288.1.7.100...
  • Page 18 PULL OUT TRAY - 300mm Tall ASSEMBLY GUIDE ART 255 A 13,5 13,5 13,5 13,5 13,5 13,5 HARDWARE IMAGE PRODUCT Upper Frame(A) Lower Frame(B) Shallow Bottom Runner(C) Upper Runner(D) Door bracket(E) Door bracket frame(F) Fixing Support(G) GSPublisherVersion 820.2.14.100 GSPublisherVersion 98.1.12.100...

  • Page 19: General Instructions

    GENERAL INSTRUCTIONS Always read the full instructions prior to installation. • Consider possible obstructions to your parts & accessories,like hinges inside the cabinet or adjacent cabinet doors and handles, prior to installation. • Make sure you leave plumbing and electrical work to qualified trades people. Never try this yourself.
  • Page 20 STEP 1: Set the shallow bottom runner C respecting the distances and with fix the screws provided. 500MM 28.5 17.5 STEP 2: Set the upper runner D respecting the distances and fix with the screws provided 11.5 13.5 13.5 11.5 P.MIN STEP 3: Fix the adjusting screws on the shallow bottom runner C (see the picture.)
  • Page 21 STEP 4: Fix the frame A in the shallow bottom runner C open and tighten the screws. (see the picture 1) FIG. 1 STEP 5: Loosen the grains ''N''(on the frame A) and slide up the frame B.Block the frame B at the indicated measure by tightening the grains''N''.
  • Page 22 STEP 6: Set the special fixing support G in the frame hole A.(see the picture sequence.) FIG. 1 FIG. 2 STEP 7: Set the door brackets frames F and fix with the special screw. GSPublisherVersion 820.2.14.100...
  • Page 23 STEP 8: Assemble the door bracket E on the door respecting the distances and set it on the door bracket frame F,already assembled. L 300 L 400 L 450 L 500 L 600 GSPublisherVersion 820.2.14.100...
  • Page 24 STEP 9: Go on adjusting the door. GSPublisherVersion 820.2.14.100...
  • Page 25 To make the regulation H loosen all the screws of the fixing support F and work on the eccentric situated in the lower part. A-B: Ahead/Back C-D: Rotation E: Right/Left H: High/Low F: Regulation door inclination GSPublisherVersion 820.2.14.100...
  • Page 26 STEP 10: Insert the cover on the slide. GSPublisherVersion 820.2.14.100...
  • Page 27 ASSEMBLY CLICK! GSPublisherVersion 820.2.14.100...
