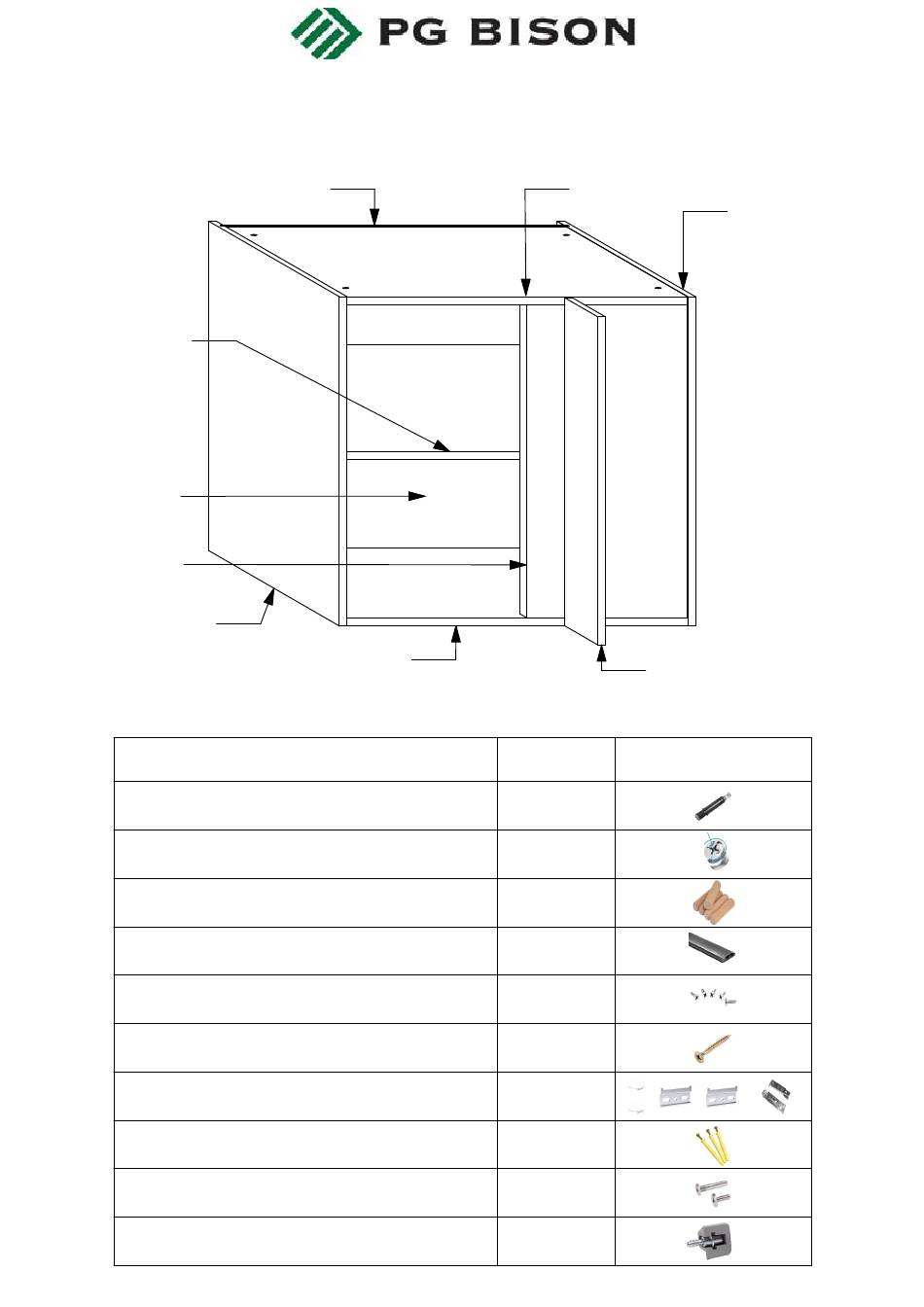

WALL CABINET CORNER - LEFT 850mm
I - Adjustable Shelf
H - Back
E - Panel Dummy
A - Left Side
HARDWARE
Sys5 Quickfit TL2 Dowel 8 x 34
Sys5 Cam 3000 15 x 14 mm
Wooden Dowel Titus 8 x 30 mm
H Profile Backer Connector
APC 1 Wall Cabinet Hanger Kit
Screw Nail in Anchor 8 x 80mm Yellow
Cabinet Connecting Screw Kit
Shelf Support Flipper 14mm Kit
BLUM FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE
G - Back
C - Wall Bottom
PRODUCT
Screw 3.5 x 16mm
Screw 4.0 x 30mm
D - Top
TOTAL NUMBER OF PANELS: 9
QTY
14
14
28
1
12
2
1
4
4
4
1
B - Right Side
F - Spacer
Advertisement
Related Manuals for PG BISON BLUM FLATPAX Series
Summary of Contents for PG BISON BLUM FLATPAX Series
- Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE WALL CABINET CORNER - LEFT 850mm G - Back D - Top B - Right Side I - Adjustable Shelf H - Back E - Panel Dummy A - Left Side C - Wall Bottom F - Spacer TOTAL NUMBER OF PANELS: 9 HARDWARE...
-
Page 2: Tools Required
TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F, G, H & I). 3. - Page 3 PILOT HOLES KEY FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Cabinet connection holes for Cabinet Connecting Screws. Shelf stud holes for flipper euro dowels. Cabinet connection holes for Cabinet Connecting Screws. Dowel-Dufix-Dowel holes for panel connection...
- Page 4 STEP 1 Hinge Plate Holes Hinge Plate Holes Connect panel E to panel D as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel E to panel C as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 5 STEP 3 Connect panels C & D to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Connect panel B to panels C & D as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 6 STEP 5 Det. 4 Slide 3mm panel H into the groove on panels A & B with the finished side facing inside the cabinet. After, insert the H Profile Backer Connector into panel H as shown (See Det. 4). To finish this step, slide 3mm panel G through the groove on panels A &...
- Page 7 STEP 7 Det. 5 The broken lines indicate the outer boundaries of the wall cabinet. Mark the drill points on the wall with respect to the hanging position of the wall cabinet. Refer to Det. 5 for dimensions. Then, using an 8mm Drill Bit, drill 80mm deep holes through the marked positions on the wall ensuring that the drill bit is perpendicular to the wall surface.
- Page 8 STEP 9 In-depth Adjustment Vertical Adjustment Det. 7 Hang the wall cabinet on the wall by hooking the APC 1 Hangers onto the APC 1 wall plates. See Det. 7. Also see Det. 7 for adjustment details. STEP 10 Det. 8 After mounting and levelling the cabinet, snap in the APC 1 cover caps to conceal the holes on panel F.
- Page 9 STEP 11 Connect panel F to panel E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 12 Euro Dowel Det. 9 Screw in the Euro Dowels for flipper in the shown positions on panel A and panel B. Their positions can be adjusted as shown in Det.
- Page 10 STEP 13 Det. 11 Det. 10 Insert the shelf supports for flipper in the shown positions. Confirm that the orientation is as shown in Det. 10 and Det. 11. STEP 14 Fig. 1 Insert the shelf (Panel I) as shown. Raise it above the Euro Dowels with the Shelf Supports facing down.
