PG BISON BLUM FLATPAX Series Assembly Manual

Office furniture range desk 1800mm x 600mm x 760mm
Hide thumbs Also See for BLUM FLATPAX Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
BLUM FLATPAX OFFICE FURNITURE RANGE
DESK 1800mm X 600mm X 760mm
A - Visible Side Left
HARDWARE
Wooden Dowel
Plastic Glide Brown
Cable Management Black
ASSEMBLY GUIDE
C - Back Panel
PRODUCT
Dufix
Minifix
F - Top
D - Fixed Shelf
B - Visible Panel Right
TOTAL NUMBER OF PANELS: 6
QTY
21
21
42
4
2
1
E - Partition

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLUM FLATPAX Series and is the answer not in the manual?

Questions and answers

Related Manuals for PG BISON BLUM FLATPAX Series

Summary of Contents for PG BISON BLUM FLATPAX Series

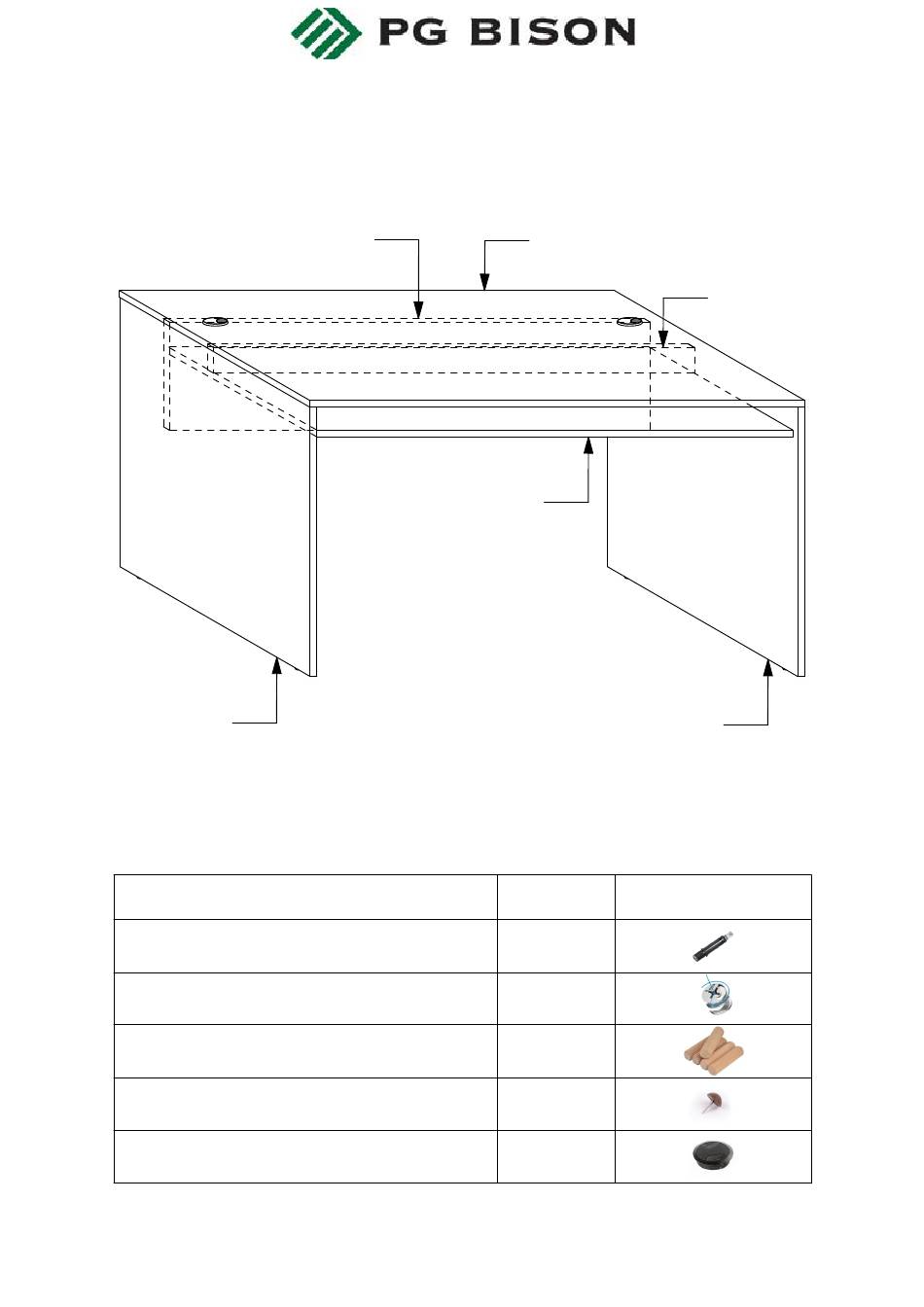

  • Page 1 BLUM FLATPAX OFFICE FURNITURE RANGE ASSEMBLY GUIDE DESK 1800mm X 600mm X 760mm C - Back Panel F - Top E - Partition D - Fixed Shelf A - Visible Side Left B - Visible Panel Right TOTAL NUMBER OF PANELS: 6 HARDWARE PRODUCT IMAGE...
