G - Back
A - Visible Side Left
HARDWARE
Plinth Leg With Base H100mm Kit
Cabinet Connecting Screw Kit
H Profile Backer Connector
Shelf Support Flipper 14mm Kit
Cantenaria-profile_Silver
BLUM FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE
BASE CABINET 1000mm
F - Back
PRODUCT
Dufix
Minifix
Wooden Dowel
Screw 3.5 x 16mm
E - Back Rail
TOTAL NUMBER OF PANELS: 8
QTY
8
8
16
22
4
4
1
4
1
1
D - Cantenaria Profile
B - Visible Side Right
H - Adjustable Shelf
C - Floor Bottom
Advertisement
Table of Contents
Related Manuals for PG BISON BLUM FLATPAX
Summary of Contents for PG BISON BLUM FLATPAX

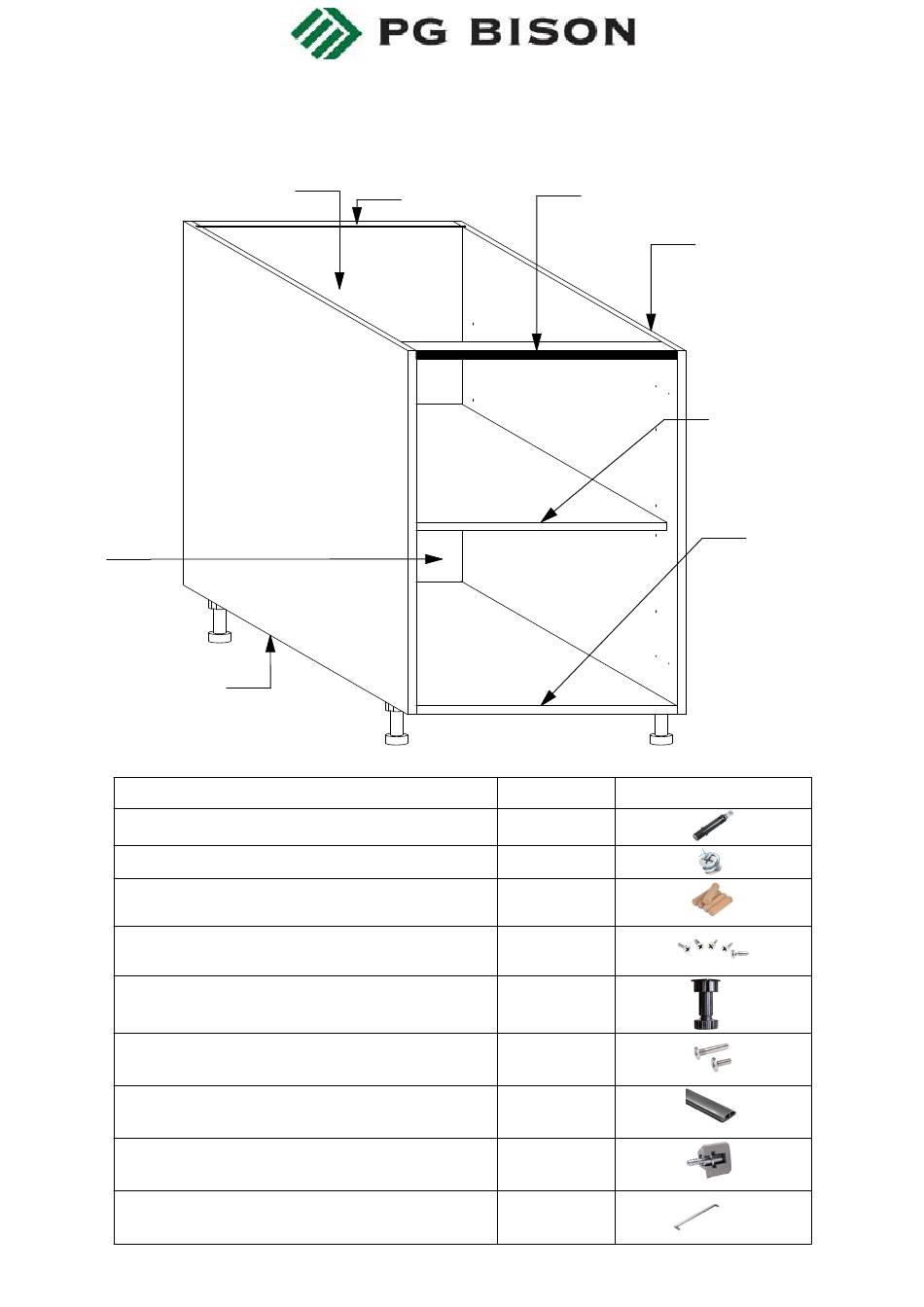

- Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE BASE CABINET 1000mm F - Back D - Cantenaria Profile E - Back Rail B - Visible Side Right H - Adjustable Shelf C - Floor Bottom G - Back A - Visible Side Left...
- Page 2 TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, E, F, G & H). 3.
- Page 3 STEP 1 Connect panels C & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 4 STEP 3 Det. 4 Slide 3mm panel G into the groove on panels A & B with the finished side facing inside the cabinet. After, insert the H Profile Backer Connector into panel G as shown (See Det. 4). To finish this step, slide 3mm panel F through the groove on panels A &...
- Page 5 STEP 5 X 12 Screw 3.5 x 16mm Det. 5 Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Leg Adjustable Base 100mm in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det.
- Page 6 STEP 7 Fix the cantenaria profile as shown below.Step 1; Insert the end cap flush with the profile. (View Det.5). Step 2; Use the screw provided to securely fasten the end dowel to the profile and onto the panel A and panel E. (View Det.6). Step 3; Fix the cantenaria profile to the top using the special connecting plate.(View Det.7) Cantenaria Profile Fixing plate...
- Page 7 STEP 8 Euro Dowel Det. 6 Screw in the Euro Dowels for flipper in the shown positions. Their positions can be adjusted as shown in Det. 6 to change the level of the shelves or to slant the shelves. STEP 9 Det.
- Page 8 STEP 10 Fig. 1 1. Slide in the shelf (Panel H) above the euro dowels as shown. Slide it in until it touches the back. 2. Press down the shelf lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
