PG BISON BLUM FLATPAX KITCHEN Assembly Manual

Wall cabinet 200mm

Advertisement

Quick Links

BLUM FLATPAX KITCHEN RANGE
A - Visible Side Left
HARDWARE
Wooden Dowel
Screw 3.5 x 16mm
Screw 4.0 x 30mm
APC 1 Wall Cabinet Hanger Kit
Screw Nail in Anchor 8 x 80mm Yellow
Cabinet Connecting Screw Kit
ASSEMBLY GUIDE

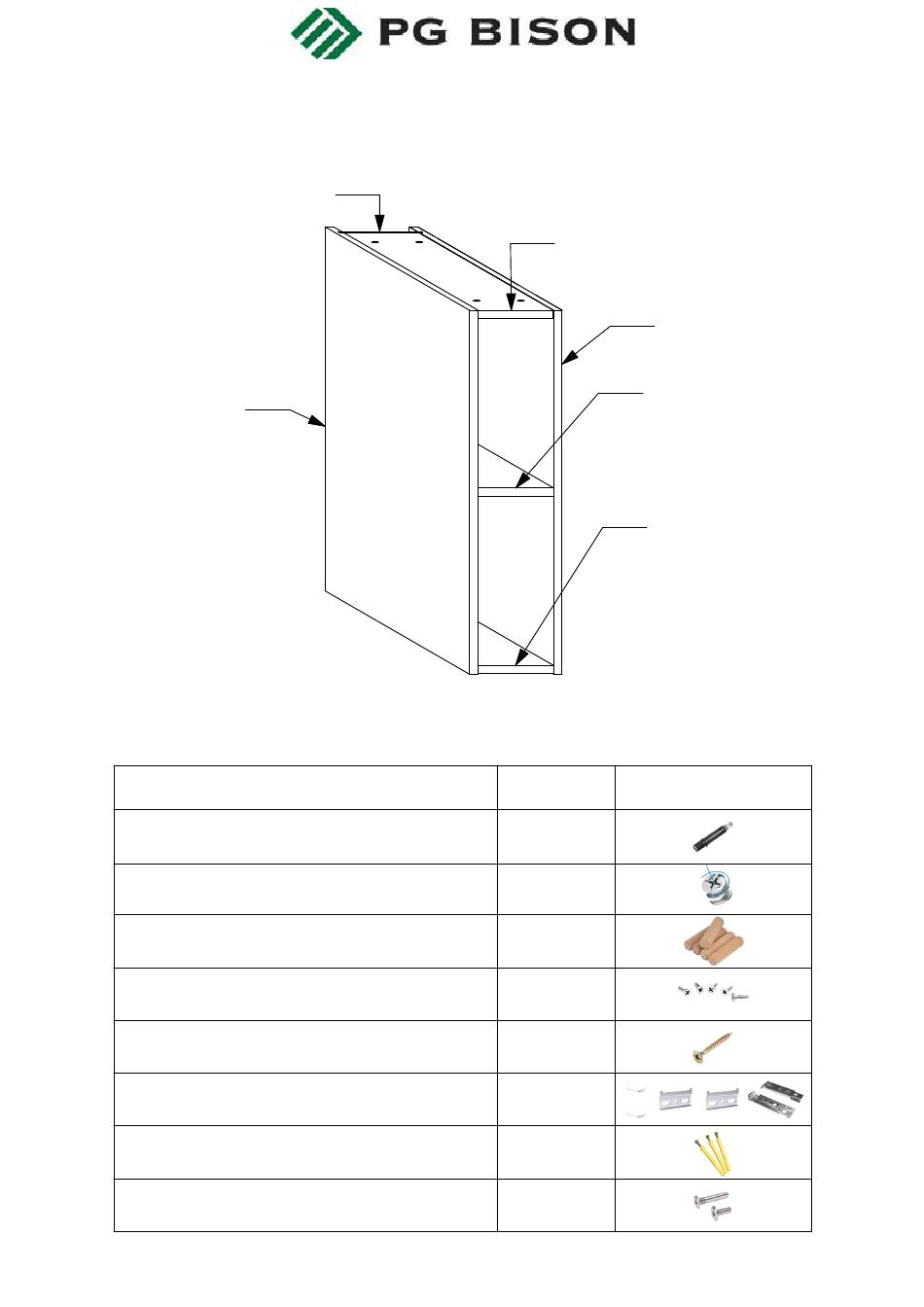

WALL CABINET 200mm
F - Back
PRODUCT
Dufix
Minifix
E - Top
TOTAL NUMBER OF PANELS: 6
QTY
12
12
24
6
2
1
4
4
1
B - Visible Side Right
D - Fixed Shelf
C - Wall Bottom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUM FLATPAX KITCHEN and is the answer not in the manual?

Questions and answers

Summary of Contents for PG BISON BLUM FLATPAX KITCHEN

  • Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE WALL CABINET 200mm F - Back E - Top B - Visible Side Right D - Fixed Shelf A - Visible Side Left C - Wall Bottom TOTAL NUMBER OF PANELS: 6 HARDWARE PRODUCT...
  • Page 2 TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E & F). 3.
  • Page 3 PILOT HOLES KEY FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Cabinet connection holes for Cabinet Connecting Screws. Dowel-Dufix-Dowel holes for panel connection Cabinet connection holes for Cabinet Connecting Screws. Dowel-Dufix-Dowel holes for panel connection...
  • Page 4 STEP 1 Connect panels C, D & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C, D & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
  • Page 5 STEP 3 Slide 3mm panel F through the grooves on panels A & B as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Screw 3.5 x 16mm Screw 4 x 30mm Screw 3.5 x 16mm APC 1 First, check the diagonal of the cabinet by measuring the two distances indicated by the red,...
  • Page 6 STEP 5 Det. 4 The broken lines indicate the outer boundaries of the wall cabinet. Mark the drill points on the wall with respect to the hanging position of the wall cabinet. Refer to Det. 4 for dimensions. Then, using an 8mm Drill Bit, drill 80mm deep holes through the marked positions on the wall ensuring that the drill bit is perpendicular to the wall surface.
  • Page 7 STEP 7 In-depth Adjustment Vertical Adjustment Det. 6 Hang the wall cabinet on the wall by hooking the APC 1 Hangers onto the APC 1 wall plates. See Det. 6. Also see Det. 6 for adjustment details. STEP 8 Det. 7 After mounting and levelling the cabinet, snap in the APC 1 cover caps to conceal the holes on panel F.
