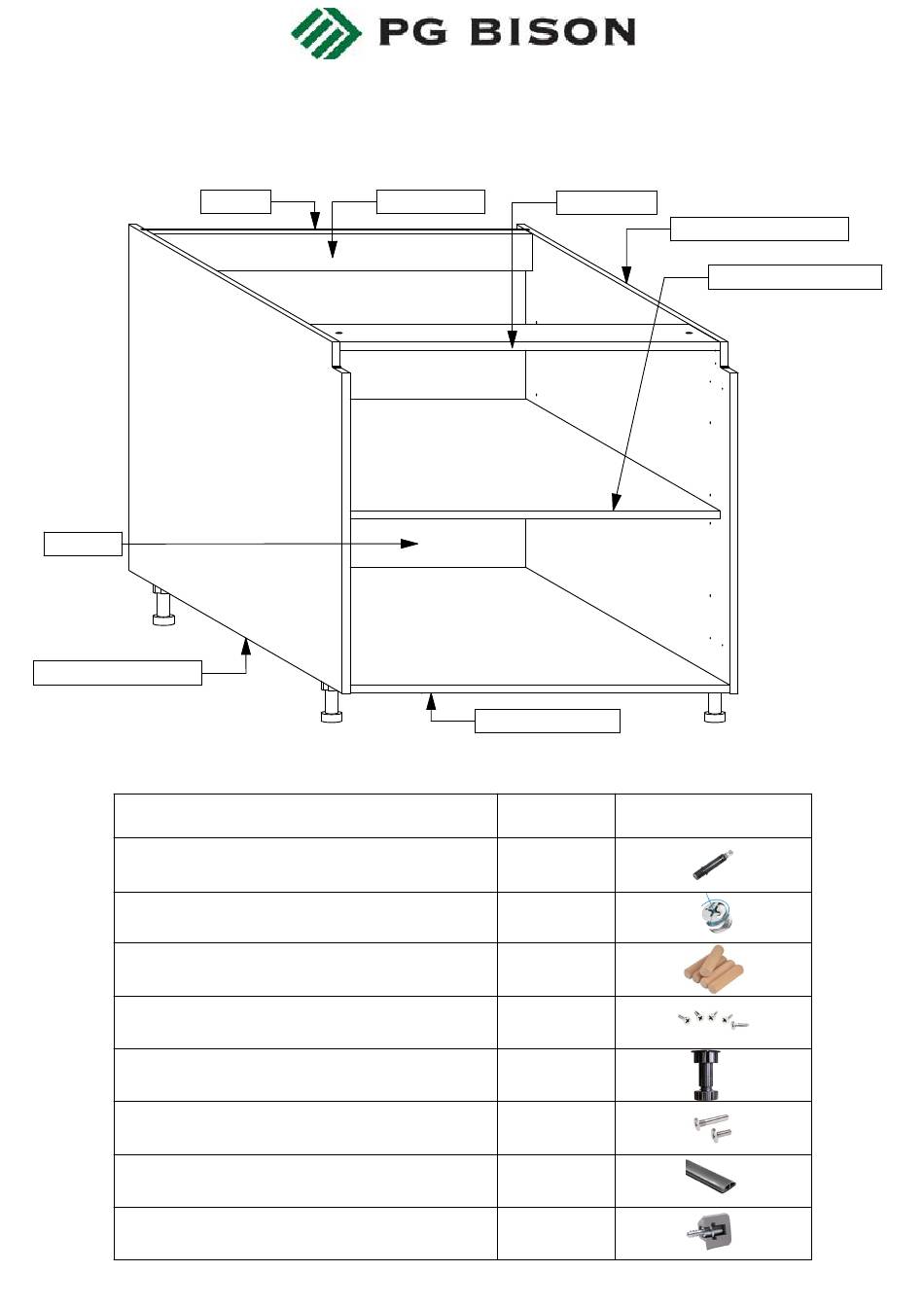

BLUM GOLA FLATPAX KITCHEN RANGE
F - Back
G - Back
A - Visible Side Left
HARDWARE
Plinth Leg With Base H100mm Kit
Cabinet Connecting Screw Kit
H Profile Backer Connector
Shelf Support Flipper 14mm Kit
ASSEMBLY GUIDE
BASE CABINET 900mm
E - Back Rail
PRODUCT
Dufix
Minifix
Wooden Dowel
Screw 3.5 x 16mm
D - Top Rail
C - Floor Bottom
TOTAL NUMBER OF PANELS: 8
QTY
8
8
16
22
4
4
1
4
1
B - Visible Side Right
H - Adjustable Shelf
Advertisement
Related Manuals for PG BISON BLUM GOLA FLATPAX KITCHEN
Summary of Contents for PG BISON BLUM GOLA FLATPAX KITCHEN
- Page 1 BLUM GOLA FLATPAX KITCHEN RANGE ASSEMBLY GUIDE BASE CABINET 900mm F - Back E - Back Rail D - Top Rail B - Visible Side Right H - Adjustable Shelf G - Back A - Visible Side Left C - Floor Bottom...
-
Page 2: Tools Required
TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (8) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F, G & H). 3. - Page 3 PILOT HOLES GUIDE FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Holes for Gola Provision for J Gola Bracket X Profile Dowel-Dufix-Dowel holes for panel connection Hinge Plate Holes Cabinet connection holes for Cabinet Connecting Screws. Shelf stud holes for flipper euro dowels.
- Page 4 STEP 1 Connect panels C,D & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C, D & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 5 STEP 3 Det. 4 Slide 3mm panel G into the groove on panels A & B with the finished side facing inside the cabinet. Next, insert the H Profile Backer Connector into panel G as shown (See Det. 4). To finish this step, slide 3mm panel F through the groove on panels A &...
- Page 6 STEP 5 X 12 Screw 3.5 x 16mm Det. 5 Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Plinth Leg With Base in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det.
- Page 7 STEP 7 Euro Dowel Det. 6 Screw in the Euro Dowels in the shown positions. Their positions can be adjusted as shown in Det. 6 to change the level of the shelves or to slant the shelves. STEP 8 Det. 8 Det.
- Page 8 STEP 9 Fig. 1 1. Slide in the shelf (Panel H) above the euro dowels as shown. Slide it in until it touches the back. 2. Press down the shelf lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
- Page 9 GOLA INSTALLATION GUIDE J - GOLA WALL SECTION per cabinet Fig. 2 for each Bracket X Screw 3.5 x 16mm Bracket Y 1. Place the J - Gola Profile on the provided notch as shown. Insert Bracket X Bracket Y in the channel on the backside of the Gola Profile. See per cabinet Fig.
