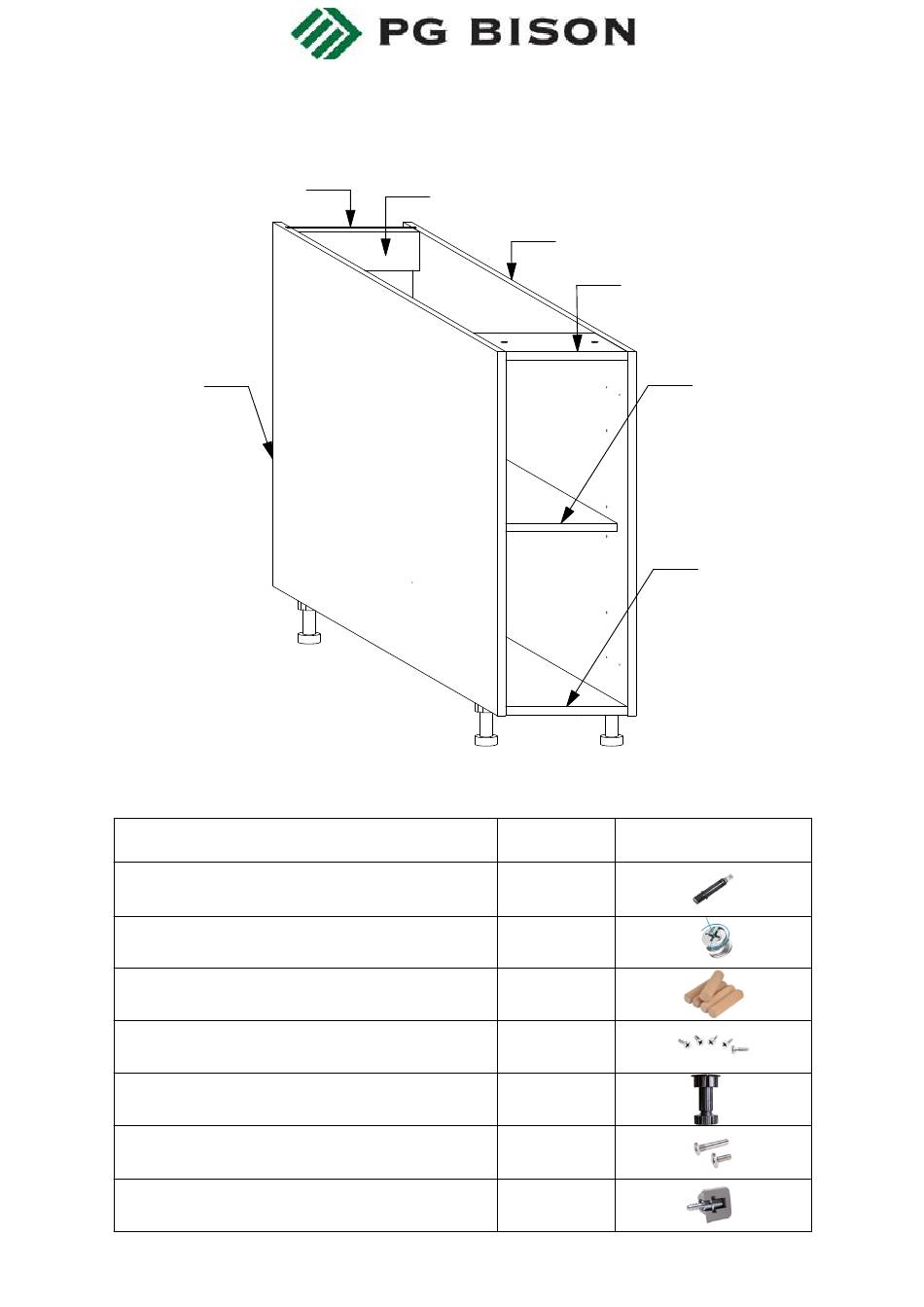

PG BISON BLUM FLATPAX KITCHEN Assembly Manual

Base cabinet 300mm

Advertisement

Quick Links

A - Visible Side Left
HARDWARE
Plinth Leg With Base H100mm Kit
Cabinet Connecting Screw Kit
Shelf Support Flipper 14mm Kit
BLUM FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE
BASE CABINET 300mm
F - Back
PRODUCT
Dufix
Minifix
Wooden Dowel
Screw 3.5 x 16mm
E - Back Rail
B - Visible Side Right
TOTAL NUMBER OF PANELS: 7
QTY
8
8
16
18
4
4
4
1
D - Top Rail
G - Adjustable Shelf
C - Floor Bottom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUM FLATPAX KITCHEN and is the answer not in the manual?

Questions and answers

Summary of Contents for PG BISON BLUM FLATPAX KITCHEN

  • Page 1 BLUM FLATPAX KITCHEN RANGE ASSEMBLY GUIDE BASE CABINET 300mm F - Back E - Back Rail B - Visible Side Right D - Top Rail G - Adjustable Shelf A - Visible Side Left C - Floor Bottom TOTAL NUMBER OF PANELS: 7...
  • Page 2 TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (7) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F & G). 3.
  • Page 3 PILOT HOLES KEY FOR SIDE PANELS Dowel-Dufix-Dowel holes for panel connection Dowel-Dufix-Dowel holes for panel connection Hinge Plate Holes Cabinet connection holes for Cabinet Connecting Screws. Shelf stud holes for flipper euro dowels. Cabinet connection holes for Cabinet Connecting Screws. Hinge Plate Holes Dowel-Dufix-Dowel holes for panel connection...
  • Page 4 STEP 1 Connect panels C,D & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C, D & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
  • Page 5 STEP 3 Slide the 3mm panel (F) into the groove on panels A & B with the finished side facing down. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the broken lines.
  • Page 6 STEP 5 X 12 Screw 3.5 x 16mm Det. 5 Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Leg Adjustable Base 100mm in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det.
  • Page 7 STEP 7 Euro Dowel Det. 6 Screw in the Euro Dowels for flipper in the shown positions. Their positions can be adjusted as shown in Det. 6 to change the level of the shelves or to slant the shelves. STEP 8 Det.
  • Page 8 STEP 9 Fig. 1 1. Slide in the shelf (Panel G) above the euro dowels as shown. Slide it in until it touches the back. 2. Press down the shelf lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
