PG BISON KINETIC FLATPAX RANGE WALL CABINET Assembly Manual

Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual

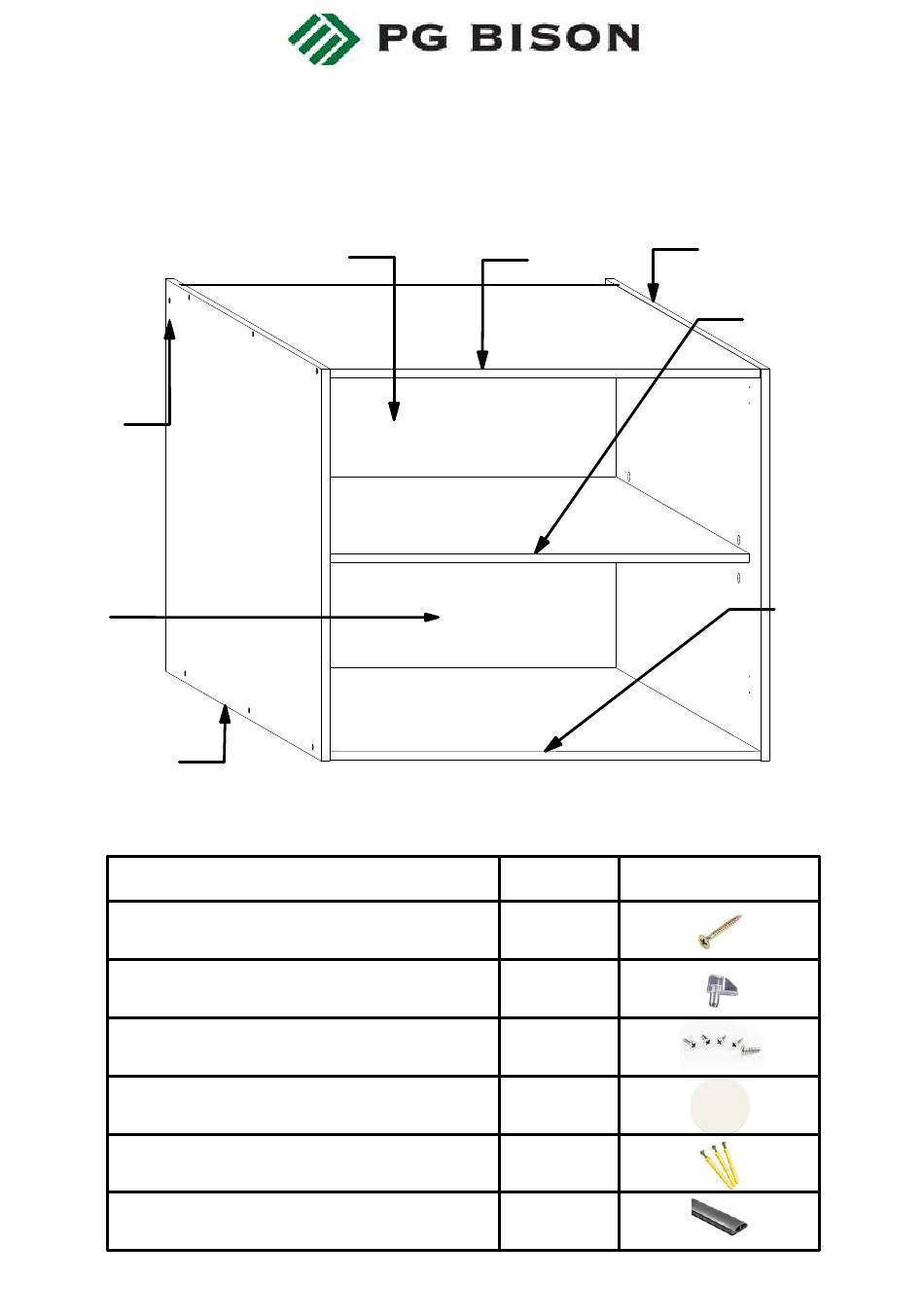

C - Back Rail
H - Back
E - Visible Side Left
HARDWARE
H Profile Backer Connector
KINETIC FLATPAX RANGE
ASSEMBLY GUIDE
WALL CABINET 900mm
F - Back
PRODUCT
Screw 4.0 x 50mm
Shelf Studs
Screw 3.5 x 16mm
Screw Cap Super White
Screw 3.5 x 16mm
B - Top
TOTAL NUMBER OF PANELS: 8
QTY
16
4
10
2
2
1
1
A - Visible Side Right
G - Adjustable Shelf
D - Wall Bottom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINETIC FLATPAX RANGE WALL CABINET and is the answer not in the manual?

Questions and answers

Related Manuals for PG BISON KINETIC FLATPAX RANGE WALL CABINET

Summary of Contents for PG BISON KINETIC FLATPAX RANGE WALL CABINET

  • Page 1 KINETIC FLATPAX RANGE ASSEMBLY GUIDE WALL CABINET 900mm A - Visible Side Right F - Back B - Top G - Adjustable Shelf C - Back Rail D - Wall Bottom H - Back E - Visible Side Left TOTAL NUMBER OF PANELS: 8 HARDWARE PRODUCT IMAGE...
  • Page 2 GENERAL INSTRUCTIONS 1. Confirm that all panels (8) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F, G & H). 3. Ensure that the panels are laid on a non-abrasive surface when assembling.
  • Page 3 STEP 1 Screw 4 x 50mm Connect panels B, C & D to panel A using Screw 4.0 X 50mm in the pre-drilled pilot holes as shown. Refer to Det 1 - 3 below before fastening the screws. STEP 2 Det.
  • Page 4 STEP 3 Det. 4 Slide 3mm panel H into the groove on panels A & E with the finished side facing inside the cabinet. After, insert the H Profile Backer Connector into panel H as shown (See Det. 4). To finish this step, slide 3mm panel F into the groove on panels A &...
  • Page 5 STEP 5 Ø 8 mm 50 mm 50 mm Det. 5 Cabinet Front View Using an 8mm Drill Bit, gently drill two holes through panels F & C in the positions shown in Det. 5. Countersink the holes such that the Screw Head will be flush with the surface of panel F.
  • Page 6 STEP 7 Shelf Studs With the cabinet hanged on the wall, insert the Shelf Studs in the shown positions. STEP 8 Det. 7 Slide in panel G as shown, such that it sits on the four shelf studs. The level of the shelf is adjustable by shifting the position of the shelf studs as shown in Det.
