PG BISON QUICKLOC FLATPAX Assembly Manual

Tandem wooden drawer box height 1
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
QUICKLOC FLATPAX KITCHEN RANGE
ASSEMBLY GUIDE

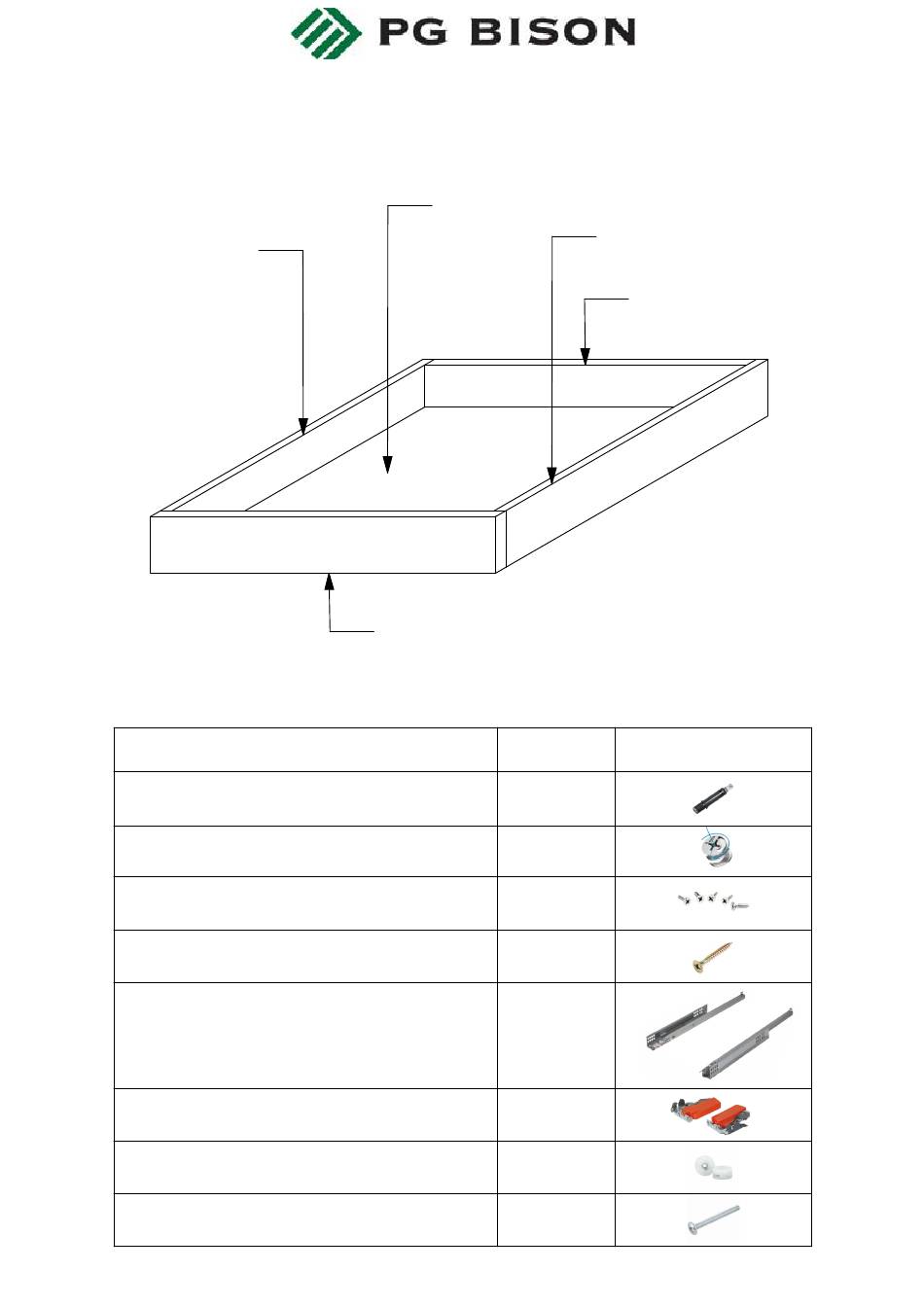

TANDEM WOODEN DRAWER BOX HEIGHT 1
K - Drawer Box Bottom
H - Right Box Side
G - Left Box Side
I - Drawer Box Back
J - Drawer Box Sub Front
TOTAL NUMBER OF PANELS: 5
HARDWARE
PRODUCT
QTY
8
Sys5 Quickfit TL2 Dowel 8 x 34
Sys5 Cam 3000 15 x 14 mm
8
12
Screw 3.5 x 16mm
Screw 4.0 x 30mm
2
Tandem Blumotion Single Extension For
1
18mm 500mm Left&Right
Tandem Locking Device Left & Right
2
Front Adjustment Bracket Knock In
2
Dome Screw M4 x 25
2
1
