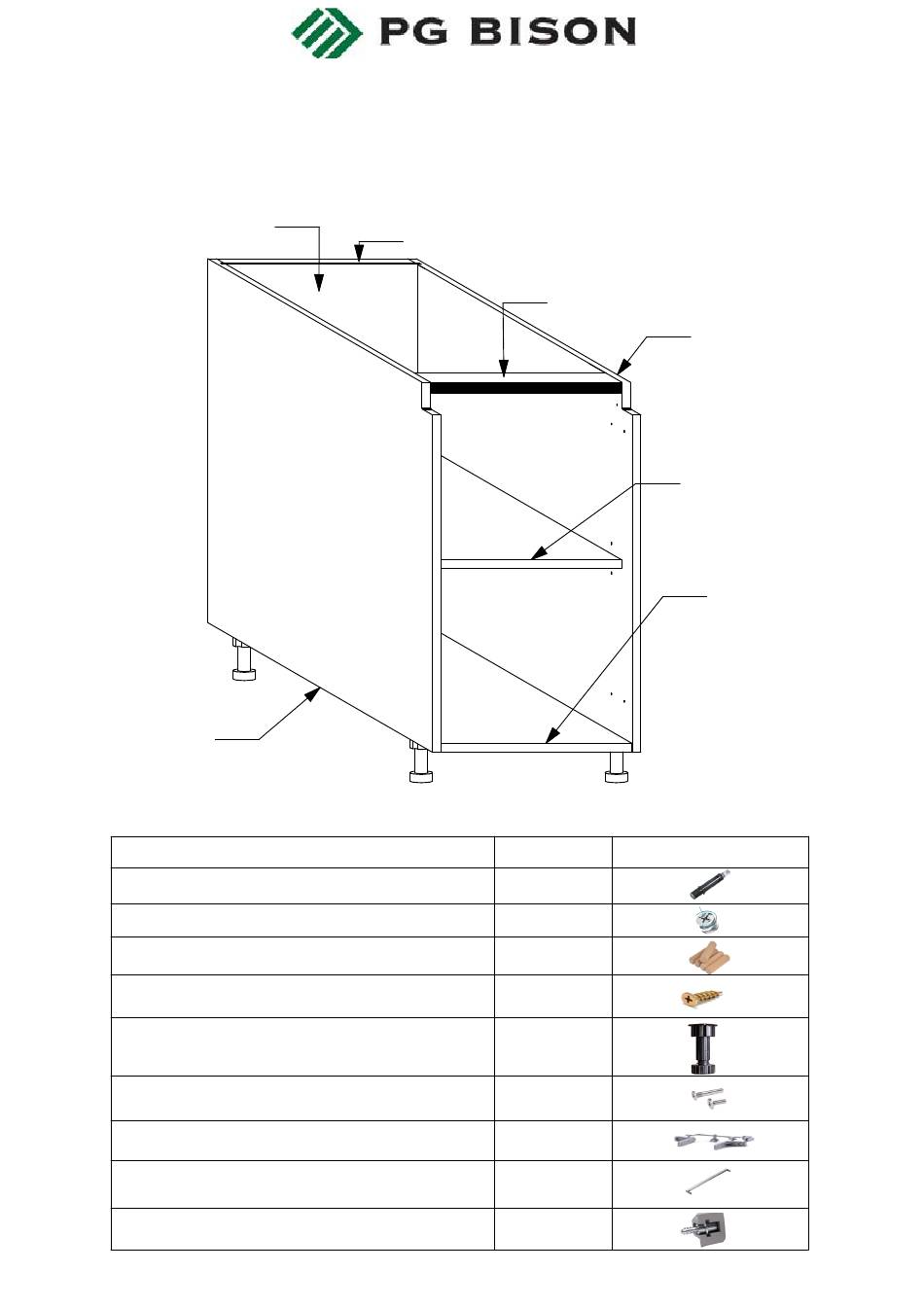

ALULINE QUICKLOC FLATPAX KITCHEN RANGE
F - Back
A - Visible Side Left
HARDWARE
Sys5 Quickfit TL2 Dowel 8 x 34
Sys5 Cam 3000 15 x 14 mm
Wooden Dowel Titus 8 x 30 mm
Plinth Leg With Base H100mm Kit
Cabinet Connecting Screw Kit
Clip and fix plate for cantenaria
Cantenaria-profile_Silver
Shelf Support Flipper 14mm Kit
ASSEMBLY GUIDE
BASE CABINET 250mm
PRODUCT
Screw 3.5 x 16mm
E - Back Rail
D - Cantenaria Profile
TOTAL NUMBER OF PANELS: 6
QTY
6
6
12
24
4
4
2
1
4
1
B - Visible Side Right
G - Adjustable Shelf
C - Floor Bottom

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALULINE QUICKLOC FLATPAX and is the answer not in the manual?

Questions and answers

Summary of Contents for PG BISON ALULINE QUICKLOC FLATPAX

  • Page 1 ALULINE QUICKLOC FLATPAX KITCHEN RANGE ASSEMBLY GUIDE BASE CABINET 250mm F - Back E - Back Rail D - Cantenaria Profile B - Visible Side Right G - Adjustable Shelf C - Floor Bottom A - Visible Side Left HARDWARE...
  • Page 2: Tools Required

    TOOLS REQUIRED Screw Driver Rubber Mallet Pozi Bit (PZ2) 8mm Drill Bit Cordless Drill (Pozidriv Head) GENERAL INSTRUCTIONS 1. Confirm that all panels (7) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E, F & G). 3.
  • Page 3 PILOT HOLES GUIDE FOR SIDE PANELS Cantenaria Profile Holes Holes for Gola Provision for J Gola Bracket X Profile Dowel-Dufix-Dowel holes for panel connection Hinge Plate Holes Cabinet connection holes for Cabinet Connecting Screws. Shelf stud holes for flipper euro dowels. Cabinet connection holes for Cabinet Connecting Screws.
  • Page 4 STEP 1 Connect panels C & E to panel A as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel B to panels C & E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
  • Page 5 STEP 3 Slide the 3mm panel (F) into the groove on panels A & B with the finished side facing down. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the broken lines.
  • Page 6 STEP 5 X 12 Screw 3.5 x 16mm Det. 5 Plinth Leg With Base H100mm Kit Flip the cabinet up-side down as shown. Place the four units of Plinth Leg With Base in the shown positions, aligning with the pre-drilled pilot holes on panel C. Ensure that the orientation is as shown in Det.
  • Page 7 STEP 7 Euro Dowel Det. 6 Screw in the Euro Dowels in the shown positions. Their positions can be adjusted as shown in Det. 6 to change the level of the shelves or to slant the shelves. STEP 8 Det. 8 Det.
  • Page 8 STEP 9 Fig. 1 1. Slide in the shelf (Panel G) above the euro dowels as shown. Slide it in until it touches the back. 2. Press down the shelf lightly such that the euro dowels snap into the shelf supports. See Fig. 1. See the Door Installation guide for further instructions.
  • Page 9 STEP 10 Fix the cantenaria profile as shown below.Step 1; Insert the end cap flush with the profile. (View Det.5). Step 2; Use the screw provided to securely fasten the end dowel to the profile and onto the panel A and panel E. (View Det.6). Step 3; Fix the cantenaria profile to the top using the special connecting plate.(View Det.7) Cantenaria Profile Fixing plate...
  • Page 10 STEP 11 (GOLA PROFILE INSTALLATION) Brackets X Bracket X Det. 9 Using Screw 3.5 x 16mm, connect the shown Brackets X on panels A & B as shown. Use the pre- drilled pilot holes to align the brackets. See Det. 9. Bracket Y Fig.
