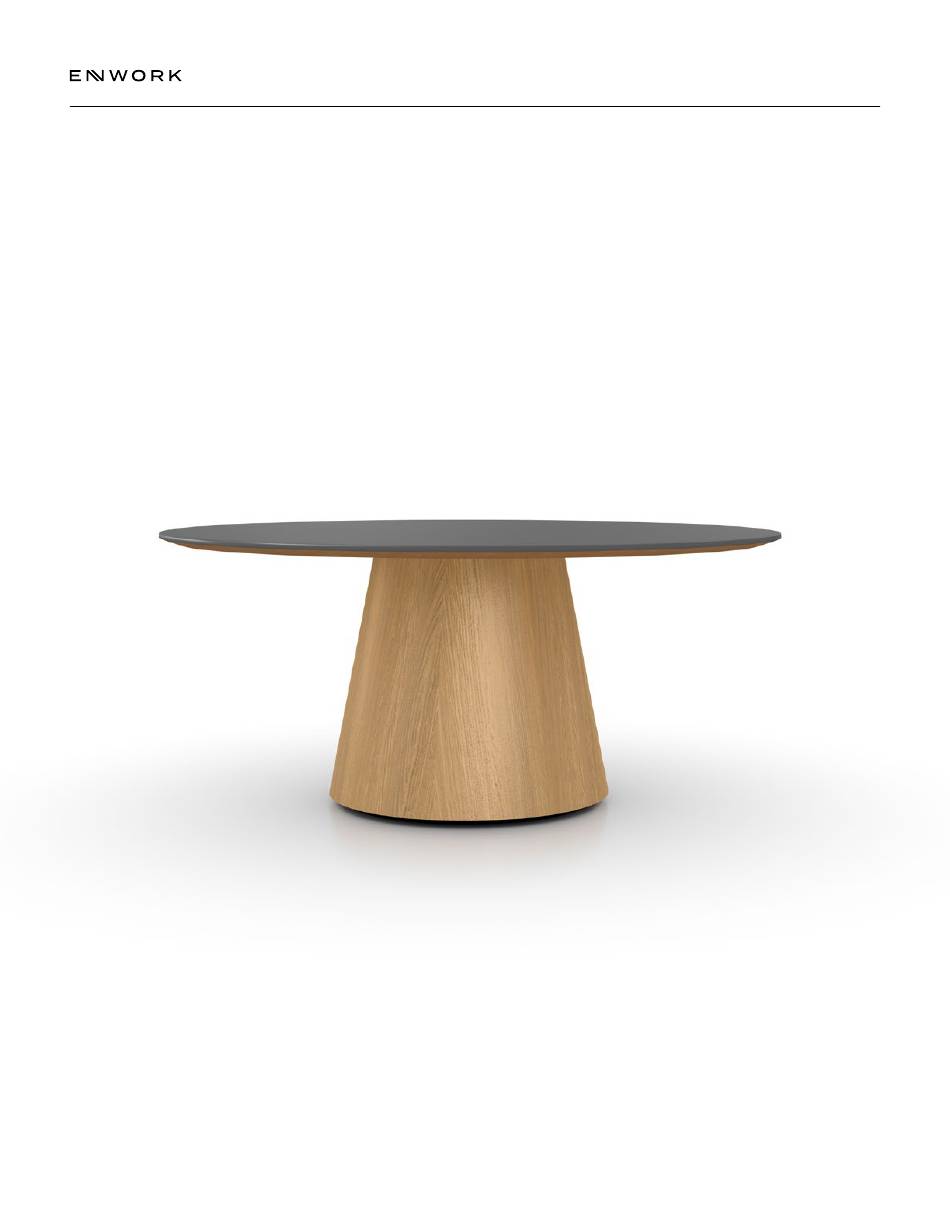

- Page 1 Foundation Tapered Drum Base Installation Guide TI0085 - Foundation Tapered Drum Base Installation Guide – Rev 01.24.24...
- Page 2 TOOLS & SUPPLIES REQUIRED DRILL SQUARE HEAD DRIVER LEVEL RATCHET 1/2" SOCKET ADJUSTABLE WRENCH TI0085 - Foundation Tapered Drum Base Installation Guide...
- Page 3 INCLUDED PARTS & FASTENERS 5/16-18 X 1-1/4" HEX HEAD 5/16-18 SERRATED HEX NUT #10 X 1" PHILLIPS PAN HEAD BASE SERRATED FLANGE BOLT TOP PLATE WORKSURFACE SANDBAGS TI0085 - Foundation Tapered Drum Base Installation Guide...
- Page 4 Place the worksurface on the base. Make sure to align the worksurface Flange Bolts and 5/16-18 Serrated Hex Nuts. pockets with the ribs located in the top plate. Use #10 X 1" Phillips Pan Head screws to secure the connection. TI0085 - Foundation Tapered Drum Base Installation Guide...
- Page 5 800.815.7251 enwork.com 12900 Christopher Drive Lowell, MI 49331 Specifications subject to change without notice.
