Summary of Contents for Enwork Foundation TI0018

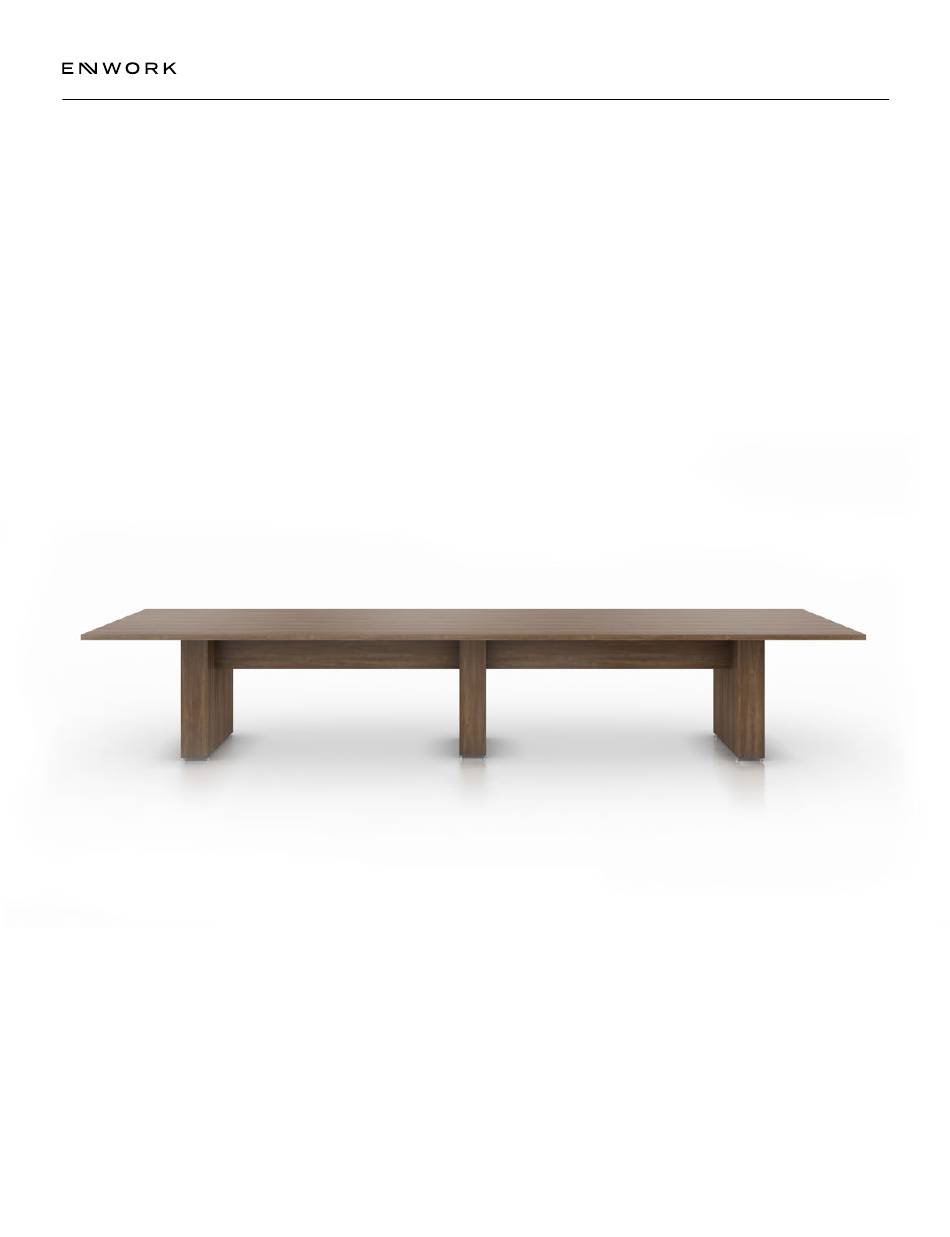

- Page 1 Foundation Base Kit Installation Guide TI0018 - Foundation Base Kit Installation Guide – Rev 12.19.23...
-
Page 2: Tools And Supplies Required
TOOLS & SUPPLIES REQUIRED DRILL PHILLIPS HEAD DRIVER SQUARE HEAD DRIVER ALLEN/HEX KEY LEVEL PHILLIPS SCREW DRIVER TI0018 - Foundation Base Kit Installation Guide... - Page 3 INCLUDED PARTS & FASTENERS END BASE COLUMN MID BASE COLUMN END BASE TOP PLATE MID BASE TOP PLATE TROUGH ASSEMBLY ZIPBOLT SURFACE CONNECTOR PHILLIPS HEAD COMBI DOWEL PHILLIPS HEAD CAM #10 X 1" PHILLIPS PAN HEAD TI0018 - Foundation Base Kit Installation Guide...
-
Page 4: Base Assembly
1 — BASE ASSEMBLY FIG 1.1 (TOP PLATE ATTACHMENT) FIG 1.2 (BASE COLUMN PLACEMENT) Attach the End Base and Mid Base Top Plates to the End Base and Mid Base Place column bases roughly trough length apart. Install Phillips Head Columns using Phillips Head Combi Dowels and Phillips Head Cams. -
Page 5: Top Assembly
2 — TOP ASSEMBLY FIG 2.1 (MULTI-PIECE TOP ASSEMBLY) FIG 2.2 (TOP ATTACHMENT) For applications with a mid base, attach the power between the Confirm table assembly is level and in its final location, then attach the top troughs (across the Mid Base Column) with a Wire Jumper, then install to the table base using #10 x 1"... - Page 6 800.815.7251 enwork.com 12900 Christopher Drive Lowell, MI 49331 Specifications subject to change without notice.
