Crestron PROAMP(I)-7X400
Operations Guide – DOC. 6976A
PROCISE™ Surround Sound Amplifier

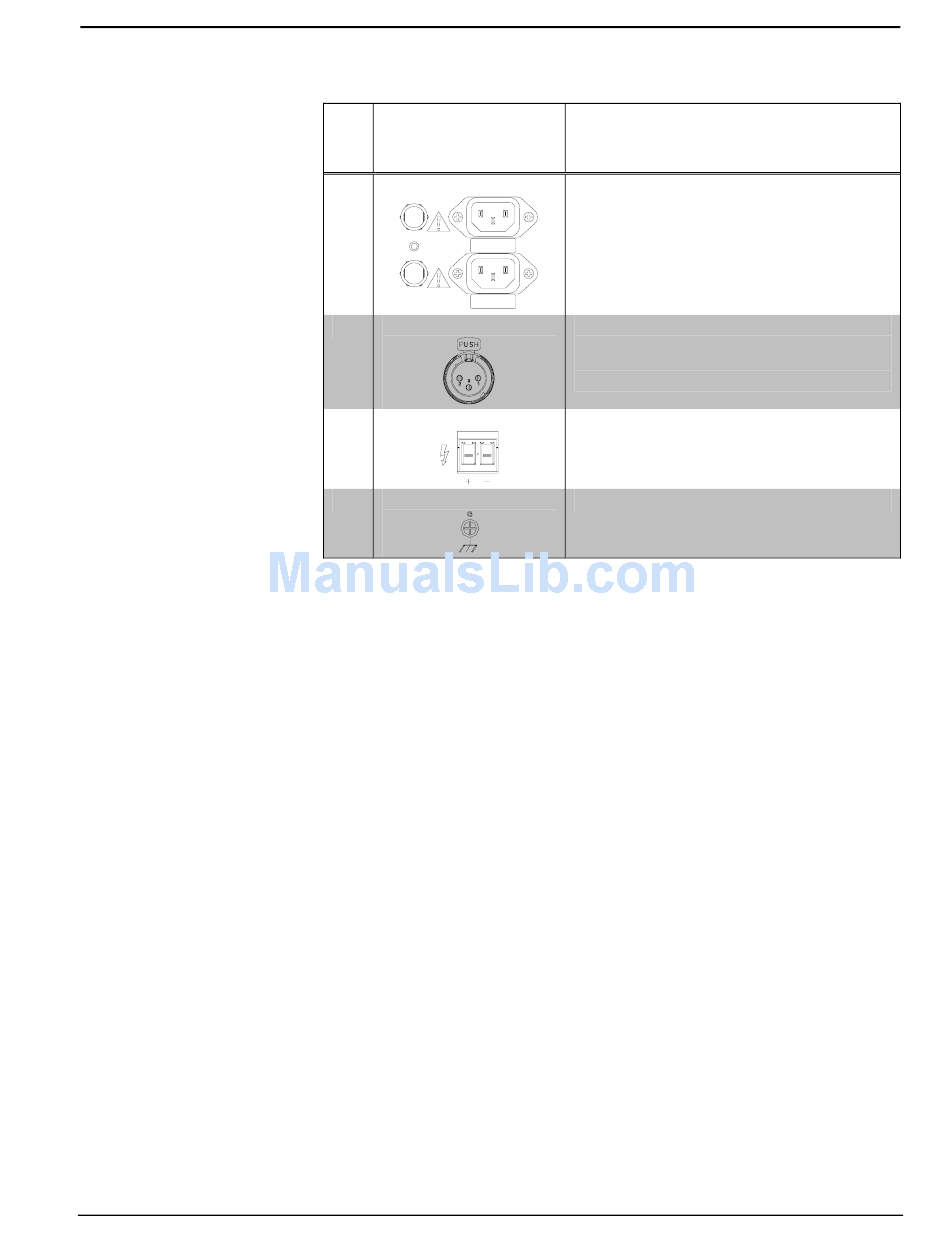

Connectors, Controls & Indicators (Continued)
# CONNECTORS*,
CONTROLS &
INDICATORS
14 POWER INPUT
15 INPUT
16 OUTPUT
17 GROUND
* Interface connectors for the NET and OUTPUT ports are provided with the unit.
PROCISE™ Surround Sound Amplifier: PROAMP(I)-7X400 • 9
DESCRIPTION
(2) IEC C14 male chassis plugs, main power
inputs 1 & 2;
Mate with removable power cords (included);
Each input includes a 15 Amp circuit breaker
(PROAMPI-7X400 has 8 Amp breakers);
Requires two independent AC feeds
(7) 3-pin XLR female;
Balanced line-level audio inputs;
Input Impedance: 24k Ohms balanced;
Maximum Input Level: 4 V
rms
(7) 2-pin 7.62mm 41A detachable terminal
blocks;
Power amplifier outputs;
Wire Size: Terminals accept up to 10 AWG
(1) 6-32 screw, chassis ground lug
balanced
