Summary of Contents for Crestron CNAMPX-2X60
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON...
-
Page 3: Table Of Contents
Crestron CNAMPX-2X60 Contents 2 Channel Professional Audio Amplifier: CNAMPX-2X60 Description... 1 Functional Description ... 1 Physical Description... 1 Leading Specifications... 5 Setup ... 6 Network Wiring... 6 Rack Mounting ... 7 Hookup ... 8 Typical Room Configuration... 10 Programming with SIMPL Windows ... 10 Configure CNAMPX-2X60 Program ... -
Page 5: Channel Professional Audio Amplifier: Cnampx-2X60

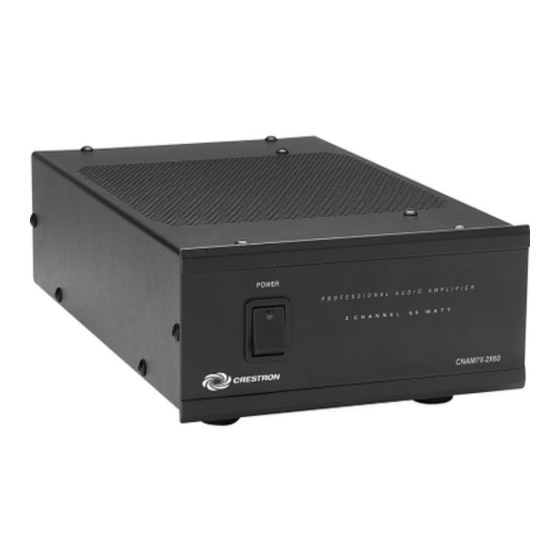

The CNAMPX-2X60 is also available as an international version. All of the features are identical with the exceptions of the international AC power requirements and power cord and the unit nomenclature of CNAMPXI-2X60. - Page 6 (LED). All audio input and output, Cresnet system, and power connections are made on the rear panel. Four rubber feet on the base of the unit provide stability and prevent slippage. CNAMPX-2X60 Physical Views 2 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 INPUTS CAUTION SUMMING...
- Page 7 Crestron CNAMPX-2X60 General Safety Precautions CNAMPX-2X60 Rear Ports and Indicators A number of ports and indicators are provided on the rear of the CNAMPX-2X60. Refer to the illustration below and the descriptions on the next page. CNAMPX-2X60 Rear Panel Operations Guide – DOC. 8178 2 Channel Professional Audio Amplifier Read all information and instructions provided in this operations guide.
- Page 8 INPUTS The two RCA connectors are typically used to connect unbalanced pre-amplified audio to the CNAMPX-2X60. The left channel audio is input to the LEFT connector (with the white center insulator); the right channel audio to the RIGHT connector (with the red center insulator).
-
Page 9: Leading Specifications
LED indicator. This two-position (ON/OFF) switch enables operating power to the CNAMPX-2X60 circuitry. It must be positioned to ON when the unit is to be controlled by the control system. When the Cresnet system 24VDC is applied to the NET connector on the rear panel and the switch is set to ON, AC power is applied to the unit and the LED (green) illuminates. -
Page 10: Setup
Crestron Application Builder (version 1.1 or later), may be used to program the CNAMPX-2X60. If used, only 2 audio channels will be utilized. Filenames for 2-Series control system update files have a CUZ extension and can be obtained from the What's New page (Control Systems Update Files section) or Downloads page (OPSYS Library) of the Crestron website. -
Page 11: Wire Gauge
Repeat the procedure for the other three conductors. Rack Mounting To install the CNAMPX-2X60 in a rack configuration, contact Middle Atlantic or an equivalent supplier for appropriate mounting hardware. WARNING: To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. -
Page 12: Hookup
NOTE: Refer to “Network Wiring” on page 6 when making connections to the ports labeled NET. Hookup Connections for the CNAMPX-2X60 in Stereo or Mono (Summed) Modes 8 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 for proper circulation. -
Page 13: Identity Code
Crestron CNAMPX-2X60 Hookup Connections for the CNAMPX-2X60 in Bridged Mode Identity Code Every equipment and user interface within the Cresnet system requires a unique NET ID. These codes are recognized by a two-digit hexadecimal number from 03 to FE. The NET ID of the unit must match an ID code specified in the SIMPL Windows program. -
Page 14: Typical Room Configuration
Windows. If not, refer to the extensive help information provided with the software. Configure CNAMPX-2X60 Program To create a program with a CNAMPX-2X60 in the Configuration Manager of SIMPL Windows, refer to the table below for initial configuration information. 10 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 10. -
Page 15: Additional Setup
Detail View of the CNAMPX-2X60 Symbol in SIMPL Windows’ Programming Manager NOTE: Any software that uses the CNAMPX-16X60 symbol, including SIMPL Windows and Crestron AppBuilder, may be used to program the CNAMPX-2X60. If used, only 2 audio channels will be utilized and the following inputs and outputs of the CNAMPX-16X60 symbol are ignored;... -
Page 16: Example Program
OverRide_F Temp(x10) Example Program An example program for the CNAMPX-2X60 is available from the Downloads page (EXAMPLES Library) of Crestron’s website (www.crestron.com). Search for CNAMPXE1.ZIP that contains the example program, associated files and a README.TXT file that describes the program. New users are required to register in order to obtain access to the FTP site. -
Page 17: Problem Solving
Room output (speaker) wire(s) loose or not connected. 2 Channel Professional Audio Amplifier: CNAMPX-2X60 • 13 CORRECTIVE ACTION Verify that POWER switch is positioned to ON, AC power cord is plugged into CNAMPX-2X60 power port and cord is plugged into a good power source. -
Page 18: Ac Power Fuse Replacement
Crestron customer service. Further Inquiries If after reviewing this Operations Guide for the CNAMPX-2X60, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team by calling: For local support from exclusive Crestron factory-trained personnel in New Zealand, call Amber Technologies at +649-410-8382. -
Page 19: Software License Agreement
Operations Guide – DOC. 8178 2 Channel Professional Audio Amplifier LICENSE TERMS OTHER LIMITATIONS 2 Channel Professional Audio Amplifier: CNAMPX-2X60 • 15... -
Page 20: Proprietary Rights
OTHER PARTY MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS WARRANTIES. 16 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 PROPRIETARY RIGHTS GOVERNING LAW The United Nations Convention on Contracts for the International Sale of Goods, shall not CRESTRON LIMITED WARRANTY... -
Page 21: Return And Warranty Policies
All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation Operations Guide – DOC. 8178 2 Channel Professional Audio Amplifier 2 Channel Professional Audio Amplifier: CNAMPX-2X60 • 17... - Page 22 2 Channel Professional Audio Amplifier Crestron CNAMPX-2X60 This page intentionally left blank. 18 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 Operations Guide – DOC. 8178...
- Page 23 Crestron CNAMPX-2X60 2 Channel Professional Audio Amplifier This page intentionally left blank. 2 Channel Professional Audio Amplifier: CNAMPX-2X60 • 19 Operations Guide – DOC. 8178...
- Page 24 Crestron Electronics, Inc. Operations Guide – DOC. 8178 15 Volvo Drive Rockleigh, NJ 07647 01.02 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
