PROCISE™ Surround Sound Amplifier
8 • PROCISE™ Surround Sound Amplifier: PROAMP(I)-7X400

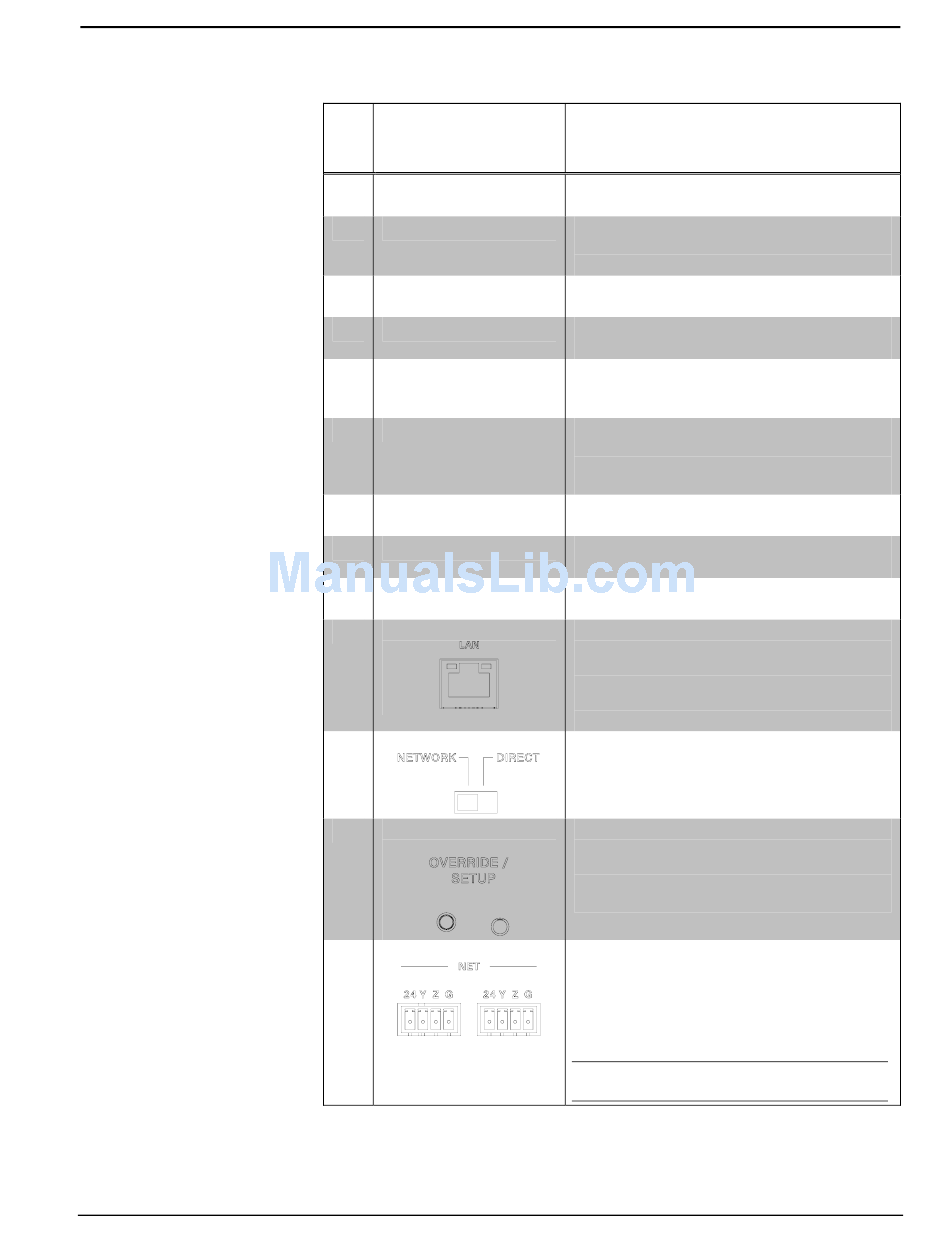

Connectors, Controls & Indicators
#
CONNECTORS*,
CONTROLS &
INDICATORS
1
NET LED
2
PWR 1 LED
3
RESET BUTTON
4
TEMP LED
5
PWR 2 LED
6
FAULT LEDS
7
CLIP LEDS
8
SIGNAL LEDS
9
POWER
10
LAN
11
NETWORK/DIRECT
12
OVERRIDE/SETUP
(LED and button)
13
NET
(Continued on following page)
Crestron PROAMP(I)-7X400
DESCRIPTION
(1) Amber LED, indicates communication with
Cresnet system
(1) Green LED, indicates power switch is
enabled and power is present at the upper
power input
(1) Miniature pushbutton, clears all channel
fault indications if condition is resolved
(1) Red LED, indicates an over-temperature
condition
(1) green LED, indicates power switch is
enabled and power is present at the lower
power input
(7) Red LEDs; indicate over-temperature,
over-current, over or under power supply
voltage, or DC offset condition on the
corresponding channel
(7) Amber LEDs, indicate a clipping condition
on the corresponding channel
(7) Green LEDs, indicate signal presence on
the corresponding channel
(1) Toggle switch, removes power from the
amp and resets microprocessor
(1) 8-wire RJ-45 with 2 LED indicators;
10/100BaseT Ethernet port;
Green LED indicates link status; Amber LED
indicates Ethernet activity;
Straight-thru LAN cable included for direct
connection to PSPHD
(1) Slide switch, selects whether connection
to PSPHD is via LAN or direct connection
(1) miniature pushbutton and (1) red LED,
used for touch-settable ID (TSID) in
conjunction with Crestron Toolbox™ software,
for activating Override mode for testing, and
for pairing with PSPHD
(2) 4-pin 3.5mm detachable terminal blocks;
Cresnet slave ports, paralleled;
24:
Power (24 Volts DC)
Y:
Data
Z:
Data
G:
Ground
NOTE: The NET port does not supply or
consume power.
Operations Guide – DOC. 6976A
