Crestron HD-DA-4KZ-E Series Do Manual

DO
HD-DAx-4KZ-E Series
4K60 4:4:4 HDR Distribution Amplifiers
DO Install the Device

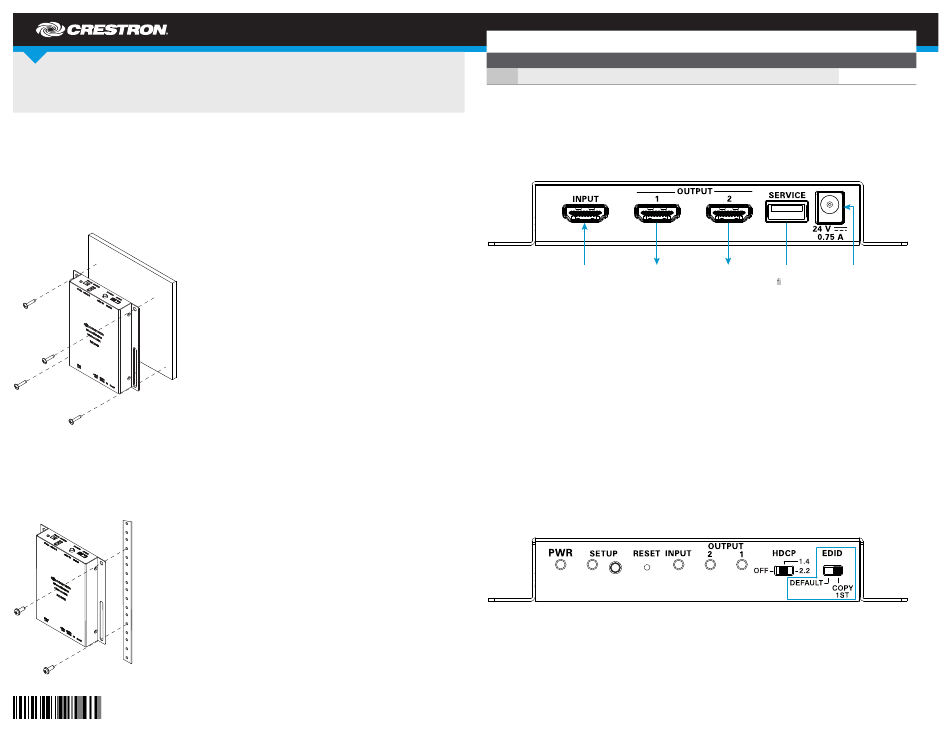

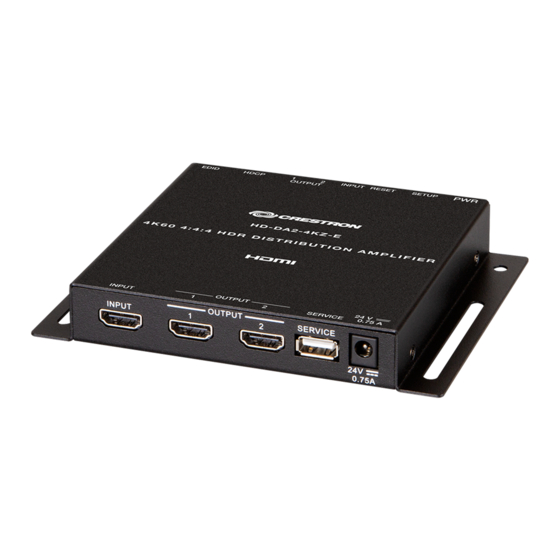

The Crestron ® HD-DAx-4KZ-E Series consists of the HD-DA2-4KZ-E, HD-DA4-4KZ-E, and
HD-DA8-4KZ-E. The devices can be mounted onto a flat surface or onto a rack rail.
Mount onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall.
Wall Mounting (HD-DA2-4KZ-E Shown)
Mount onto a Rack Rail
Mount the device onto a front or rear rail of a rack. Position either the left or right mounting flange of
the device so that the holes align with the holes in the rack. Then, secure the device to the rack using
two rack mounting screws (not included).
Rail Mounting (HD-DA2-4KZ-E Shown)
GUIDE
DO Check the Box
QTY
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
DO Connect the Device
Connect the device as required for the application.
Front Panel Connections (HD-DA2-4KZ-E Shown)
INPUT: OUTPUT 1:
From HDMI® To HDMI
audio/video display
source
DO Select the EDID Mode
Select the EDID (Extended Display Identification Data) mode by moving the EDID switch to either
of the following positions:
• DEFAULT: (Default setting) The device sends a predefined Crestron EDID to the
input device. The Crestron EDID supports 2-channel LPCM audio and
4K60 444 non-HDR video.
COPY 1ST: The device copies the EDID of the display connected to OUTPUT 1 and
•
sends the EDID to the input device.
NOTE: If the display that is connected to OUTPUT 1 is disconnected, the current EDID
is retained. Connecting a different display to OUTPUT 1 does not automatically update
the EDID at the input device. To update the EDID, move the EDID switch to the DEFAULT
position and then back to the COPY 1ST position.
EDID Selection Switch (HD-DA2-4KZ-E Shown)
ITEM
OUTPUT 2: SERVICE: 24 V 0.75 A:
To HDMI For rmware From included
display loading power pack
PART NUM.
2037209
