Summary of Contents for Crestron CNAMPX-16X60
- Page 1 Crestron CNAMPX-16X60 16 Channel Professional Audio Amplifier Operations Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2000 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron CNAMPX-16X60 Contents 16 Channel Professional Audio Amplifier: CNAMPX-16X60 Description... 1 Functional Description ... 1 Physical Description... 1 Leading Specifications... 5 Setup ... 6 Network Wiring... 6 Rack Mount Ear Installation... 7 Rack Mounting ... 8 Hookup ... 9 Identity Code ... 9 Programming with SIMPL Windows ... -
Page 5: Channel Professional Audio Amplifier: Cnampx-16X60

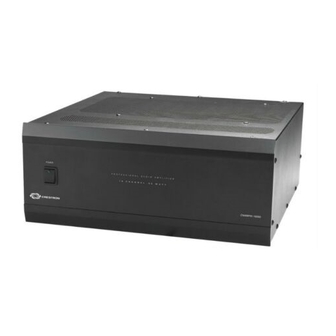

Physical Description The CNAMPX-16X60, shown on the next page, is housed in a black enclosure with silk-screened labels on the front and rear panels. The enclosure consists of 13-gauge powder-coated steel with stainless steel screws. The front panel contains the main power switch and light-emitting diode (LED). - Page 6 U.S .A ELECTRONICS INC., ROCKLEIGH, N.J. 07670 USA 17.22 in (43.74 cm) POWER CRESTRON 2 • 16 Channel Professional Audio Amplifier: CNAMPX-16X60 ROOM INPUTS ATTENTION: CAUTION: CAUTION POUR LA PROTECTION CONTRE LES RISQUES D'INCENDIES FO R CONTINUED PROTECTION AGAINST FIRE N'UTILISEZ SEULEMENT LE MÊMES TYPE DE FUSIBLE.
-
Page 7: General Safety Precautions
Crestron CNAMPX-16X60 General Safety Precautions CNAMPX-16X60 Rear Ports and Indicators A number of ports and indicators are provided on the rear of the CNAMPX-16X60. Refer to the illustration below and the descriptions on the next page. CNAMPX-16X60 Rear Panel Operations Guide – DOC. 8155 16 Channel Professional Audio Amplifier Read all information and instructions provided in this operations guide. - Page 8 CNAMPX-16X60 Front Panel Power Switch As shown on the next page, the front panel of the CNAMPX-16X60 contains a power switch with an LED indicator. This two-position (ON/OFF) switch enables operating power to the CNAMPX-16X60 circuitry and must be positioned to ON when the unit is controlled by the control system.
-
Page 9: Leading Specifications
® Version 1.40.07 or later smwlib87.exe and smwlib87.txt. ® Pro-e Version 2.1.8 or later. Version 51013V.UPZ or later. Version 51011X.UPZ or later. Version 51011W.UPZ or later. 16 Channel Professional Audio Amplifier: CNAMPX-16X60 • 5 CNAMPX-16X60 DETAILS with the addition of... -
Page 10: Setup
If the unit is a home-run from a Crestron system power supply network port, the power factor of that unit is the power factor of the entire run. The length of the run in feet and the power factor of the run should be used in the following resistance equation to calculate the value on the right side of the equation. -
Page 11: Rack Mount Ear Installation
Repeat the procedure for the other three conductors. Rack Mount Ear Installation Two rack mount ears are provided with the CNAMPX-16X60 and must be installed prior to mounting. To attach the ears to the unit, position as shown below and install the provided screws finger-tight. -
Page 12: Rack Mounting
The following guidelines are provided to ensure your safety: WARNING: The CNAMPX-16X60 weighs in excess of 90 pounds. Use more than one person to install unit into rack. -
Page 13: Hookup
FE. The NET ID of the unit must match an ID code specified in the SIMPL Windows program. The NET ID of the CNAMPX-16X60 is factory set to 3D. The NET IDs of multiple CNAMPX-16X60 must all be unique and changed from a PC via SIMPL Windows or Crestron VisionTools The method for changing the unit’s NET ID is identical regardless of the software... -
Page 14: Programming With Simpl Windows
16X60 example touchpanel pages. The latest version of VT Pro-e can be obtained from the Downloads | Software Updates section of the Crestron website (www.crestron.com ). New users are required to register in order to obtain access to the FTP site. -
Page 15: Cnampx-16X60 Symbol
Crestron CNAMPX-16X60 CNAMPX-16X60 Symbol The diagram below shows the CNAMPX-16X60 symbol in SIMPL Windows. The two tables following the diagram list the inputs and outputs, respectively, and their functional descriptions. NOTE: All inputs listed in the following table are DIGITAL signals unless noted otherwise. - Page 16 Rm8_Wire_Fault Temp(x10) LeftSigLevel & RghtSigLevel 12 • 16 Channel Professional Audio Amplifier: CNAMPX-16X60 INPUT(S) This signal activates the main operating power to the CNAMPX- 16X60 circuitry. High/1=power on, low/0=power off. These signals enable (or activate) the audio outputs for the corresponding amplifier module.
-
Page 17: Example Basic Touchpanel Pages
New users are required to register in order to obtain access to the FTP site. The example touchpanel page shown below is provided to demonstrate the basic capabilities of the CNAMPX-16X60. After selecting a room to control, the desired audio source is selected. Each source has a “Controls” subpage that is unique for the particular type of device. -
Page 18: How The Example Program Works
Example Touchpanel Diagnostic Page How the Example Program Works The example SIMPL program for the CNAMPX-16X60 is shown on the next page as a block diagram. The diagram shows only the components and logic associated with example touchpanel. The actual program involves extensive CNX-PAD8 logic and certain inputs and outputs have been rearranged or omitted for clarity. - Page 19 Crestron CNAMPX-16X60 16 Channel Professional Audio Amplifier Example CNAMPX-16X60 SIMPL Program 16 Channel Professional Audio Amplifier: CNAMPX-16X60 • 15 Operations Guide – DOC. 8155...
-
Page 20: Problem Solving
Service Guide (Doc. 5885) or the CNX-PAD8 Operations Guide (Doc. 8137). These documents can be obtained from the Downloads | Product Manuals section of the Crestron website (www.crestron.com ). The name of the files is cnampx-12x60_16x60-service.pdf and cnx-pad8.pdf, respectively. Crestron CNAMPX-16X60... -
Page 21: Further Inquiries
Crestron CNAMPX-16X60 Further Inquiries If after reviewing this Operations Guide for the CNAMPX-16X60, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team by calling: Future Updates As Crestron improves functions, adds new features, and extends the capabilities of the CNAMPX-16X60, additional information and programming examples may be made available as manual updates. -
Page 22: Return And Warranty Policies
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 23 Crestron CNAMPX-16X60 16 Channel Professional Audio Amplifier This page intentionally left blank. 16 Channel Professional Audio Amplifier: CNAMPX-16X60 • 19 Operations Guide – DOC. 8155...
- Page 24 Crestron Electronics, Inc. Operations Guide – DOC. 8155 15 Volvo Drive Rockleigh, NJ 07647 06.00 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
