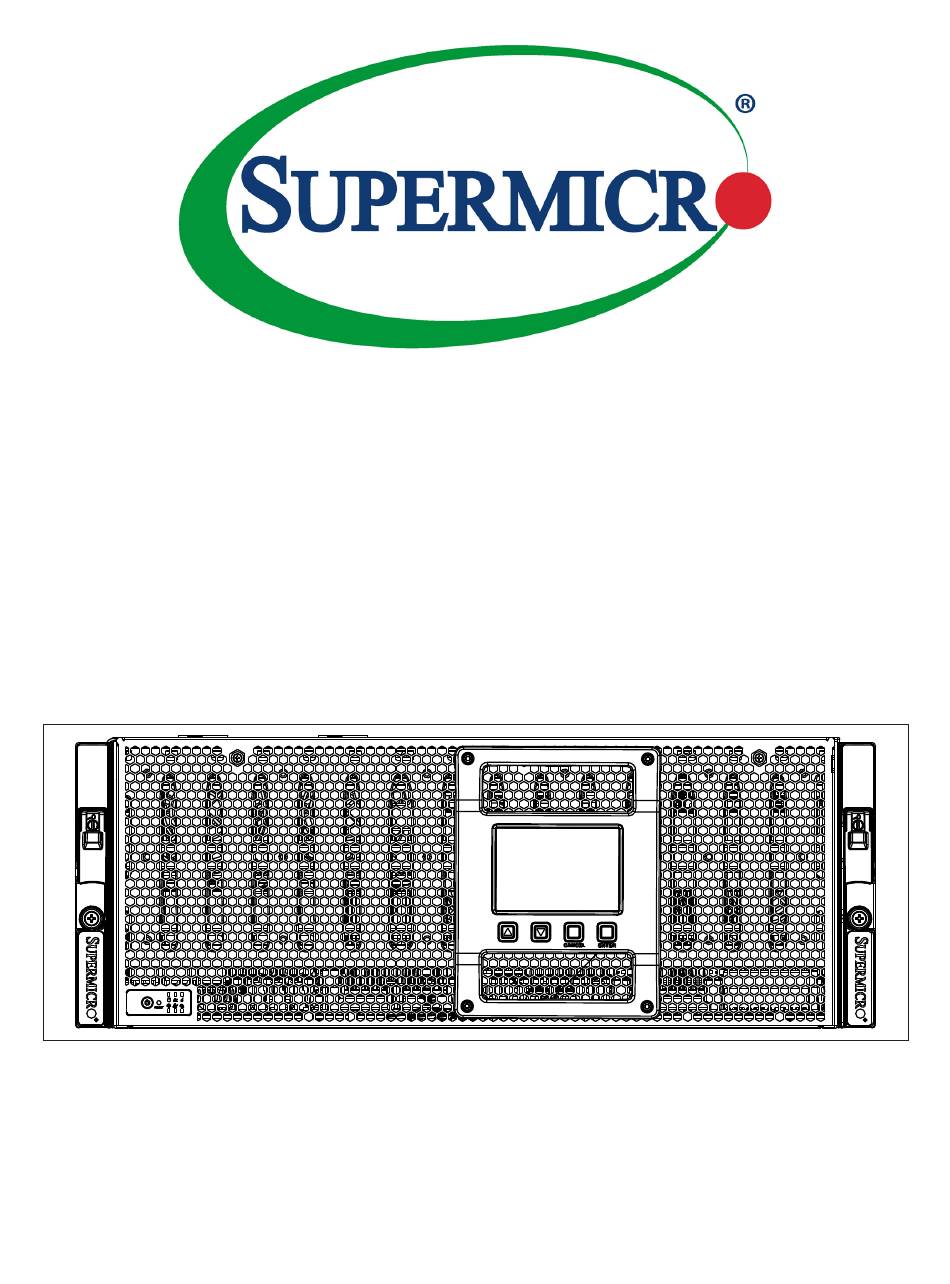

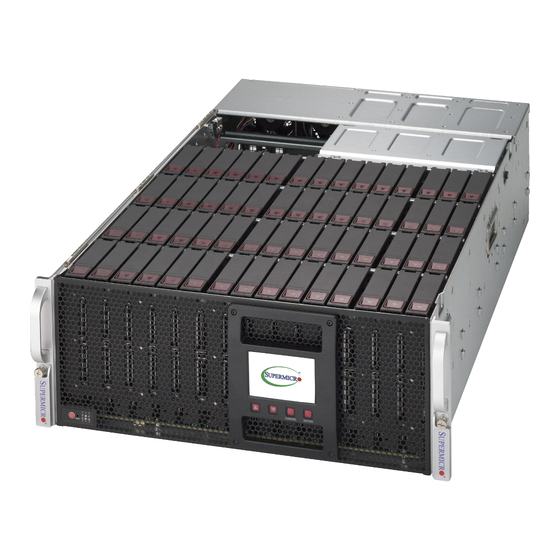

UpER
toRAgE
ERvER
SSg-6049p-E1CR60H
SSg-6049p-E1CR60L
SSg-6049p-E1CR60L+
USER'S MANUAL
Revision 1.0c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperStorage Server SSG-6049P-E1CR60H and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SuperStorage Server SSG-6049P-E1CR60H

Summary of Contents for Supermicro SuperStorage Server SSG-6049P-E1CR60H

  • Page 1 ® UpER toRAgE ERvER SSg-6049p-E1CR60H SSg-6049p-E1CR60L SSg-6049p-E1CR60L+ USER’S MANUAL Revision 1.0c...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Warnings Special attention should be given to the following symbols used in this manual.

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Chapter 3 Maintenance and Component Installation 3.1 Removing Power ........................32 3.2 Accessing the System ......................33 Removing the Cover ......................33 Closing the Cover ......................33 3.3 Motherboard Components ....................34 Processor and Heatsink Installation ..................34 Memory ..........................34 Memory Population Guidelines ..................35 Memory Population Sequence ..................35...
  • Page 6 Preface IPMI Event Log ......................57 UID Message ........................58 LCD Test ........................58 Settings Submenu ......................58 Error Message .......................58 Chapter 4 Motherboard Connections 4.1 Power Connections ......................59 4.2 Headers and Connectors ....................60 4.3 Ports ...........................62 Rear I/O Ports ........................62 4.4 Headers ..........................64 4.5 Front Control Panel ......................69 4.6 Jumpers ..........................72 Explanation of Jumpers ....................72...
  • Page 7 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the SuperStorage Server SSG-6049P-E1CR60H/L/L+. The SSG-6049P-E1CR60H/L/L+ is a high-end solution comprised of two main subsystems: the SC946STS-R2K05P 4U chassis and the X11DSC+ dual processor motherboard.

  • Page 9: System Features

    Chapter 1: Introduction electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix B. 1.3 System Features The following table provides you with an overview of the main features of the SSG-6049P-E1CR60H/L/L+.

  • Page 10: Server Chassis Features

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features...

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The SC946STS-R2K05P is a 4U chassis. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Locking Tabs Lock the system into a rack. LCD Screen LCD screen with navigation buttons Control Panel...

  • Page 12: Rear Features

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description Power Supply Module 2000W power supply (redundant, with two power modules) 2.5"...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11DSC+ with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. IPMI_LAN JUIDB1 COM1...

  • Page 14: Quick Reference Table

    Dedicated IPMI LAN port I-SATA0-3 SATA 3.0 connection header supported by the Intel® PCH I-SATA2/I-SATA3 I-SATA ports with built-in power pins [support Supermicro SuperDOM (Disk On Module) devices] I-SGPIO1 Serial Link General Purpose I/O header JBAT1 Onboard CMOS battery socket...
  • Page 15 Chapter 1: Introduction Description Status HDD_LED1 HDD LED Green: On: HDD Normal LEDBMC BMC Heartbeat LED Blinking Green: BMC normal LEDPWR Onboard Power LED On: Onboard power on UID-LED UID (Unit Identifier) LED Solid Blue: Unit identified Memory LED Description Status P1_LED_A1 CPU1_Memory_Fault_LED for DIMM A1...
  • Page 16 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual JPCIE3 JPCIE1 16GB/s 32GB/s Slot 3 Slot 1 VCCP1&2 12V PCIE 3.0 x16 PCIE 3.0 x8 VR13 5+1 PHASE 205W JPCIE2 32GB/s Slot 2 PCIE 3.0 x16 PE2 PE1 DMI CPU 2 10.4G Polarity Inversion...

  • Page 17: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory, etc., refer to Chapter 4 for details on installing those specific components. Caution: Electrostatic Discharge (ESD) can damage electronic components.

  • Page 18: Rack Precautions

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them. • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together.

  • Page 19: Mechanical Loading

    Chapter 2: Server Installation Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading. Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring.

  • Page 20: Installing The System Into A Rack

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 2.3 Installing the System into a Rack This section provides information on installing the SC946 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 21: Locking Tabs

    Chapter 2: Server Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 22: Installing The Inner Rails On The Chassis

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing The Inner Rails on the Chassis Installing the Inner Rails 1. Confirm that the left and right inner rails have been correctly identified. 2. Place the inner rail firmly against the side of the storage chassis, aligning the hooks on the side of the storage chassis with the holes in the inner rail.

  • Page 23: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 24: Installing To The Rack

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing to the Rack Installing the Chassis into a Rack 1. Confirm that the inner rails are properly installed on the chassis and the outer rails are correctly installed on the rack. 2. Pull the middle rail out from the front of the outer rail and make sure that the ball- bearing shuttle is at the front locking position of the middle rail.

  • Page 25: Optional Quick Installation Method

    Chapter 2: Server Installation Optional Quick Installation Method The following quick installation method may be used to install the chassis to a rack. Installing the Storage Chassis into a Rack 1. Install the whole rail assembly onto the rack as described previously. 2.

  • Page 26: Accessing Top-Loading Hard Drives

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Accessing Top-Loading Hard Drives After completing the rack installation steps on the previous pages, the top-loading functionality of your chassis can be utilized while mounted in a rack system without removing the chassis from the rack.

  • Page 27: Installing The Cable Management Arm

    Chapter 2: Server Installation 2.4 Installing the Cable Management Arm The SC946 chassis supports a cable management arm (CMA) that keeps the rear cables organized and clear of the rail mechanisms when the system is extended out the front of the rack for maintenance.
  • Page 28 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing the Cable Management Arm 1. Slide CMA connector #1 forward onto the two posts on the rear of the right inner rail (right side when viewed from the front). It snaps into place. 2. Slide CMA connector #2 forward onto the two posts on the rear of the right middle rail. It snaps into place.
  • Page 29 Chapter 2: Server Installation 1. Slide CMA connector #3 forward onto the two posts on the rear of the left middle rail. It snaps into place. 2. For CMA connector #4, align the metal tabs with the slots on the rear of the left outer rail and push it forward.
  • Page 30 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Figure 2-10. Routing the Cables 3. Open the four red plastic caps and route the cables into the wire carrier. 4. If necessary, adjust the U-brackets to clear chassis components. Figure 2-11. Adjusting the U-Brackets...
  • Page 31 Chapter 2: Server Installation 1. Use the six Velcro straps to secure the cables to the CMA. Use a strap on either side of each joint and one on each U-bracket, inserting it through the slot on the bracket. 2. Slide the chassis forward and backward in the rack to confirm that the cable management arm is operating smoothly.

  • Page 32: Chapter 3 Maintenance And Component Installation

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 33: Accessing The System

    Chapter 3: Maintenance and Component Installation 3.2 Accessing the System Removing the Cover 1. Power down the system and disconnect the AC power cords from the power supplies. 2. Release the two thumb screws on the right side of the storage chassis. 3.

  • Page 34: Motherboard Components

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 3.3 Motherboard Components Processor and Heatsink Installation This server is sold with the CPU and heatsink installed. Only approved Supermicro technicians should perform maintenance. Memory The system supports up to 6TB of 3DS ECC DDR4 2933/2666 MHz RDIMM/LRDIMM in 24 DIMM slots or NVDIMM modules in 24 slots.

  • Page 35: Memory Population Guidelines

    Chapter 3: Maintenance and Component Installation Symmetric Population within 1 CPU Socket Channel Modes DIMMF1 DIMMF2 DIMME1 DIMME2 DIMMD1 DIMMD2 DIMMA2 DIMMA1 DIMMB2 DIMMB1 DIMMC2 DIMMC1 Config. DRAM1 DCPMM DRAM1 DCPMM DRAM1 DCPMM DCPMM DRAM1 DCPMM DRAM1 DCPMM DRAM1 2-2-2 AD + DRAM3 DCPMM DRAM3...
  • Page 36 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Memory Population Table When 1 CPU is used: Memory Population Sequence 1 CPU & 1 DIMM CPU1: P1-DIMMA1 1 CPU & 2 DIMMs CPU1: P1-DIMMA1/P1-DIMMD1 1 CPU & 3 DIMMs CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1 1 CPU & 4 DIMMs CPU1: P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1 1 CPU &...
  • Page 37 Chapter 3: Maintenance and Component Installation Memory Population Table (cont.) CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/ P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF2/P1-DIMMF1 2 CPUs & 20 DIMMs CPU2: P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/P2-DIMMD2/P2-DIMMD1/ P2-DIMME2/P2-DIMME1 CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/ 2 CPUs & 22 DIMMs P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF1 (Unbalanced: not CPU2: P2-DIMMC1/P2-DIMMC2/P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/ recommended) P2-DIMMD2/P2-DIMMD1/P2-DIMME2/P2-DIMME1/P2-DIMMF1 CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/ 2 CPUs & 24 DIMMs P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF2/P1-DIMMF1 CPU2: P2-DIMMC1/P2-DIMMC2/P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/ P2-DIMMD2/P2-DIMMD1/P2-DIMME2/P2-DIMME1/P2-DIMMF2/P2-DIMMF1...

  • Page 38: Installing Memory

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing Memory ESD Precautions Electrostatic Discharge (ESD) can damage electronic com ponents including memory modules. To avoid damaging DIMM modules, it is important to handle them carefully. The following measures are generally sufficient. • Use a grounded wrist strap designed to prevent static discharge.

  • Page 39: Mezzanine Card Installation (Optional)

    Chapter 3: Maintenance and Component Installation Mezzanine Card Installation (Optional) For SAS 3.0 support, be sure to follow the instructions below to install the mezzanine card on the CPU JMEZZ1/2-PCI-E 3.0 located on the motherboard. Image of the Mezzanine Card 1.
  • Page 40 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 3. With the mezzanine card securely placed in the slot, insert Pan Head #6 screws into the three standoff holes and tighten them with a Phillips screwdriver. Screw #2 Screw #1 Screw #3...

  • Page 41: Motherboard Battery

    Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in section 3.1. 1.

  • Page 42: Chassis Components

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 3.4 Chassis Components Storage Drives HDD Support Partitions Prior to installing top-loading 3.5" hard drives into the SC946S chassis, it is necessary to install the two hard drive support partitions included with the system. Installing the HDD Support Partitions 1.

  • Page 43: Installing Hot-Swap 3.5" Hard Drives

    4. Use the handle to pull the drive carrier up and out of the chassis. Drive Carrier Handle Release Button Figure 3-5. Removing a 3.5" Drive Carrier Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www. supermicro.com/products/nfo/files/storage/SBB-HDDCompList.pdf...
  • Page 44 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing Hard Drives Into Carriers 1. With the drive carrier removed from the storage compartment, lift the breakout lever and pull out the side of the carrier as shown below. 2. Remove the dummy drive from the carrier.

  • Page 45: Installing Rear Hard Drives

    Chapter 3: Maintenance and Component Installation Installing Rear Hard Drives The SSG-6049P-E1CR60H/L/L+ chassis supports two optional 2.5" hot-swappable hard drives in the rear of the chassis. These drive are mounted in carriers to simplify their removal from the chassis. It is not necessary to power down the system before removing these hard drives.
  • Page 46 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Figure 3-8. Installing a Rear Hard Drive Carrier Note: Backplane naming rule follows. P0 : 01 : 00 --> indicates 1st expander board, 1st drive, slot1 (out of 60 drives) P0 : 02 : 00 --> indicates 2nd expander board, 1st drive, slot31 (out of 60 drives) The controller will recognize both backplanes in the system and assigns them enclosure IDs.
  • Page 47 Chapter 3: Maintenance and Component Installation Figure 3-9. Installing a Rear Hard Drive Carrier Installing NVMe Drive Carriers into the NVMe Drive Cage NVMe drives are hot-swappable and once the NVMe drive cage has been installed as described, the NVMe drives can be added to or removed from the NVMe cage without powering down the system.

  • Page 48: Installing The Expansion Cards

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Installing the Expansion Cards The system provides three PCI slots for Add-On-Modules (AOMs). Installing an Expansion Cards 1. Power down the system and remove both covers as described in earlier in this section. 2. In the rear of the chassis, remove the screw securing the PCI slot shield in the PCI slot that you wish to use.

  • Page 49: Installing A Siom Card

    Chapter 3: Maintenance and Component Installation Installing a SIOM Card The SIOM card provides options for network connection. It is inserted into a SIOM slot on the motherboard. This installation is usually performed by a system integrator or manufacturer. Installing a SIOM Card 1.

  • Page 50: System Fans

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual System Fans Five heavy-duty, hot-swappable fans provide cooling for the system. The SC946 features three fans that can be removed individually and two that are paired in a dual fan module. The fans an be removed without powering down the system.
  • Page 51 Chapter 3: Maintenance and Component Installation Dual Rear Fan Module The SSG-6049P-E1CR60H/L/L+ supports two rear-mounted cooling fans in a hot-swappable dual fan unit. Refer to the procedure below for replacing these fans. 1. While the power is running, examine the fans to determine which fan has failed. 2.

  • Page 52: Power Supply

    100V to 240V input voltage. Redundant power supplies are hot-swappable and can be changed without powering down the system. New units can be ordered directly from Supermicro (see contact information in the Preface). Changing the Power Supply 1.
  • Page 53 Chapter 3: Maintenance and Component Installation Release Tab Figure 3-15. Removing a Power Supply...

  • Page 54: System Status Lcd Screen

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 3.4 System Status LCD Screen The SSG-6049P-E1CR60H/L/L+ offers an optional LCD screen on the front of the chassis that shows the status of many system components. The functions are described in this section. Introduction This feature gives the user the ability to monitor drives, power supplies, fans, and connections.

  • Page 55: Main Screen

    Chapter 3: Maintenance and Component Installation Main Screen After a welcome page, the Main screen appears. Throughout the GUI, component status is displayed in color where green indicates normal operation, red indicates a problem, and gray indicates the component is not installed. The UID Alert is blue when active;...

  • Page 56: Processor Status

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Processor Status Main Page > System Status > Processor This page displays CPU information including model (SKU), temperature and status. The status may be operational (good, green), failed (bad, red), or not installed (gray). Memory Status Main Page >...

  • Page 57: Ipmi Submenu

    Chapter 3: Maintenance and Component Installation IPMI Submenu Main Page > IPMI System Info Main Page > IPMI > System Info The IPMI System Info pages show: • LCD firmware version • IPMI firmware version • BMC IP Address • MAC Address •...

  • Page 58: Uid Message

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual • /*PSU FAIL*/ • /*MEM ECC Error*/ • /*MEM MRC Error*/ • /*Fan Error*/ • HDD activity LCD Test Main Page > IPMI > LCD Test Settings Submenu Main Page > Settings > Brightness This item allows the user to adjust the LCD brightness.

  • Page 59: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 60: Headers And Connectors

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 4.2 Headers and Connectors Onboard Fan Header This motherboard has ten fan headers (FAN1~FAN10) used for CPU/system cooling. These are all 4-pin fan headers, which are backward compatible with a traditional 3-pin fan. The onboard fan speed is controlled by Thermal Management (via Hardware Monitoring) in the BIOS.
  • Page 61 Intel PCH C621 chipset, and the S-SATA ports are supported by Intel SCU. S-SATA4/S- SATA5 can be used with Supermicro SuperDOMs which are yellow SATA DOM connectors with power pins built in, and do not require external power cables.

  • Page 62: Ports

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 4.3 Ports Rear I/O Ports See Figure 4-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. IPMI_LAN JUIDB1 COM1 (UID) JSDCARD1 UID-LED CTRL CPU2_MEMORY_LED CPU1_MEMORY_LED USB 0/1 (3.0)
  • Page 63 Chapter 4: Motherboard Connections VGA Port The onboard VGA port is located next to IPMI LAN port on the I/O back panel. Use this connection for VGA display. Serial Port There is one COM port (COM1) on the I/O back panel. The COM port provides serial communication support.

  • Page 64: Headers

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Unit Identifier Switch/UID LED Indicator A Unit Identifier (UID) switch and a rear UID LED (UID-LED) are located on the I/O back panel. A front UID switch is located on pins 7 & 8 of the front panel control (JF1). When you press the front or the rear UID switch, both front and rear UID LEDs will be turned on.
  • Page 65 Chapter 4: Motherboard Connections TPM Header The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from a third-party vendor. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.
  • Page 66 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual SGPIO Header The I-SGPIO1 (Serial General Purpose Input/Output) header is used to communicate with the enclosure management chip on the backplane. SGPIO Header Pin Definitions Pin# Definition Pin# Definition Ground DATA Out Load Ground Clock...
  • Page 67 NVMe SMBus (I2C) headers (JNVI2C1/2), used for PCI-E SMBus clock and data connections, provide hot-plug support via a dedicated SMBus interface. This feature is only available for a Supermicro complete system with an SMCI-proprietary NVMe add-on card and cable installed. See the table below for pin definitions.
  • Page 68 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Disk-On-Module Power Connector The Disk-On-Module (DOM) power connectors at JSD1 and JSD2 provide 5V power to a solid-state DOM storage devices connected to one of the SATA ports. See the table below for pin definitions.

  • Page 69: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 70 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4).
  • Page 71 Chapter 4: Motherboard Connections NIC1/NIC2 (LAN1/LAN2) The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to display network activity.

  • Page 72: Jumpers

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 4.6 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 73 Chapter 4: Motherboard Connections Watch Dog JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.

  • Page 74: Led Indicators

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 4.7 LED Indicators IPMI-Dedicated LAN LEDs A dedicated IPMI LAN is located on the I/O Backplane of the motherboard. The amber LED on the right indicates activity, while the green LED on the left indicates the speed of the connection.
  • Page 75 Chapter 4: Motherboard Connections Unit ID LED A rear UID LED indicator (UID-LED) is located near the UID switch on the I/O back panel. This UID indicator provides easy identification of a system.unit that may need service. UID LED LED Indicator LED Color Definition Blue: On...

  • Page 76: Chapter 5 Software

    USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 77 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 78: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to to a USB flash drive or a DVD.

  • Page 79: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 80: Ipmi

    The X11DSC+ supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

  • Page 81: Chapter 6 Uefi Bios

    Chapter 6: UEFI BIOS Chapter 6 UEFI BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the X11DSC+ motherboard(s). The is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 82: Main Menu

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 6.2 Main Menu When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

  • Page 83: Advanced Settings Menu

    Chapter 6: UEFI BIOS CPLD Version This item displays the version of the CPLD (Complex-Programmable Logical Device) used in the system. Memory Information Total Memory This item displays the total size of memory available in the system. Memory Speed This item displays the default speed of the memory modules installed in the system. 6.3 Advanced Settings Menu Use the arrow keys to select the Advanced submenu and press <Enter>...
  • Page 84 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Boot Feature  Quiet Boot Use this feature to select the screen between displaying POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.
  • Page 85 Chapter 6: UEFI BIOS Power Configuration Watch Dog Function If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it is expired for more than 5 minutes. The options are Disabled and Enabled.
  • Page 86 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual • Processor Min Ration • Microcode Revision • L1 Cache RAM • L2 Cache RAM • L3 Cache RAM • Processor 0 Version • Processor 1 Version Hyper-Threading [All] (Available when supported by the CPU) Select Enabled to support Intel®...
  • Page 87 Chapter 6: UEFI BIOS Hardware Prefetcher (Available when supported by the CPU) If this item is set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Enable and Disable.
  • Page 88 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual ENERGY_PERF_BIAS_CFG Mode (Available when Power Performance Tuning is set to BIOS Controls EPB) The Energy Performance BIAS (EPB) feature allows the user to configure CPU power and performance settings. Select Maximum Performance to set the highest performance. Select Performance to optimize performance over energy efficiency.
  • Page 89 Chapter 6: UEFI BIOS CPU C State Control (Available when Power Technology is set to Custom) Autonomous Core C-State Use this feature to enable the autonomous core C-State control. The options are Dis- able and Enable. CPU C6 report Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system.
  • Page 90 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Chipset Configuration Warning: Setting the wrong values in the following features may cause the system to malfunc- tion. North Bridge This feature allows the user to configure the settings for the Intel® North Bridge. UPI Configuration ...
  • Page 91 Chapter 6: UEFI BIOS Link L1 Enable Select Enable for the QPI to enter the L1 state for power saving. The options are Dis- able, Enable, and Auto. IO Directory Cache (IODC) Use this feature to enable the IO Directory Cache (IODC) support. The options are Dis- able, Auto, Enable for Remote InvItoM Hybrid Push, InvItoM AllocFlow, Enable for Remote InvItoM Hybrid AllocNonAlloc, and Enable for Remote InvItoM and Remote WViLF.
  • Page 92 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual LLC Dead Line Alloc Select Enable to optimally fill dead lines in LLC. Select Disable to never fill dead lines in LLC. The options are Disable, Enable, and Auto. Isoc Mode Select Enable to enable Isochronous support to meet QoS (Quality of Service) require- ments.
  • Page 93 Chapter 6: UEFI BIOS use different values for the tRWSR DDR timing settings for different channels as trained. The options are Disable and Enable. 2X Refresh Options Use this item to select the 2X refresh mode. The options are Auto and Enable. Page Policy This feature allows the user to determine the desired page mode for IMC.
  • Page 94 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual UEFI ARM Mirror Select Enable to support the UEFI-based address range mirroring with setup option. The options are Disable and Enable. Memory Rank Sparing Select Enable to enable memory-sparing support for memory ranks to improve memory performance.
  • Page 95 Chapter 6: UEFI BIOS IIO Configuration  IIO Configuration EV DFX Features When this feature is set to Enable, the EV_DFX Lock Bits that are located on a proces- sor will always remain clear during electric tuning. The options are Disable and Enable. ...
  • Page 96 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual PCI-E Port Max Payload Size Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are 128B, 256B, and Auto.  P1_NVMe2 Link Speed Use this feature to select the link speed for the PCIe port.
  • Page 97 Chapter 6: UEFI BIOS The options are Distinct and Common. If this item is set to Distinct, this component and the component at the opposite end of the Link are operating with separate refer- ence clock sources. If this item is set to Common, this component and the component at the opposite end of the Link are operating with a common clock source.
  • Page 98 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual PCI-E Port Clocking The options are Distinct and Common. If this item is set to Distinct, this component and the component at the opposite end of the Link are operating with separate refer- ence clock sources. If this item is set to Common, this component and the component at the opposite end of the Link are operating with a common clock source.
  • Page 99 Chapter 6: UEFI BIOS PCI-E Port Link Status PCI-E Port Link Max PCI-E Port Link Speed PCI-E Port Clocking The options are Distinct and Common. If this item is set to Distinct, this component and the component at the opposite end of the Link are operating with separate refer- ence clock sources.
  • Page 100 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual (Intel® IO Acceleration) IOAT Configuration  Disable TPH Select Yes to deactivate TLP Processing Hint support. The options are No and Yes. Prioritize TPH Use this feature to enable the prioritize TPH support. The options are Enable and Disable.
  • Page 101 Chapter 6: UEFI BIOS Posted Interrupt Use this feature to enable VT_D posted interrupt. The options are Enable and Disable. Coherency Support (Non-Isoch) Select Enable for the Non-Iscoh VT-d engine to pass through DMA (Direct Memory Access) to enhance system performance. The options are Enable and Disable. ...
  • Page 102 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Hot Plug Capable (Available when the device is detected by the system) Use this feature to enable the hot plug support for PCIe root ports 1A~1D. The op- tions are Disable and Enable. Intel® VMD for Volume Management Device on CPU2 ...
  • Page 103 Chapter 6: UEFI BIOS VMD Config for PStack2 Intel® VMD for Volume Management Device Select Enable to use the Intel® Volume Management Device Technology for this stack. The options are Disable and Enable. *If the item above "Intel® VMD for Volume Management Device" is set to Enable, the following items will be displayed: CPU2 SLOT2 PCI-E 3.0 x16 VMD (Available when the device is detected by the system)
  • Page 104 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.
  • Page 105 Chapter 6: UEFI BIOS *If the item above "Configure SATA as" is set to AHCI, the following items will be displayed: SATA Port 0~ Port 3 This item displays the information detected on the installed SATA drive on the particular SATA port.
  • Page 106 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual SATA Port 0~ Port 3 This item displays the information detected on the installed SATA drive on the particular SATA port. • Model number of drive and capacity • Software Preserve Support Hot Plug (SATA Port 0~ Port 3) Select Enabled to enable a SATA port specified by the user.
  • Page 107 Chapter 6: UEFI BIOS Maximum Read Request Select Auto to allow the system BIOS to automatically set the maximum read request size for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. MMCFG Base Use this feature to select the default value for the PCI MMIO (Memory-Mapped IO) base address.
  • Page 108 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual  Network Stack Configuration Network Stack Select Enabled to enable UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Disabled and Enabled. *If the item above "Network Stack" is set to Enabled, the following items will be...
  • Page 109 Chapter 6: UEFI BIOS Device Settings This item displays the status of a serial part specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address.
  • Page 110 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 111 Chapter 6: UEFI BIOS Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled. *If the item above is set to Enabled, the following items will become available for user's configuration: Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the...
  • Page 112 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 113 Chapter 6: UEFI BIOS Console Redirection Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled. *If the item above is set to Enabled, the following items will become available for user's configuration: Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the...
  • Page 114 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual ACPI Settings NUMA (Available when the OS supports this feature) Select Enabled to enable Non-Uniform Memory Access support to enhance system performance. The options are Disabled and Enabled. WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and...
  • Page 115 Chapter 6: UEFI BIOS Pending operation Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear. Platform Hierarchy Use this item to disable or enable platform hierarchy for platform protection.
  • Page 116 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Intel® Virtual RAID on CPU (refer to Appendix E for more  information) This submenu displays the information of the Intel® VMD controllers as detected by the BIOS.

  • Page 117: Event Logs

    Chapter 6: UEFI BIOS 6.4 Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 118 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual When Log is Full Select Erase Immediately for all messages to be automatically erased from the event log when the event log memory is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled.

  • Page 119: Ipmi

    Chapter 6: UEFI BIOS 6.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. When you select this submenu and press the <Enter> key, the following information will display: • IPMI Firmware Revision: This feature indicates the IPMI firmware revision used in your system.
  • Page 120 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot.
  • Page 121 Chapter 6: UEFI BIOS • Gateway IP Address: This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). • VLAN: Select Enabled to enable IPMI VLAN support. The options are Enabled and Dis- abled.

  • Page 122: Security Settings

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 6.6 Security Settings This menu allows the user to configure the following security settings for the system. Administrator Password Press Enter to set the user password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.
  • Page 123 Chapter 6: UEFI BIOS Secure Boot This feature is available when the platform key (PK) is pre-registered where the platform operates in the user mode and compatibility support module (CSM) support is disabled in the BIOS Setup utility. Select Enabled for secure boot flow control. The options are Disabled and Enabled.
  • Page 124 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Platform Key (PK)  The Platform Key (PK), which is pre-installed in firmware during manufacturing, provides full control of the secure boot key hierarchy. The options are Save to File, Set New, and Erase. ...

  • Page 125: Boot Settings

    Chapter 6: UEFI BIOS 6.7 Boot Settings Use this feature to configure Boot Settings: Use this feature to configure Boot Settings: Boot mode select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL.
  • Page 126 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual • Legacy/UEFI/Dual Boot Order #3 • Legacy/UEFI/Dual Boot Order #4 • Legacy/UEFI/Dual Boot Order #5 • Legacy/UEFI/Dual Boot Order #6 • Legacy/UEFI/Dual Boot Order #7 • Legacy/UEFI/Dual Boot Order #8 • UEFI/Dual Boot Order #9 •...
  • Page 127 Chapter 6: UEFI BIOS Boot Option #1 The options are (the available hard disk drive) and Disabled. Network Drive BBS Priorities  This feature allows the user to specify which available network drives are boot devices. Boot Option #1 The options are IBA XE Slot 0100 v2398 and Disabled. ...

  • Page 128: Save & Exit

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 6.8 Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 129 Chapter 6: UEFI BIOS Discard Changes Select this option and press <Enter> to discard all the changes and return to the AMI BIOS utility Program. Listed on this section are other boot options for the system (i.e., Built-in EFI shell). Select an option and press <Enter>.

  • Page 130: Appendix A Bios Error Codes

    SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual Appendix A BIOS Error Codes A.1 BIOS Error POST (Beep) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 131 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 132: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 133 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 134 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 135 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 136 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 137 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 138 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 139 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 140 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 141 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 142 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 143 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 144 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 145 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 146 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 147 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 148 SuperStorageServer SSG-6049P-E1CR60H/L/L+ User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 149 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 150 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 151 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 152: Appendix C System Specifications

    SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Appendix C System Specifications Processors Supports Dual Intel Xeon 81xx/61xx/51xx/41xx/31xx series or 82xx/62xx/52xx/42xx/32xx series processors (Socket P) processors, which offer three Intel® UltraPath Interconnect (UPI) of up to 10.4 GT/s. Note: Please refer to the motherboard specifications pages on our website for updates to supported processors.
  • Page 153 Appendix C: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) Other: VCCI-CISPR 32 and AS/NZS CISPR 32 Environmental: Directive 2011/65/EU, Delegated Directive (EU) 2015/863 and Directive 2012/19/EU...

  • Page 154: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 155 Note: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www. supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 156 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 4. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update"...
  • Page 157 Appendix D: UEFI BIOS Recovery 7. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell].
  • Page 158 SuperStorage Server SSG-6049P-E1CR60H/L/L+ User's Manual 9. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

This manual is also suitable for:

Superstorage server ssg-6049p-e1cr60l

Table of Contents
