INSTALLATION: MERCHANDISER SET-UP / ELECTRICAL SET-UP

1. Merchandiser Set-Up
• Remove the rear lower grille.
• Ensure that the manufacturer provided
hot gas evaporator pan is installed under
the condensate drain.
• Ensure that overflow evaporator pan is
plugged into the receptacle inside base.
• Reinstall the rear grille after confirming
the above.
2. Electrical Set-Up
• With Power Cord:
• For your safety, equipment is
furnished with a properly
grounded cord connector.
Do not attempt to defeat the
grounded connector!
• Plug cord into certified electrical outlet
with ground. See Overview/Warnings
sheet for more specifics.
• Without Power Cord:
Note: Servicing to be accomplished by
certified electrical contractor.
• Electrical Leads
• Remove cover from the left lower
rear of the unit.
• Electrical leads connections are
provided in the junction box.
Plug

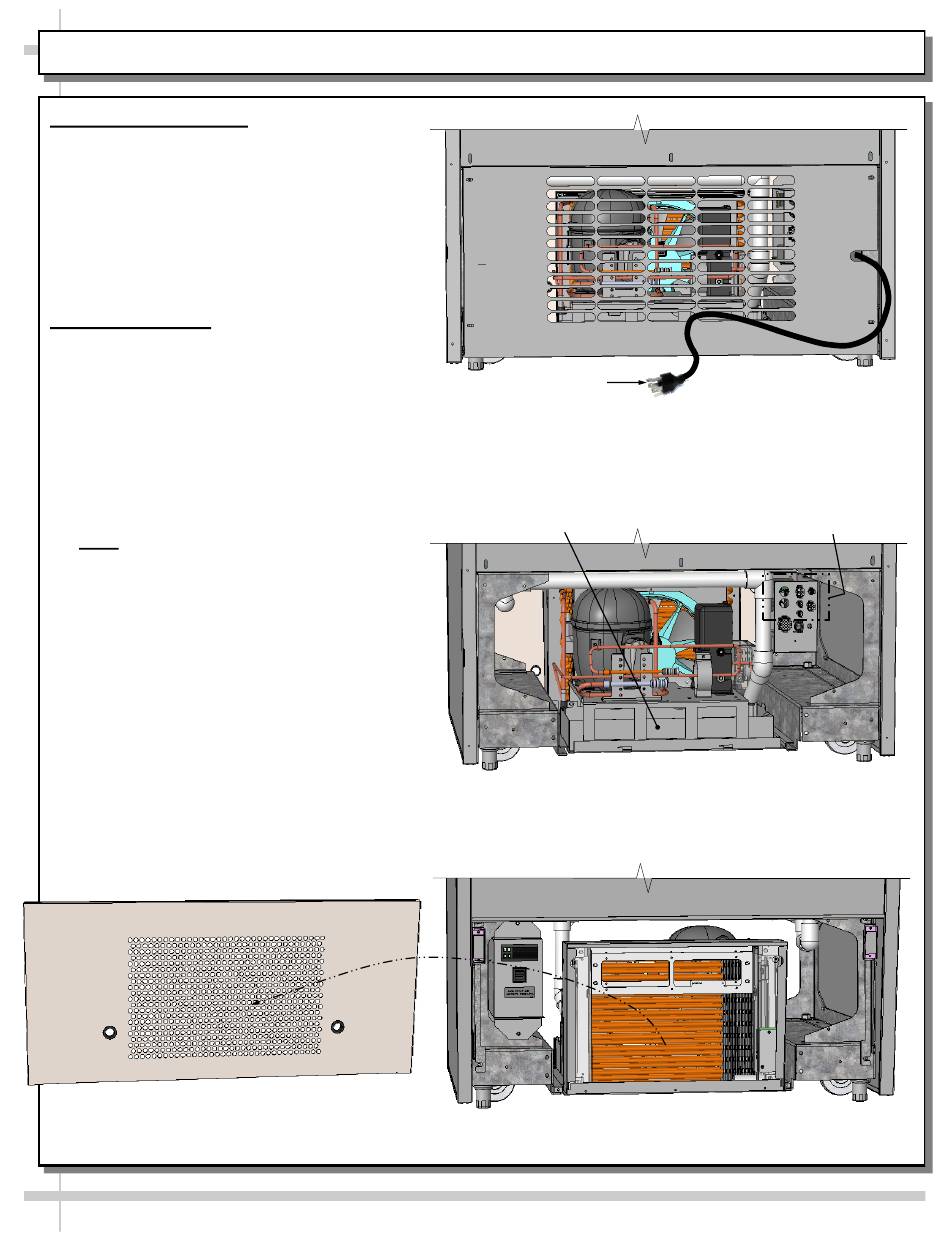

Rear Refrigeration Access After Rear Grille Removed
(Model HECO37R Shown. Your Unit May Not Reflect
Every Feature Or Option Of Your Particular Case)
Hot Gas
Condensate Pan
Rear Refrigeration Access After Rear Grille Removed
(Model HECO37R Shown. Your Unit May Not Reflect
Every Feature Or Option Of Your Particular Case)
Front Refrigeration Access After Front Grille Removed
(Model HECO37R Shown Above)
6
Electrical Leads
(If No Power Cord)
