MAINTENANCE FUNDAMENTALS, CONT'D: SHELF ASSEMBLY / SHELVES / LIGHTS / FAN SWITCH
1. Shelf Assembly Removal
Shelves can be removed for maintenance,
cleaning or adjustments
Slide shelf back about 1/8 inch and rotate front up
while lifting shelf assembly.
For lighted shelving, unplug the light cord.
Slide light assembly back about 1/8 inch and
rotate front up while lifting light assembly.
Remove brackets. Note it may be necessary
to remove the nylon shipping bracket
retainer. Pliers will be required to
accomplish this task.
2. Adjustable Shelves
Adjustment of the angle of the shelf can be
made, not the position.
Adjustments to the shelves can be made by
pivoting the lower portion of the shelf bracket
in the upright.
The shelves can be adjusted to an angle of:
0, 5, and 10 degrees.
3. LED Light Fixtures
LED light fixtures are located on the underside of
each shelf assembly and at the top inside of case.
See MAINTENANCE FUNDAMENTALS:
LED LIGHT FIXTURES section in manual.
4. Anti-Condensation Fan Switch
Anti-condensation fans prevent condensation
from forming on roll-down security door.

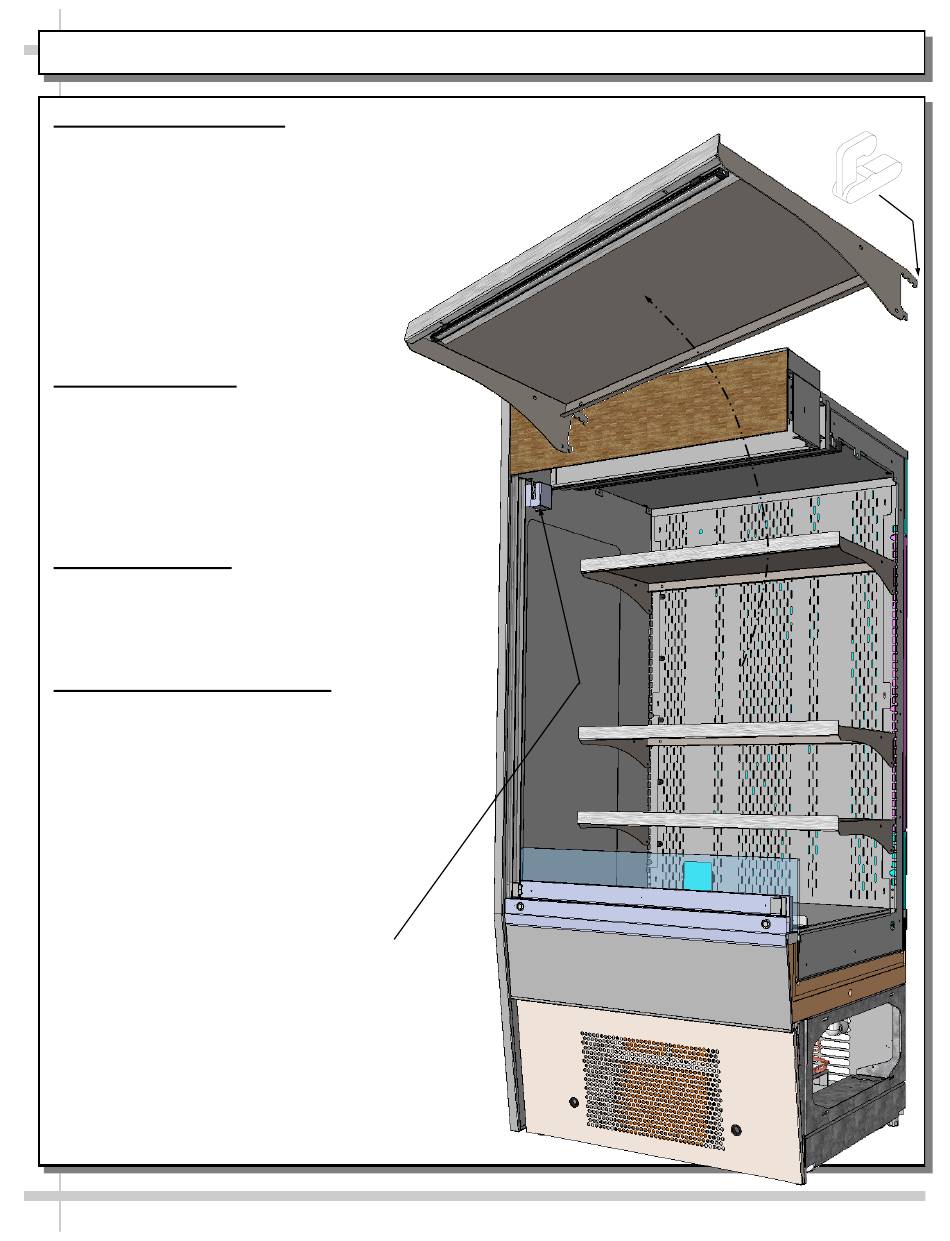

See illustration at right.
Anti-Condensation
Fan Switch
13
Bracket Retainer
