CASE REMOVAL FROM SKID (LEVELERS/CASTERS)

1. Removing Case Shipping Brackets That Are Attached To Skid
• Remove screws holding Case Shipping Brackets to skid.
• Remove Case Shipping Brackets from Skid.
• See illustrations below. Note: Shipping Brackets will vary in size, shape, material and location
depending upon case type and model.
2. Removing Case From Skid
A. Place ramp up against skid (to allow case to
smoothly slide off from skid).
B. Maintain support of case at all times or center of
gravity may cause case to fall.
C. Slide unit to rear of skid. Slide down ramp and
off from skid.
D. After case is in proper position, lower levelers (by
rotating counter-clockwise) so casters are raised
off floor until case is securely in place.
E. To relocate case, raise levelers (by rotating
clockwise) so casters are lowered onto floor and
unit can be easily moved.

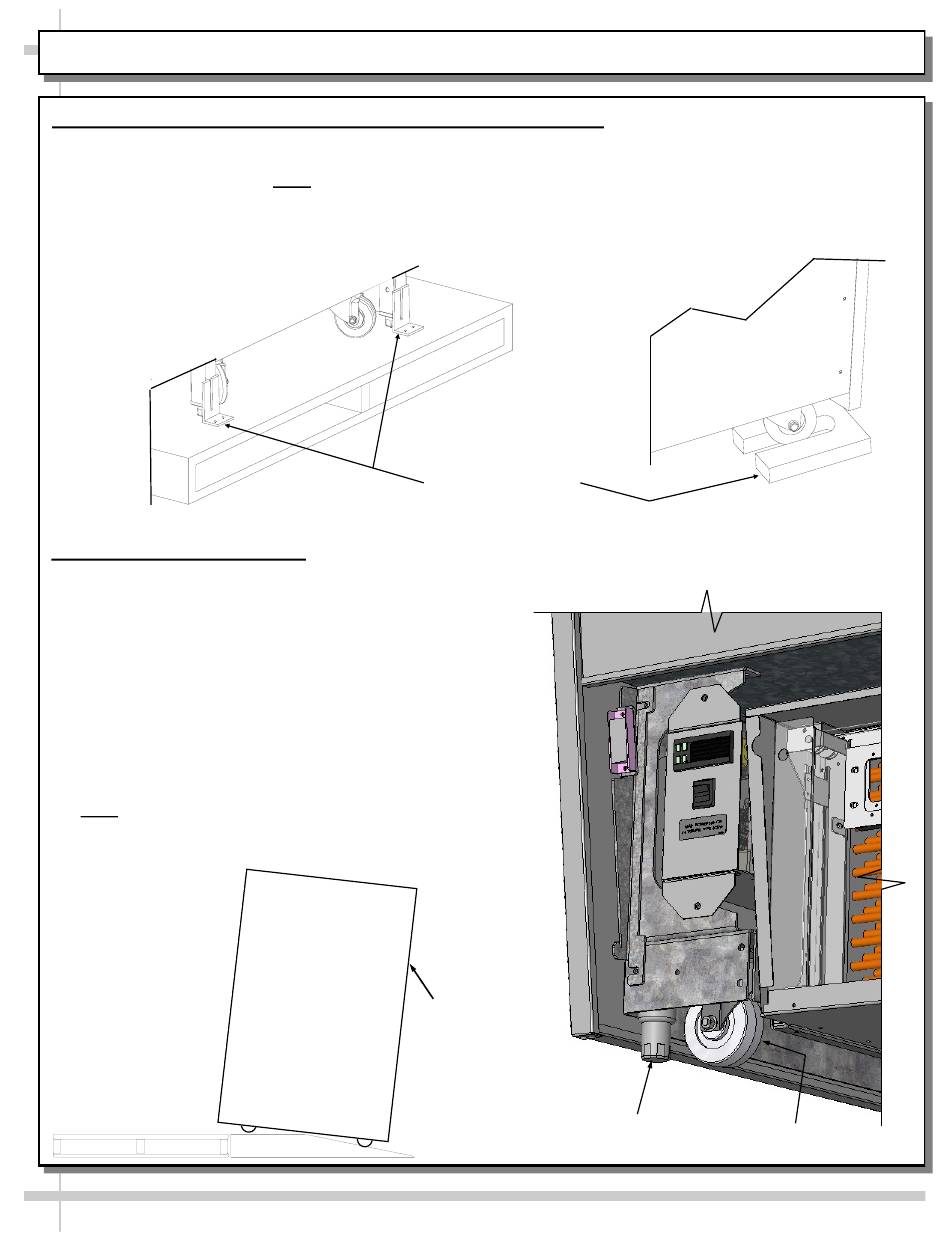

• Note: Illustration below reflects general outline of
sample case and may not reflect your particular
model or options).
Support
case
while
sliding
down
ramp.
Ramp
Various Types Of
Case Shipping
Brackets
Leveler (Typ.)
5
Caster (Typ.)
