CONDENSER PACKAGE LAYOUT: MODELS HECO67R ONLY

Typical Configurations, Continued
• Note: Unit shown below is for Model HECO67R only. Your model's condenser package layout may vary.
• Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
• Access: Remove front grille by lifting up and off (no screw removal is required). Slide out.

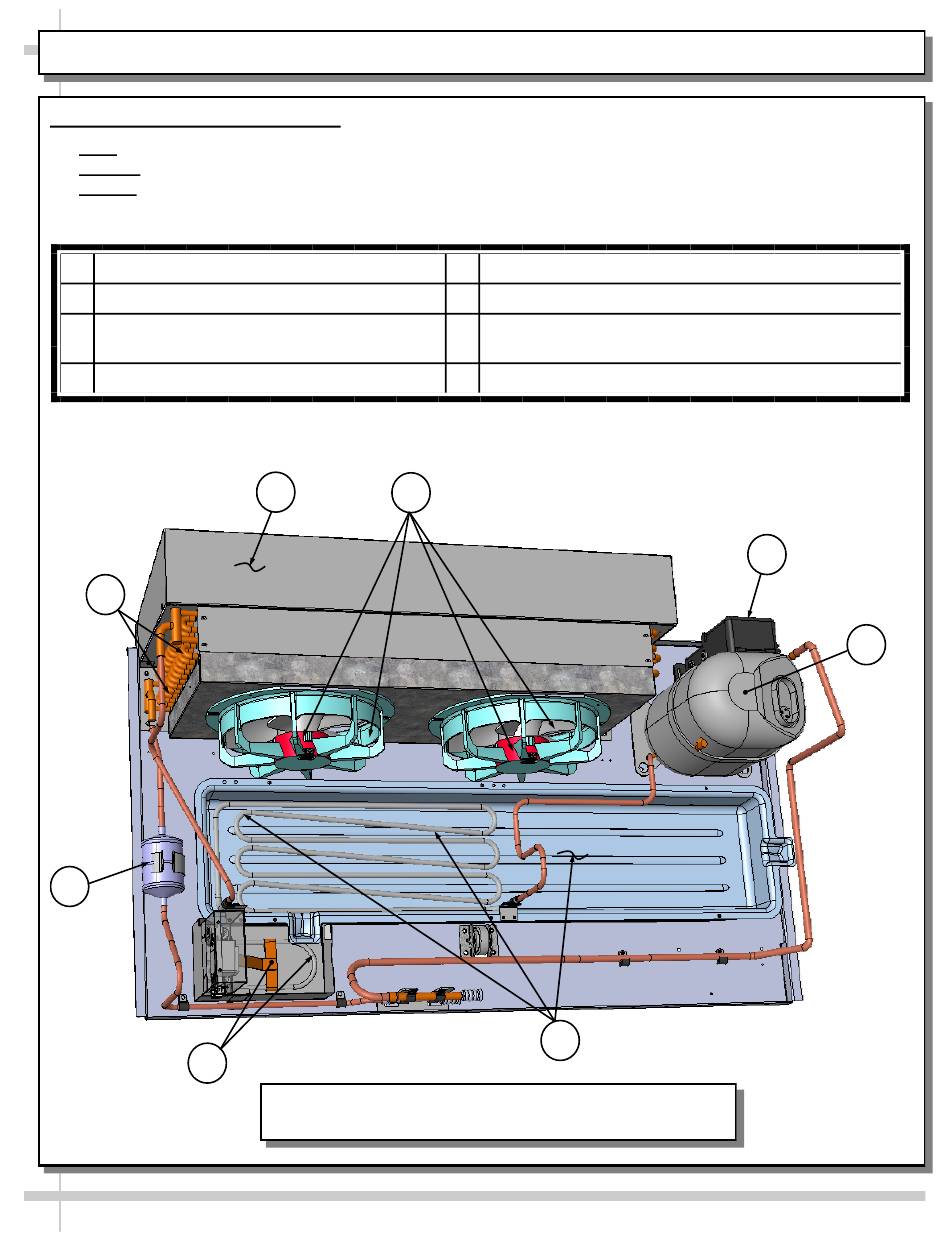

1 Embraco® Compressor Start Components
2 Refrigeration Pump
Hot Gas Condensate Pan & Serpentine
3
Rods
4 Electrical Coil Overflow Condensate Pan
6
5
4
7 8
EnergyWise Refrigeration Package for Model HECO67R Is
Shown. See Accompanying Sheets for Other Designs.
5 Filter / Drier
6 Condenser Coil Tubing
Condenser Coil Shroud (Optional: May Include
7
Clean Sweep™ Automatic Condenser Coil Cleaner)
8 Fan Motors & Fan Shroud
3
19
1
2
